Inside Rearview Mirror Replacement

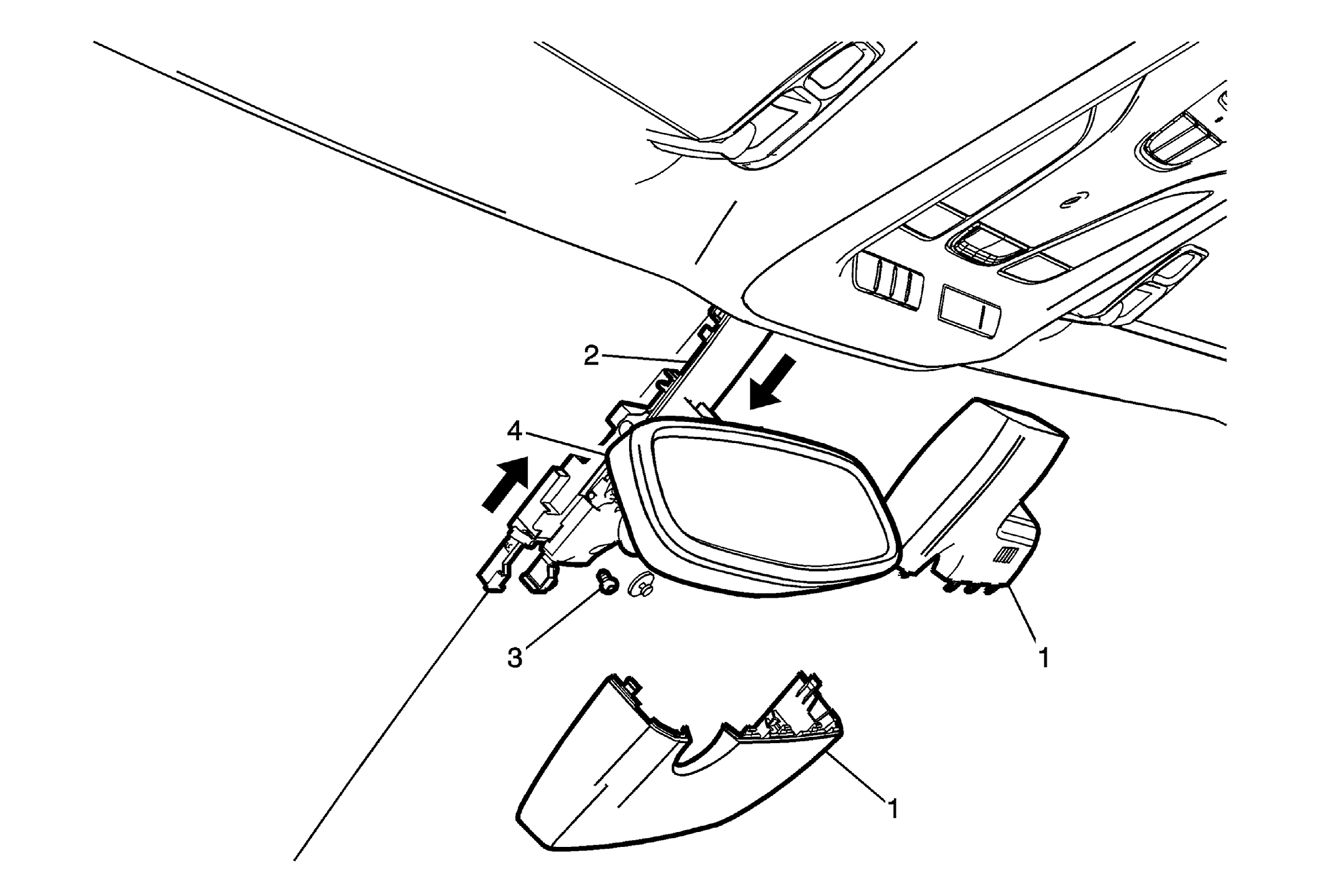

Fig 1: Inside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Windshield Multifunction Sensor Mount Bracket Cover. Procedure Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement , and Windshield Multifunction Sensor Mount Bracket Lower Cover Replacement .
2	Rearview Mirror Wiring Harness Cover
3	Inside Rearview Mirror Set Screw CAUTION: Refer to Fastener Caution . Procedure Adjust the mirror to the full upward position. Loosen the set screw located at the base of the mirror. Disconnect the electrical connector. Slide the mirror upward off of the rearview mirror button. Tighten 2 N.m (18 lb in)
4	Inside Rearview Mirror
