Theft Deterrent Module Replacement (Without BTM)

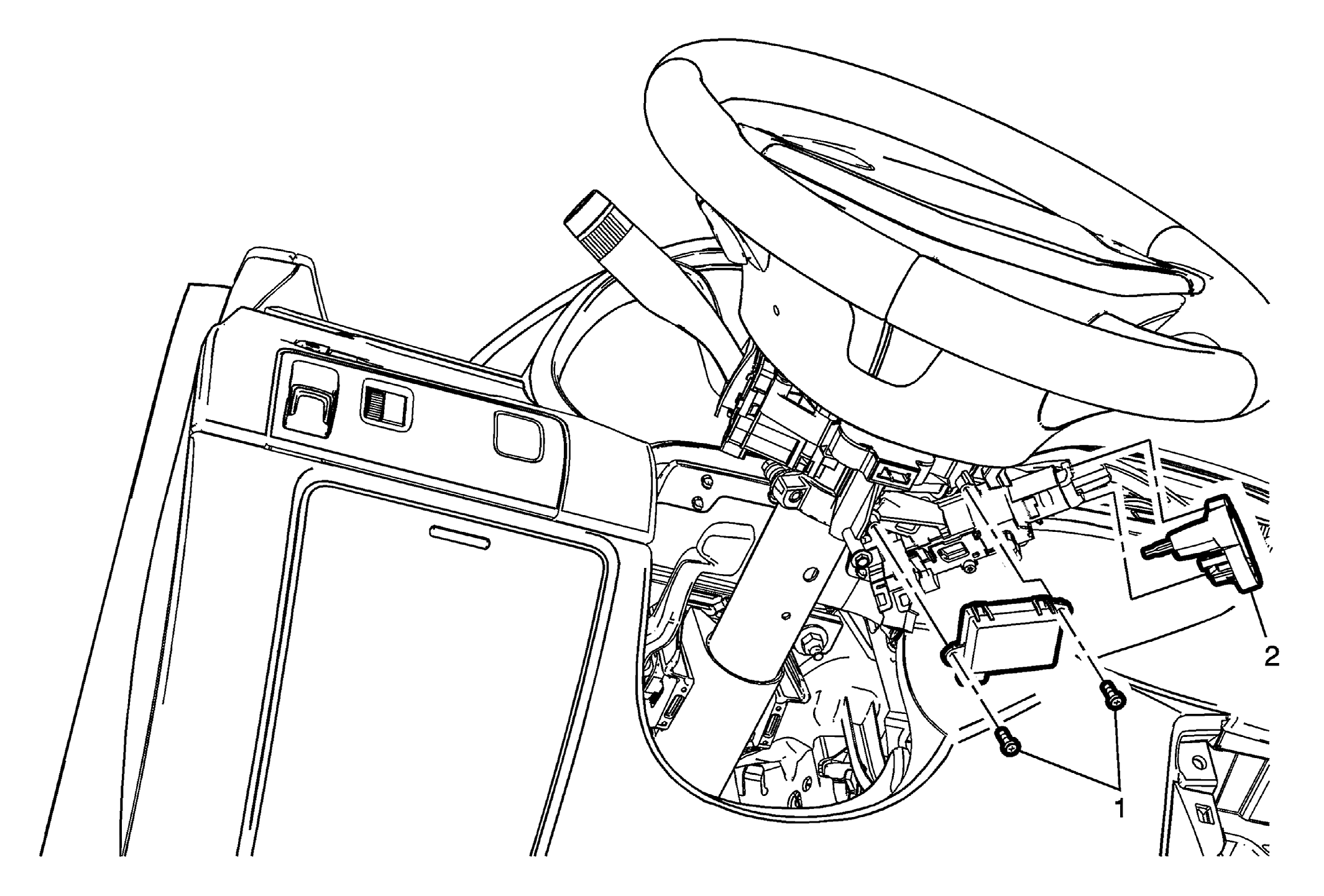

Fig 1: Theft Deterrent Module (Without BTM)
GM2917411Courtesy of GENERAL MOTORS COMPANY
Theft Deterrent Module Replacement (Without BTM)

Callout Component Name
Preliminary Procedure
Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement (N38) , Steering Column Lower Trim Cover Replacement (N37) .
1 Theft Deterrent Module Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Theft Deterrent Module

Procedure

  1. Disconnect the electrical connector.
  2. Slide the module up to remove from the ignition cylinder.
  3. Refer to Control Module References for programming and set up procedures.
