Wireless Communication Interface Antenna Replacement

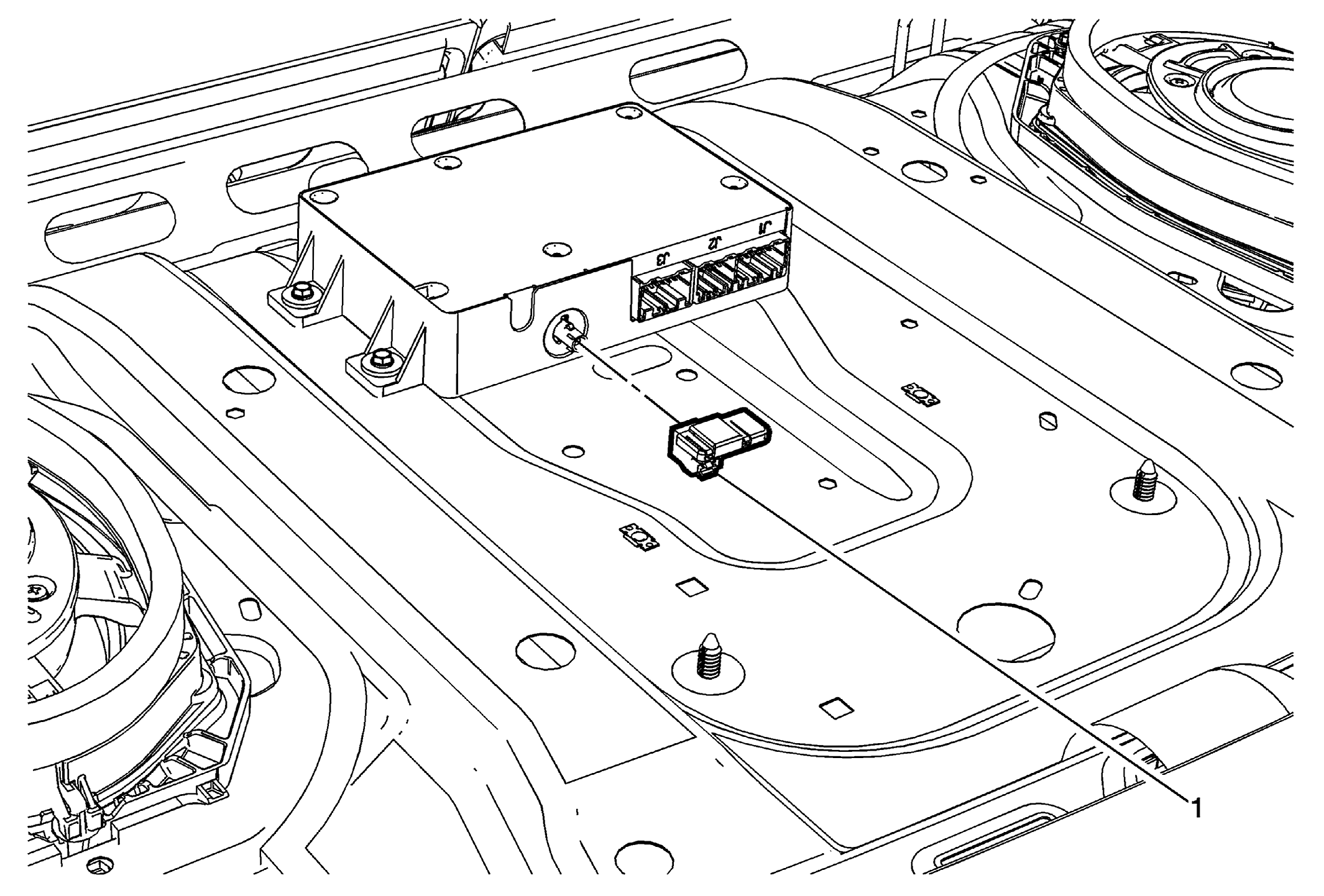

Fig 1: Wireless Communication Interface Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (Without HP6) , Rear Window Panel Trim Replacement (With HP6) . Remove the rear window panel trim insulator, if equipped.
1	Wireless Communication Interface Antenna Procedure Unsnap the antenna from the communication interface module.

Callout

Component Name

Preliminary Procedure

Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (Without HP6) , Rear Window Panel Trim Replacement (With HP6) .
Remove the rear window panel trim insulator, if equipped.

Wireless Communication Interface Antenna
Procedure
Unsnap the antenna from the communication interface module.
