Radio Replacement

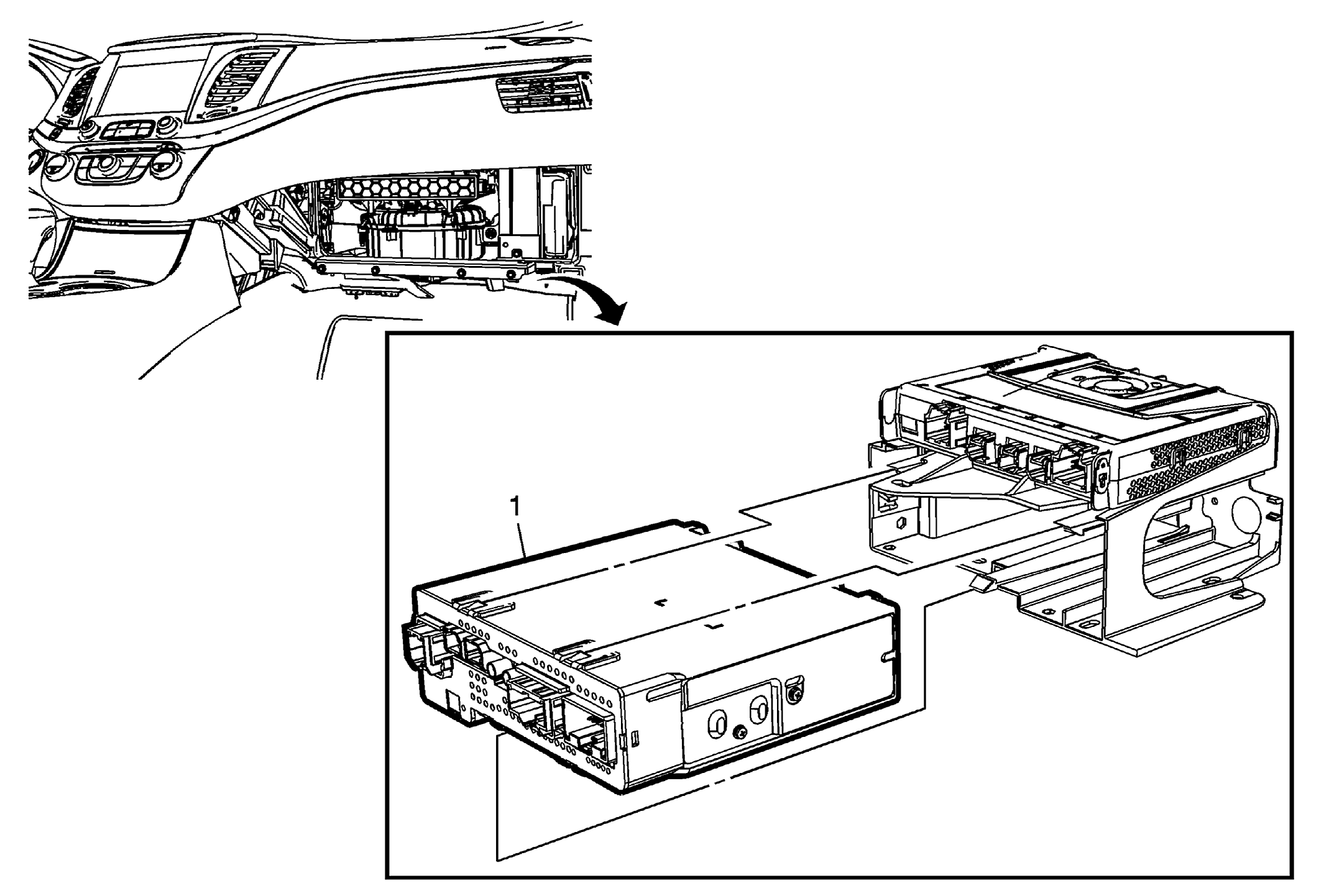

Fig 1: Radio
GM2913576Courtesy of GENERAL MOTORS COMPANY
Radio Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
  2. Remove the instrument panel insulator panel - right side. Refer to Instrument Panel Insulator Replacement - Right Side .
1 Radio

Procedure

  1. Release the two harness retainers attached to the radio bracket.
  2. Disconnect the electrical connections.
  3. Slide module downward to release from bracket.
  4. Refer to Control Module References for programming and setup information.
