Radio Control Switch Replacement - Rear

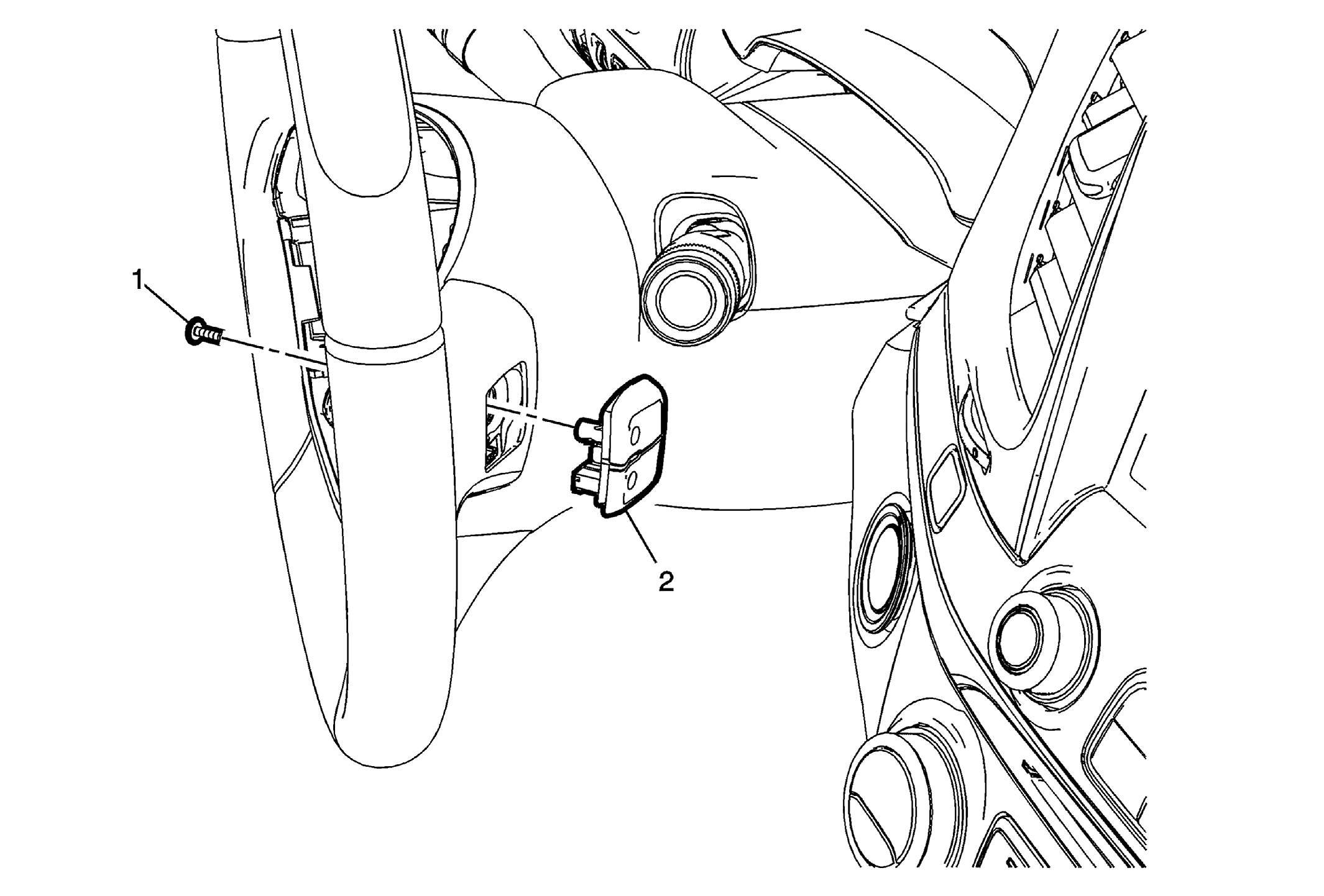

Fig 1: Radio Control Switch - Rear
GM3516880Courtesy of GENERAL MOTORS COMPANY
Radio Control Switch Replacement - Rear

Callout Component Name
Preliminary Procedure
Remove the steering wheel airbag. Refer to Steering Wheel Airbag Replacement .
1 Radio Control Switch - Rear Fastener
CAUTION:

Refer to Fastener Caution .

2 Radio Control Switch - Rear
Procedure
Disconnect electrical connector.
NOTE:

Right hand switch shown, left hand same.
