Rear Cross Traffic Alert (UFG) and Side Object Detection (UFT)

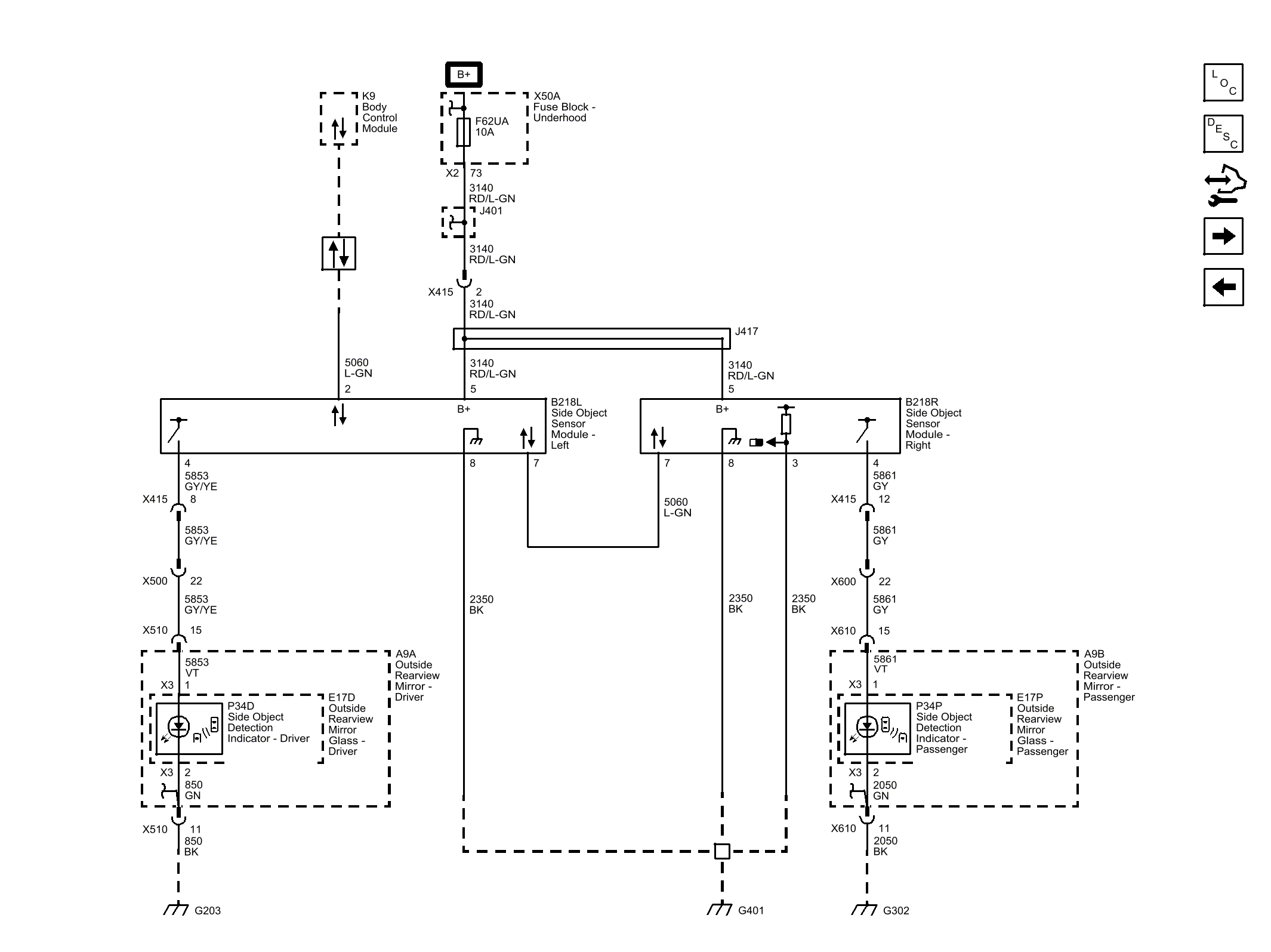

Fig 1: Rear Cross Traffic Alert (UFG) & Side Object Detection Wiring Schematic (UFT)

GM2916852

Courtesy of GENERAL MOTORS COMPANY
