Rearview Camera Description and Operation Block Diagram

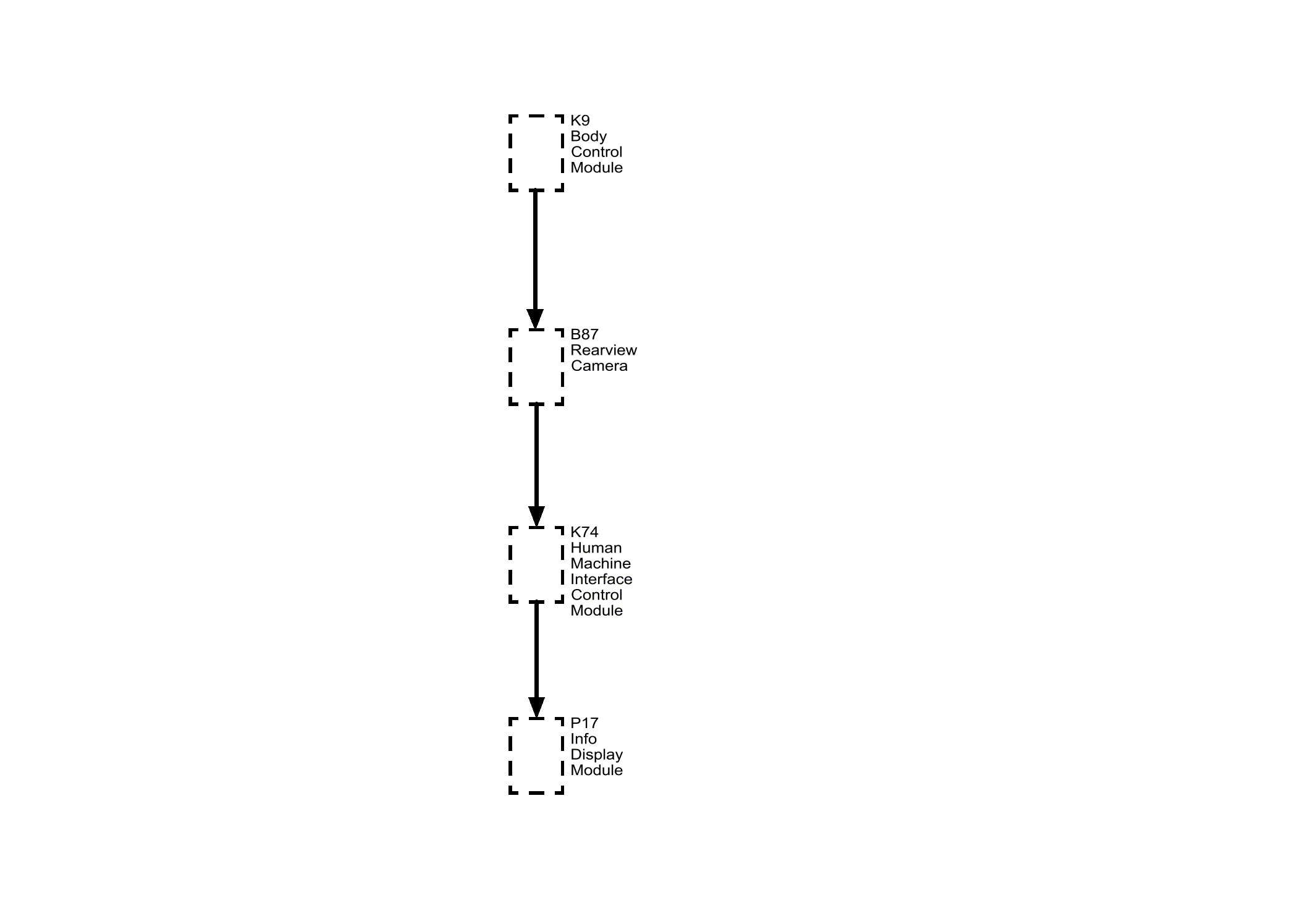

Fig 1: Rearview Camera Block Diagram
GM3329283Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
HW Hard-Wired
HW Hard-Wired
HW Hard-Wired
K9 K9 Body Control Module
B87 B87 Rearview Camera
K74 Human Machine Interface Control Module
P17 P17 Info Display Module
