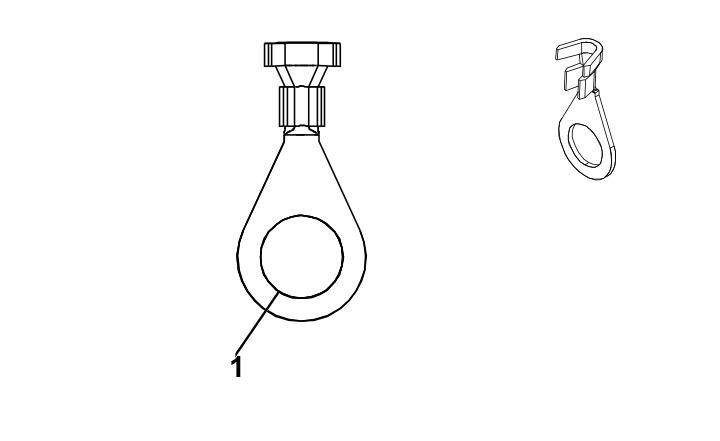

K59 Starter/Generator Control Module X9 (HP6)
|
|
Connector Part Information
- Harness Type: High Voltage Battery Section 2 (-)
- OEM Connector: 12146366
- Service Connector: Service by Harness - See Part Catalog
- Description: Ring Terminal
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
No Tool Required |
No Tool Required |
Not Available |
Not Available |
Not Available |
Not Available |
K59 Starter/Generator Control Module X9 (HP6)
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
13 |
OG |
1 |
High Voltage Battery (-) |
I |
- |
