Audio Amplifier Power, Ground and Serial Data

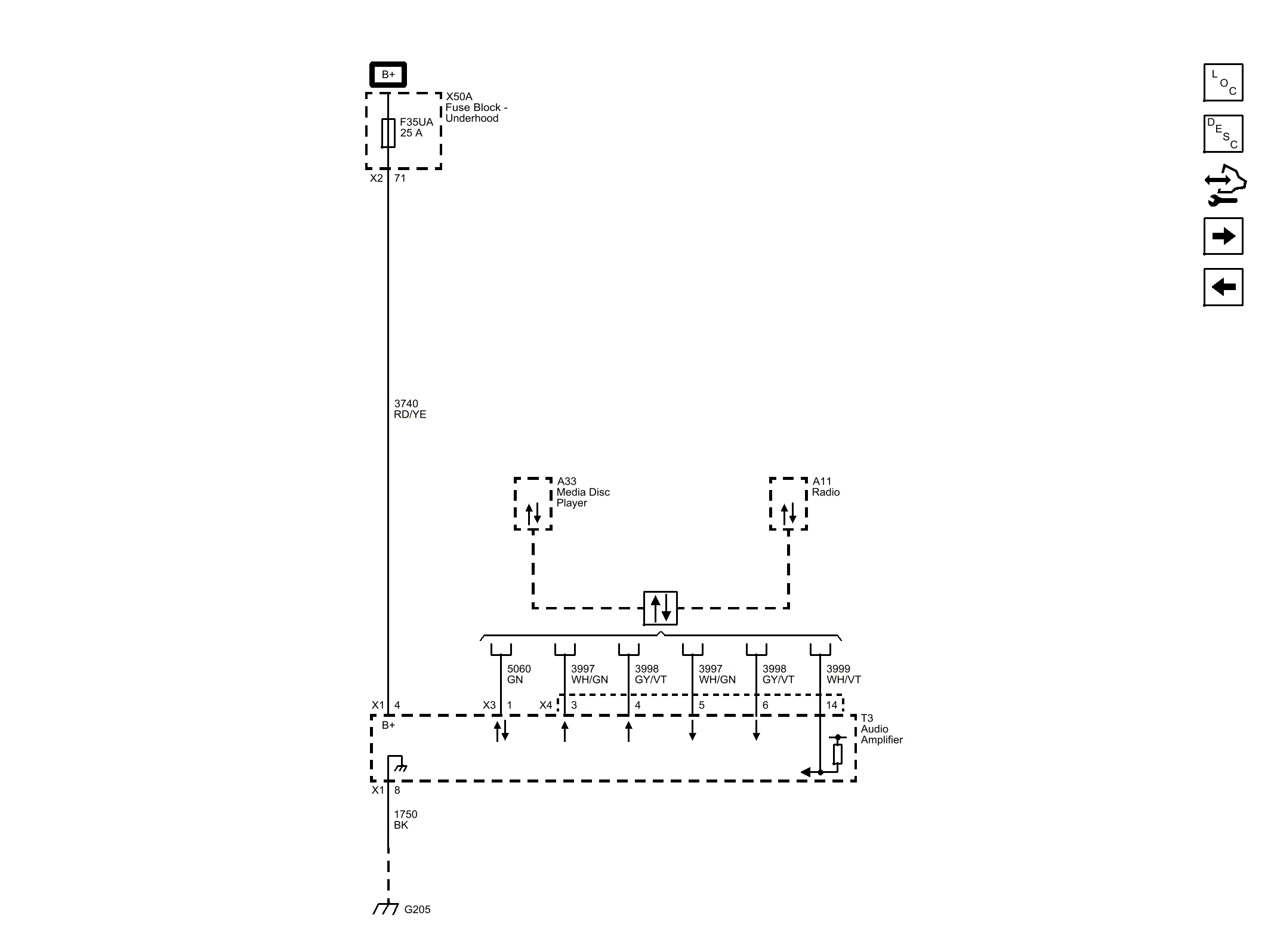

Fig 1: Audio Amplifier Power, Ground and Serial Data Wiring Schematic

GM2916144

Courtesy of GENERAL MOTORS COMPANY
