Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel
Courtesy of GENERAL MOTORS COMPANY Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel
| Callout |
Component Name |
|
Preliminary Procedure
- Remove the front floor console extension - left side. Refer to Front Floor Console Extension Replacement - Left Side
.
- Reposition the front floor panel carpet as - left side. Refer to Front Floor Panel Carpet Replacement - Left Side
.
|
| 1 |

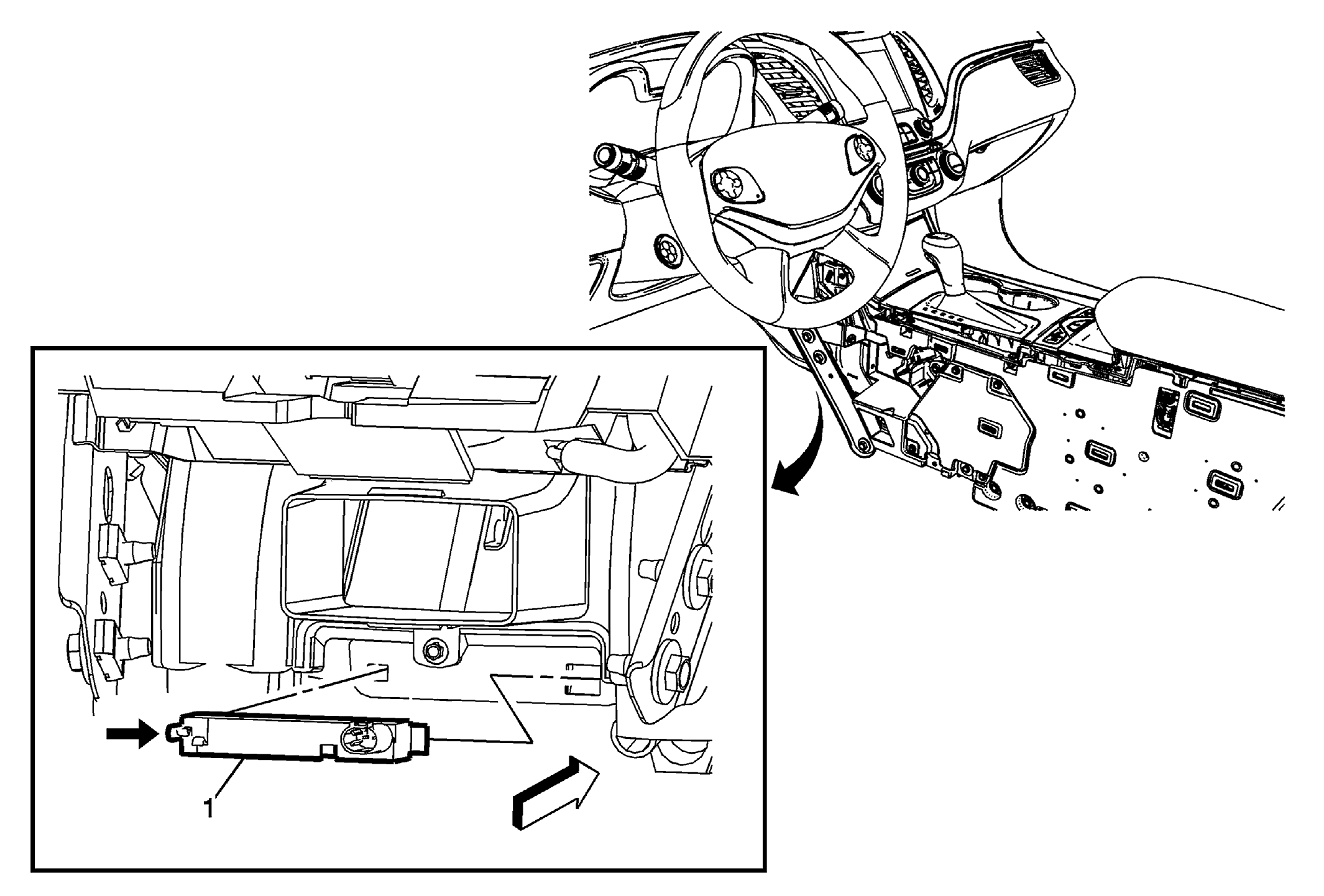

Ignition Lock Key Transmitter Antenna- Instrument Panel Procedure
- Unsnap to release the ignition lock key transmitter antenna.
- Disconnect the electrical connector.
|
