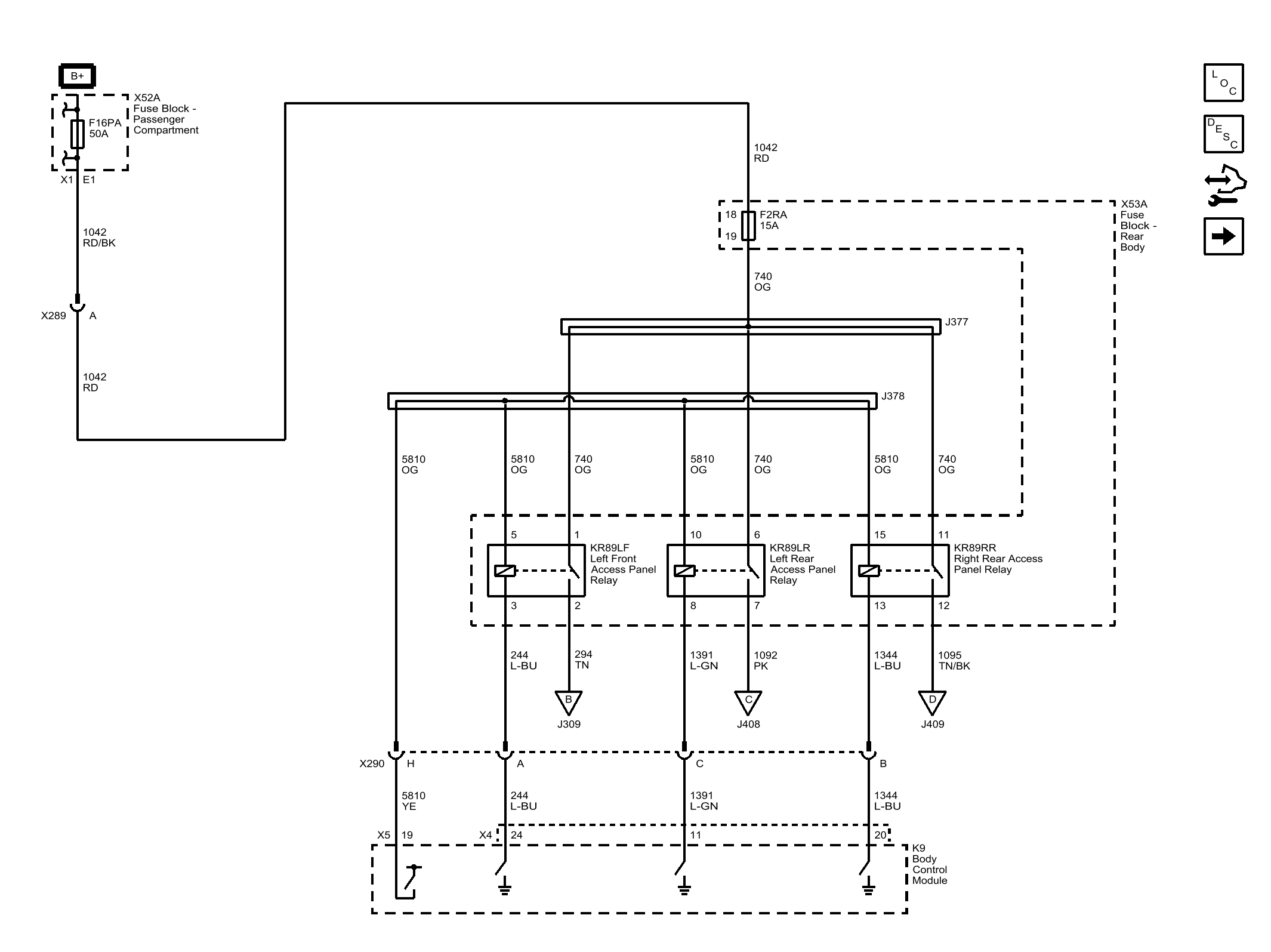

Home >> Chevrolet >> 2014 >> Express 1500 LT, AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Door Lock System And Release Systems >> Schematic Wiring Diagrams >> Release Systems Wiring Schematics >> Access Panel Relay Control
