Installation Procedure

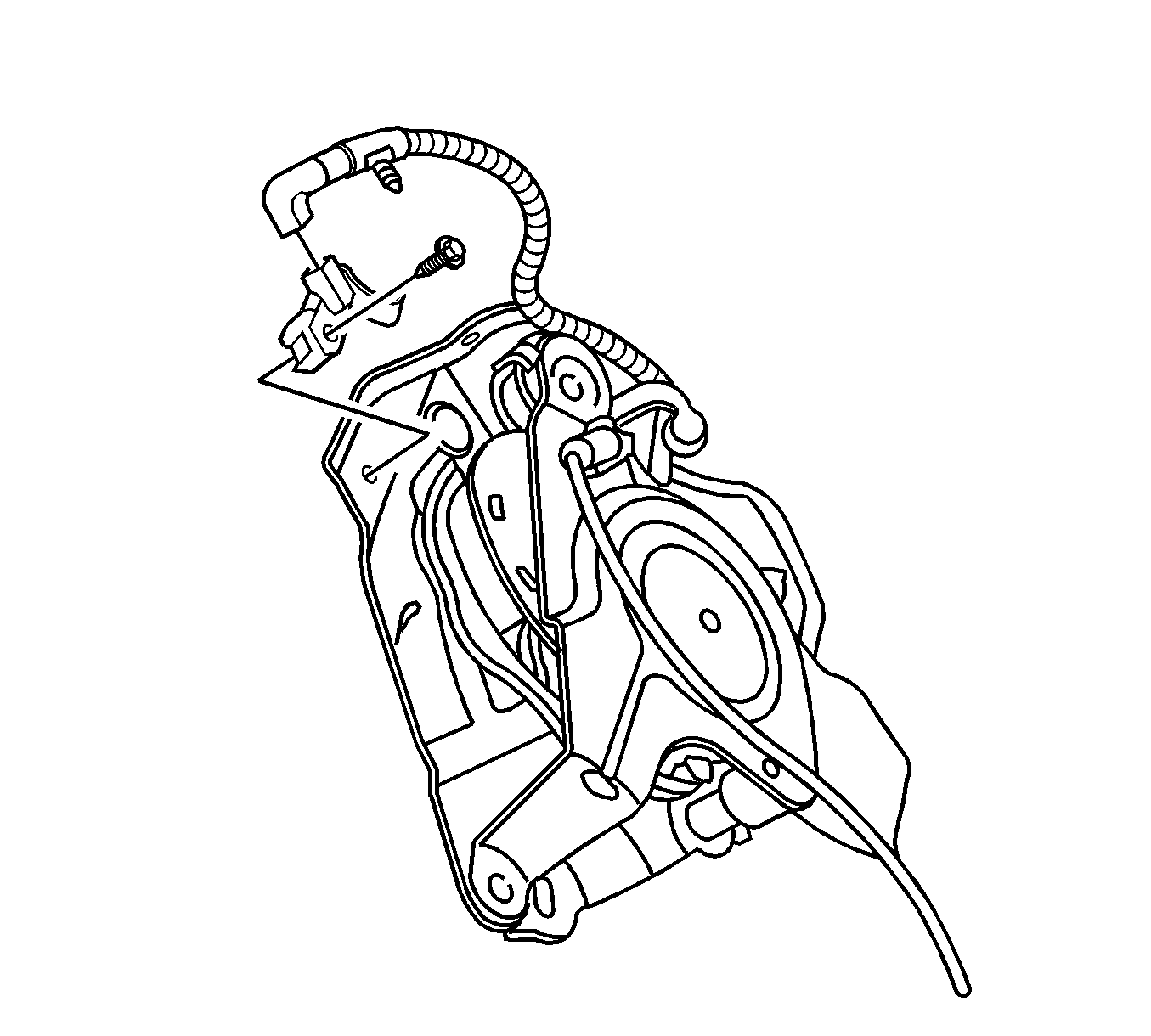

    Fig 1: Park Brake Warning Lamp Switch Screw
    GM1198943Courtesy of GENERAL MOTORS COMPANY
  1. Install the parking brake indicator switch to the parking brake lever pedal assembly.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the parking brake indicator switch bolt and tighten to 4 N.m (35 lb in).
  3. Connect the electrical connector.
  4. Install the parking brake lever pedal assembly. Refer to Parking Brake Lever Pedal Assembly Replacement .
