Intermediate Side Door Lock Replacement

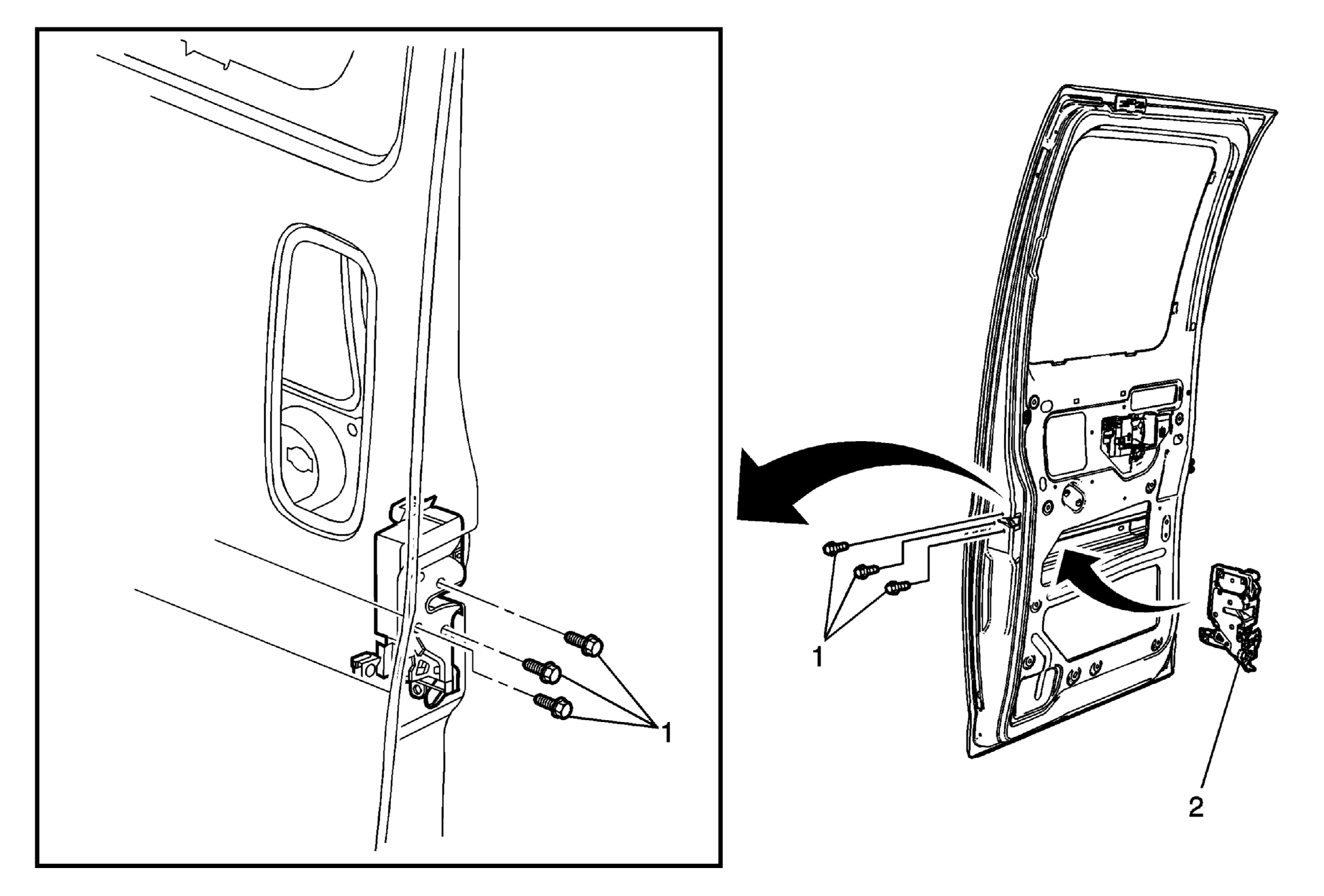

Fig 1: Intermediate Side Door Lock
GM2037250Courtesy of GENERAL MOTORS COMPANY
Intermediate Side Door Lock Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the intermediate side door trim panel. Refer to Rear Side 60/40 Door Trim Panel Replacement - Left Side (E26, 40 Door) , Rear Side 60/40 Door Trim Panel Replacement - Left Side (E26, 60 Door) .
  2. Remove the intermediate side water deflector. Front Side Door Water Deflector Replacement
1 Intermediate Side Door Lock Screws (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Intermediate Side Door Lock

Procedure

  1. Release the door lock cable retainers from the door.
  2. Disconnect the door lock electrical connector.
  3. Remove the handle and lock rods from the lock.
