Front Side Door Lock Replacement

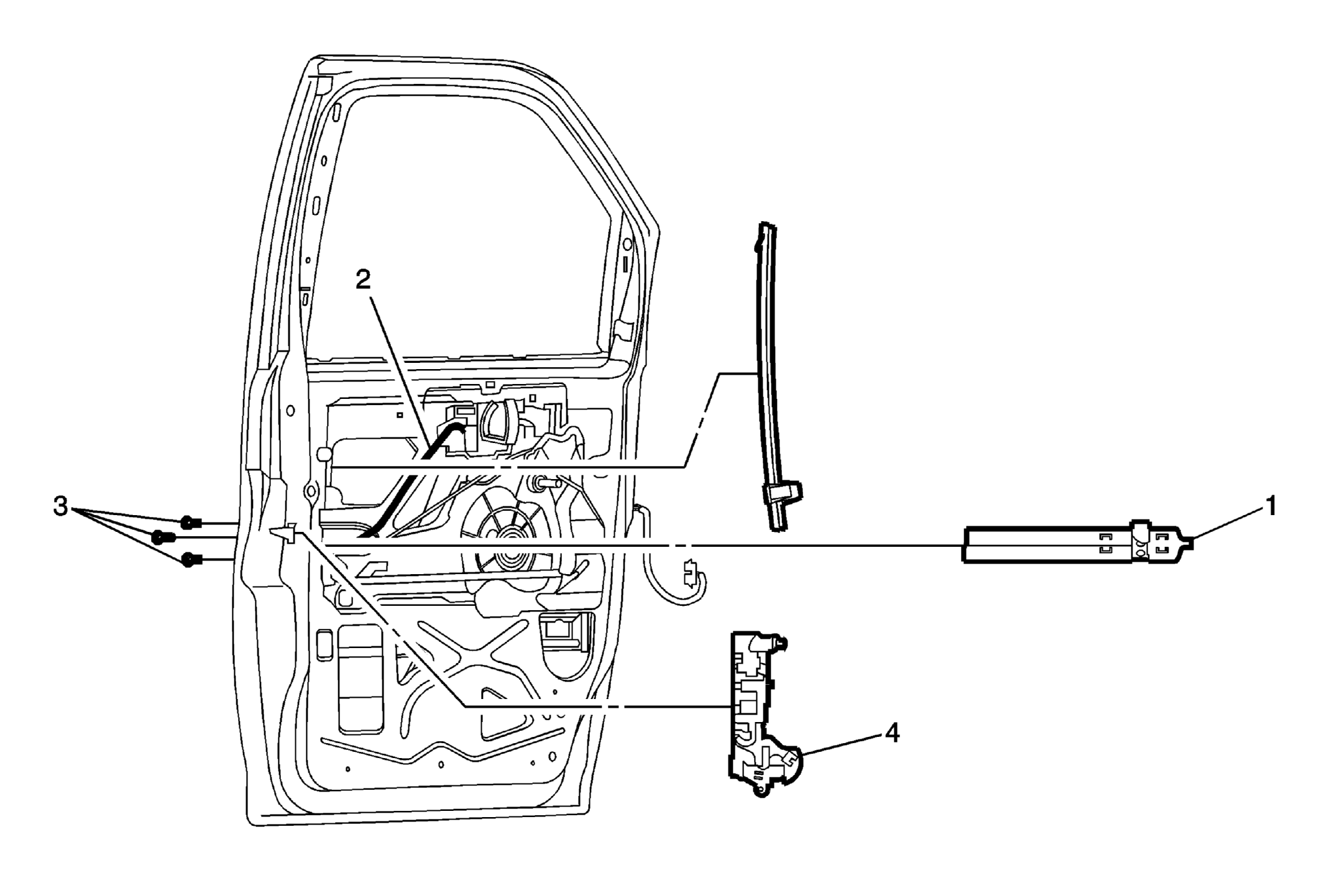

Courtesy of GENERAL MOTORS COMPANY Front Side Door Lock Replacement
| Callout |
Component Name |
|
Preliminary Procedures
- Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement
.
- Remove the front side door window channel. Refer to Front Side Door Window Channel Replacement
.
|
| 1 |
Front Side Door Lock to Module Retainer Procedure
- Place the window in the full up position.
- Remove the water deflector.
- Disconnect the electrical connector from the lock.
|
| 2 |
Front Side Door Outside Handle Rod and Lock Rod
Procedure
Release all rods from the lock before removing. |
| 3 |
Front Side Door Lock Screw (Qty: 3)
Tighten
10 N.m (89 lb in) |
| 4 |
Front Side Door Lock Assembly
- Position the front side door outside handle rod in the retainer in order to eliminate any free play in the outside door handle.
- Adjust the travel of the handle by removing the threaded rod from the retainer.
- Install the retainer cover closed over the threaded front side door outside handle rod.
- Inspect the door lock system for proper operation before installing the trim panel.
|
