Installation Procedure

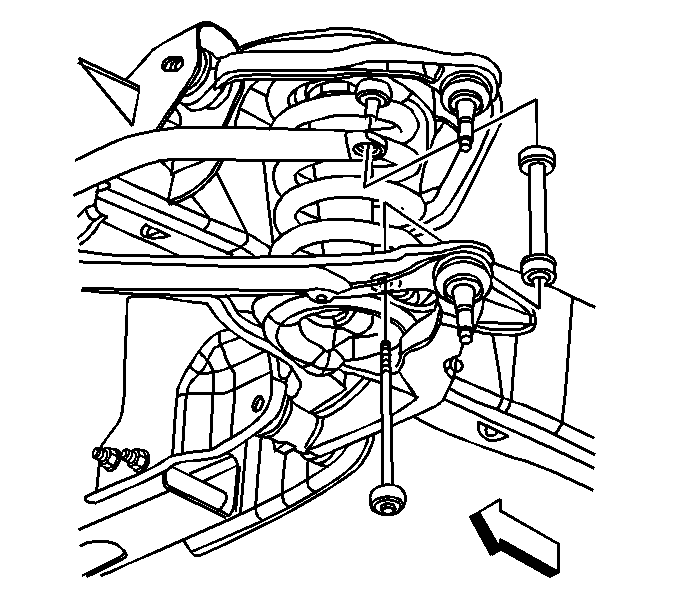

    Fig 1: Stabilizer Shaft, Nut, Link Bolt, Insulators & Spacers
    GM830500Courtesy of GENERAL MOTORS COMPANY
  1. Install the stabilizer shaft link insulators and spacers.
  2. Perform the following procedure before installing the stabilizer shaft link bolts.
    • Remove all traces of the original adhesive patch.
    • Apply Threadlocker GM P/N 12345382 or BLUE LOCTITE™ #242 on the threads of the bolts.
  3. Install the stabilizer shaft link bolts.
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install the stabilizer shaft nut to the link bolt and tighten to 11 N.m (97 lb in).
  5. Remove the safety stands.
  6. Lower the vehicle.
