Removal Procedure

  1. Remove the upper control arm from the vehicle. Refer to Upper Control Arm Replacement .

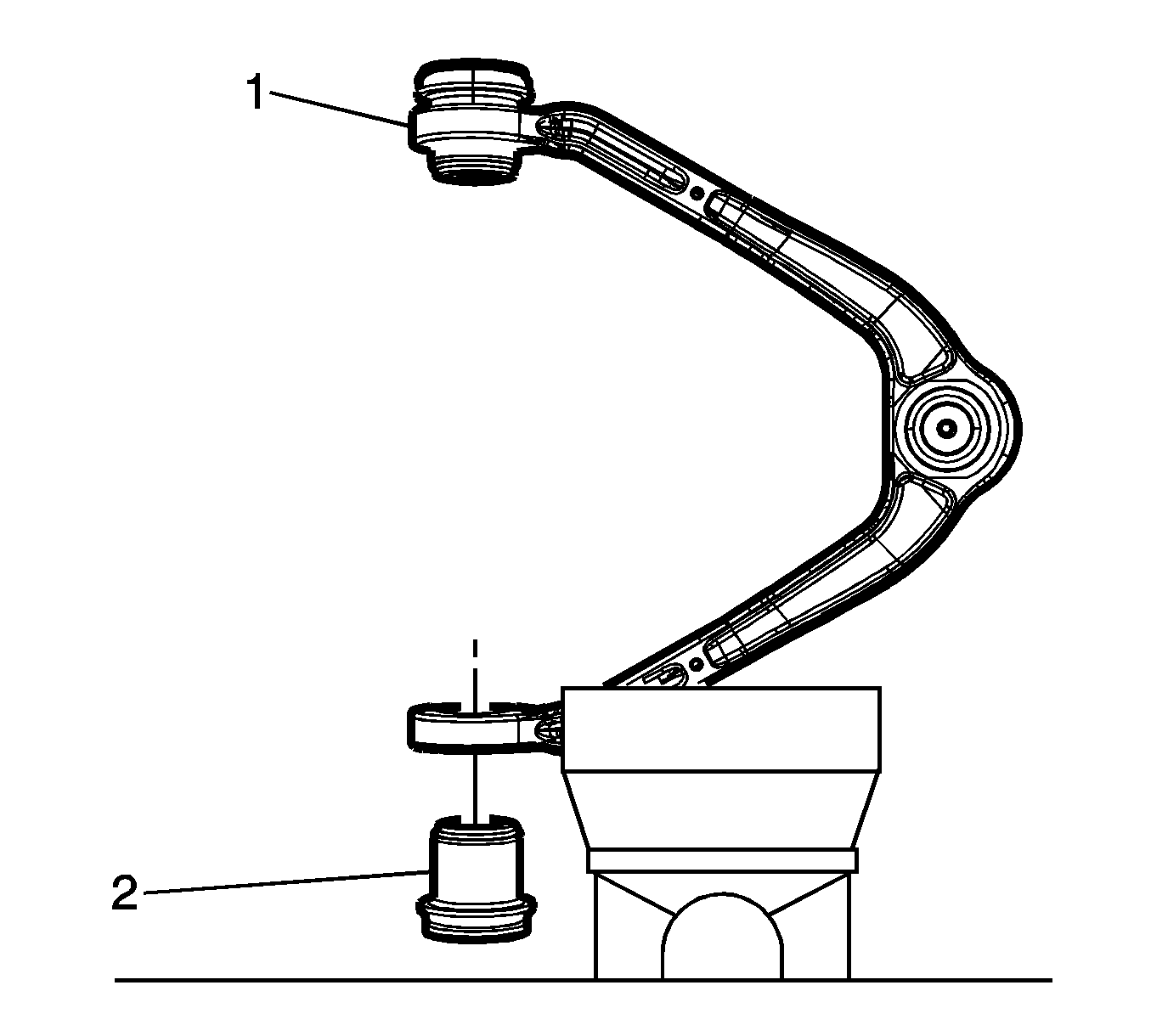

    2. Fig 1: Front Upper Control Arm And Bushing
    GM2755841Courtesy of GENERAL MOTORS COMPANY
  2. Install the upper control arm (1) in a vise.
  3. Using the appropriate tools, remove the upper control arm bushings (2).
