Installation Procedure

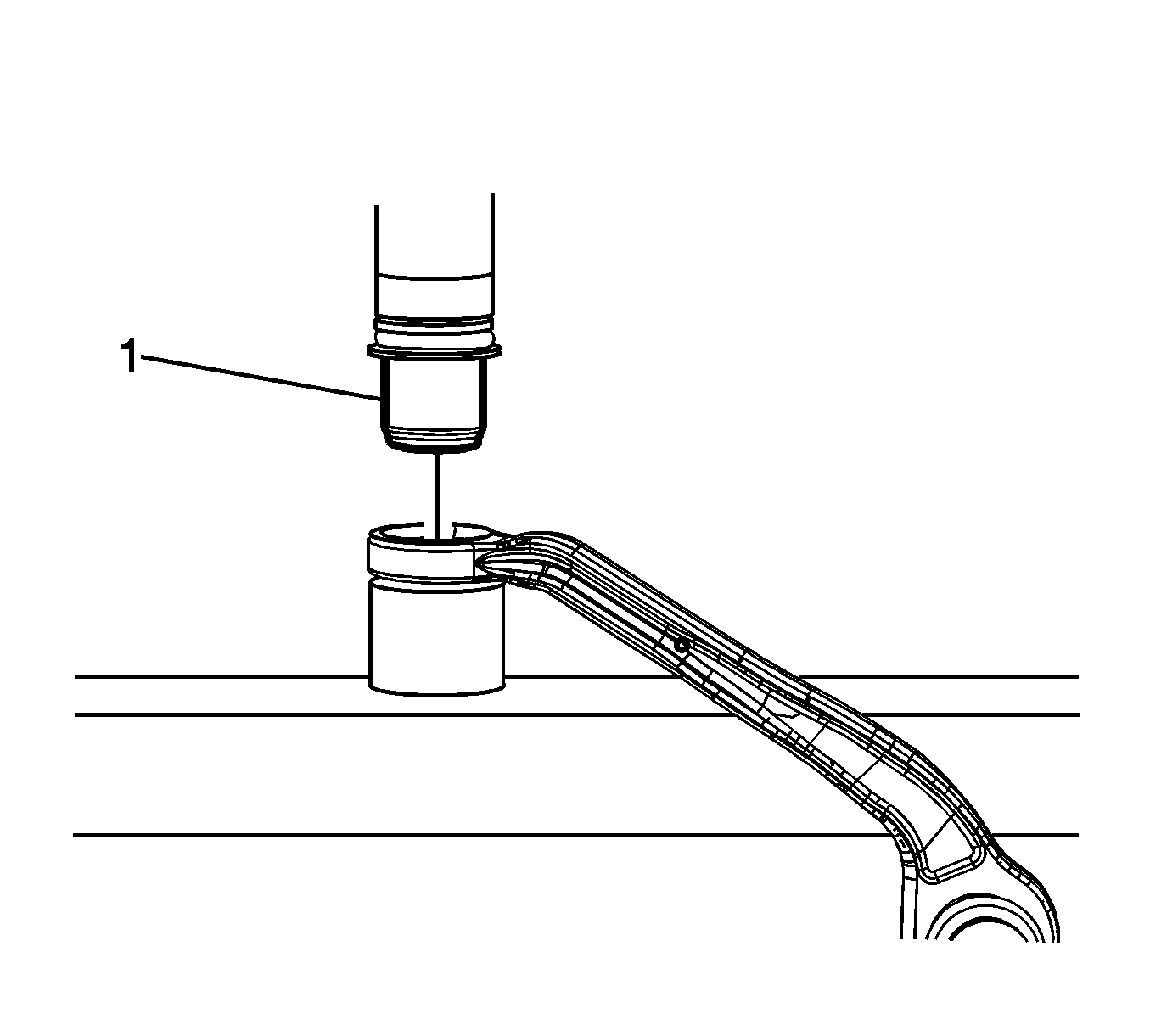

    Fig 1: Pressing Front Upper Control Arm Bushing
    GM2755850Courtesy of GENERAL MOTORS COMPANY
  1. Using the hydraulic press, install the upper control arm bushings (1).
  2. Remove the upper control arm from the vise.
  3. Install the upper control arm on the vehicle. Refer to Upper Control Arm Replacement .
