Removal Procedure

    Fig 1: Compressing Front Coil Springs
    GM1237715Courtesy of GENERAL MOTORS COMPANY
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation (6-Lug Wheel) , Tire and Wheel Removal and Installation (8-Lug Wheel) .
  3. Remove the shock absorber. Refer to Shock Absorber Replacement (RWD) , Shock Absorber Replacement (4WD) .
  4. Remove the front stabilizer shaft link. Refer to Stabilizer Shaft Replacement .
  5. Support the lower control arm near the lower ball joint with a suitable safety jack.
  6. Using the appropriate tool, compress the coil spring to remove all tension from the lower control arm. Refer to Special Tools .

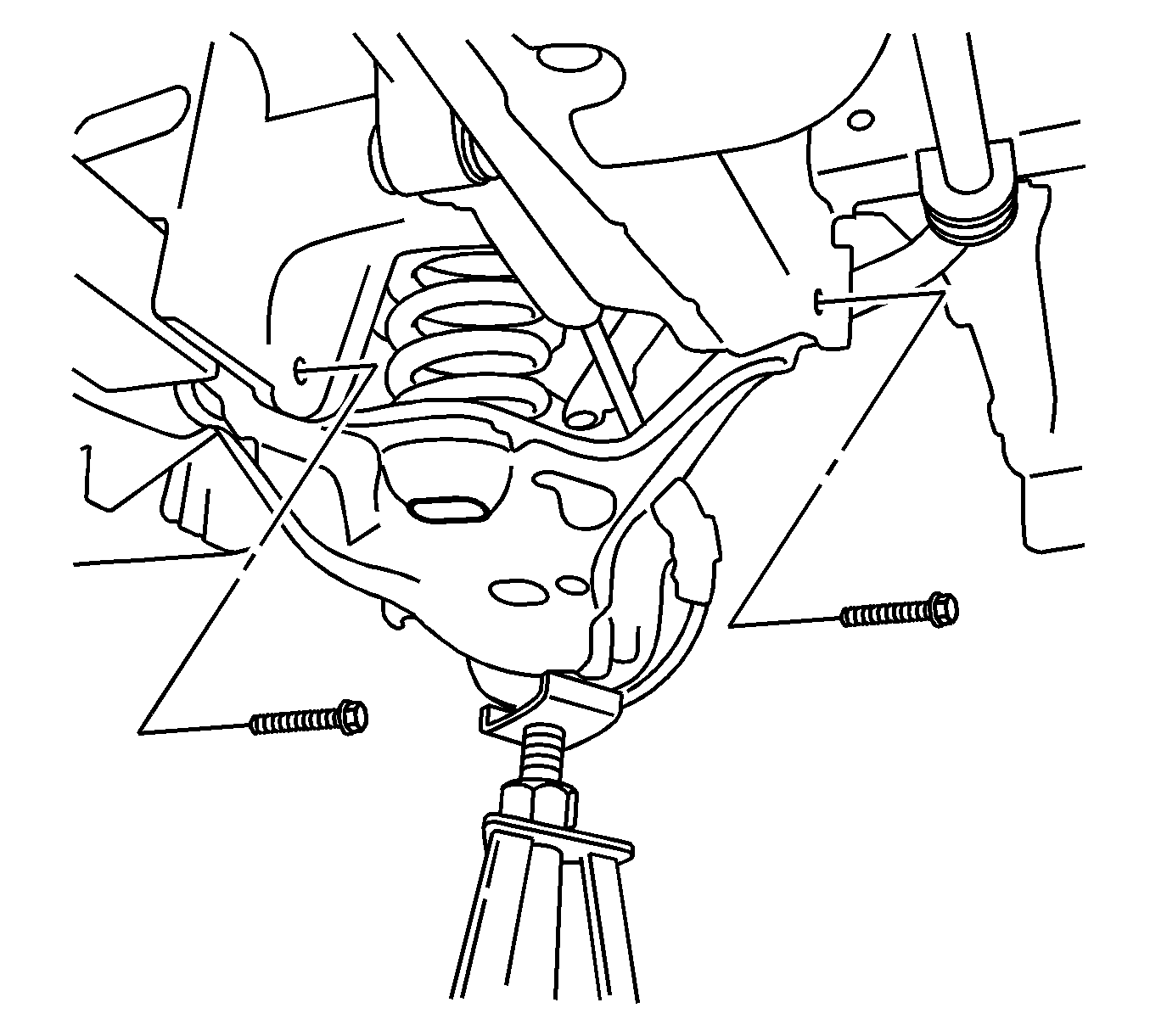

    7. Fig 2: Removing Lower Control Arm Pivot, Bolt, Retaining Nuts & Washers
    GM832343Courtesy of GENERAL MOTORS COMPANY
  7. Remove the lower control arm pivot bolt retaining nuts and washers.
  8. Remove the rear pivot bolt.
  9. Remove the front pivot bolt.
    10. Fig 3: Lower Control Arm, Coil Spring & Insulator
    GM832349Courtesy of GENERAL MOTORS COMPANY
  10. Lower the lower control arm and remove the coil spring and insulator.
  11. Remove spring compressor tool from the coil spring.
  12. Remove the coil spring insulator from the coil spring.
