Installation Procedure

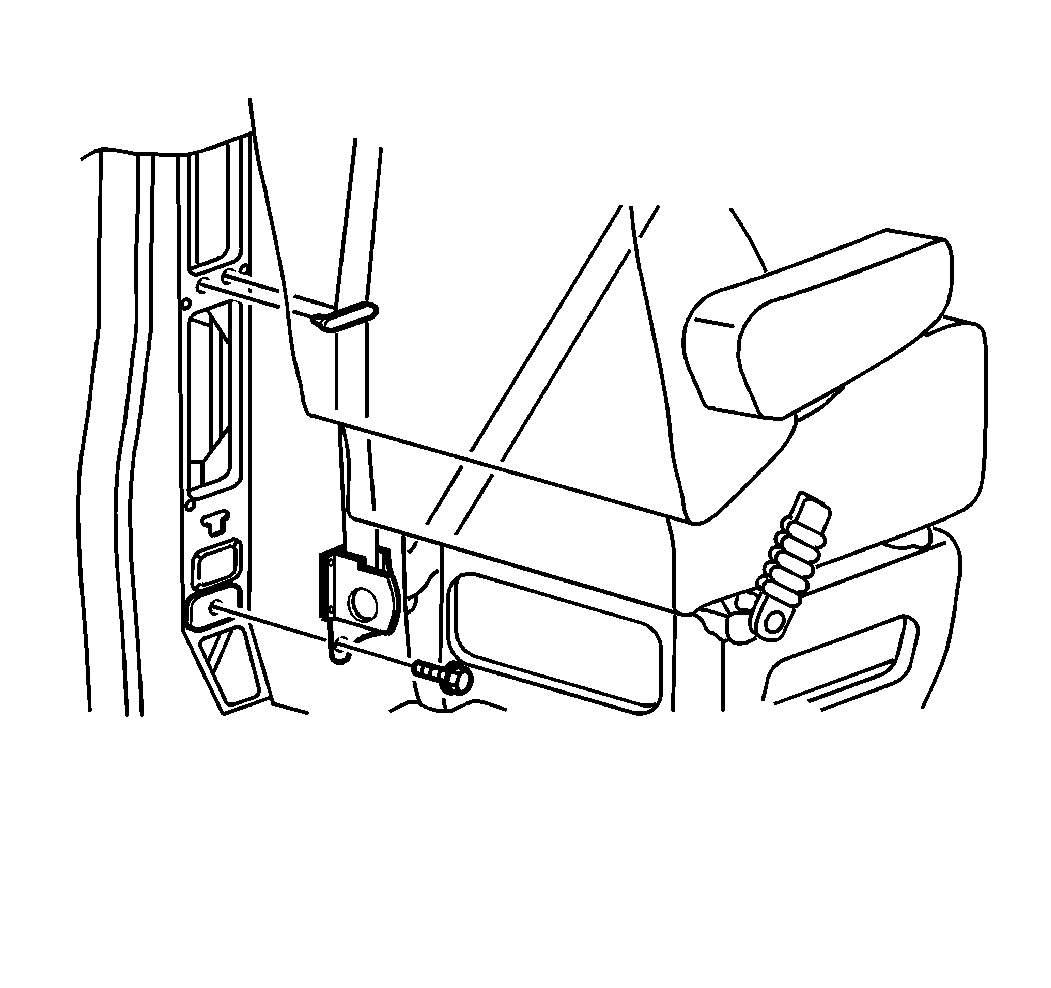

    Fig 1: Installing Shoulder/Seat Belt Retractor Assembly
    GM158293Courtesy of GENERAL MOTORS COMPANY
  1. Install the shoulder/seat belt retractor assembly to the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the shoulder/seat belt retractor retaining bolt to the lower pillar and tighten to 52 N.m (38 lb ft).
  3. Install the front door lower pillar garnish molding. Refer to Lower Pillar Garnish Molding Replacement .
  4. Install the front door upper pillar garnish molding. Refer to Upper Pillar Garnish Molding Replacement .
    5. Fig 2: Identifying Bolt Retaining Shoulder/Seat Belt Guide
    GM158290Courtesy of GENERAL MOTORS COMPANY
  5. Install the shoulder/seat belt guide to the shoulder belt guide adjuster.
  6. Install the upper shoulder/seat belt guide retaining bolt to the vehicle and tighten to 10 N.m (89 lb in).

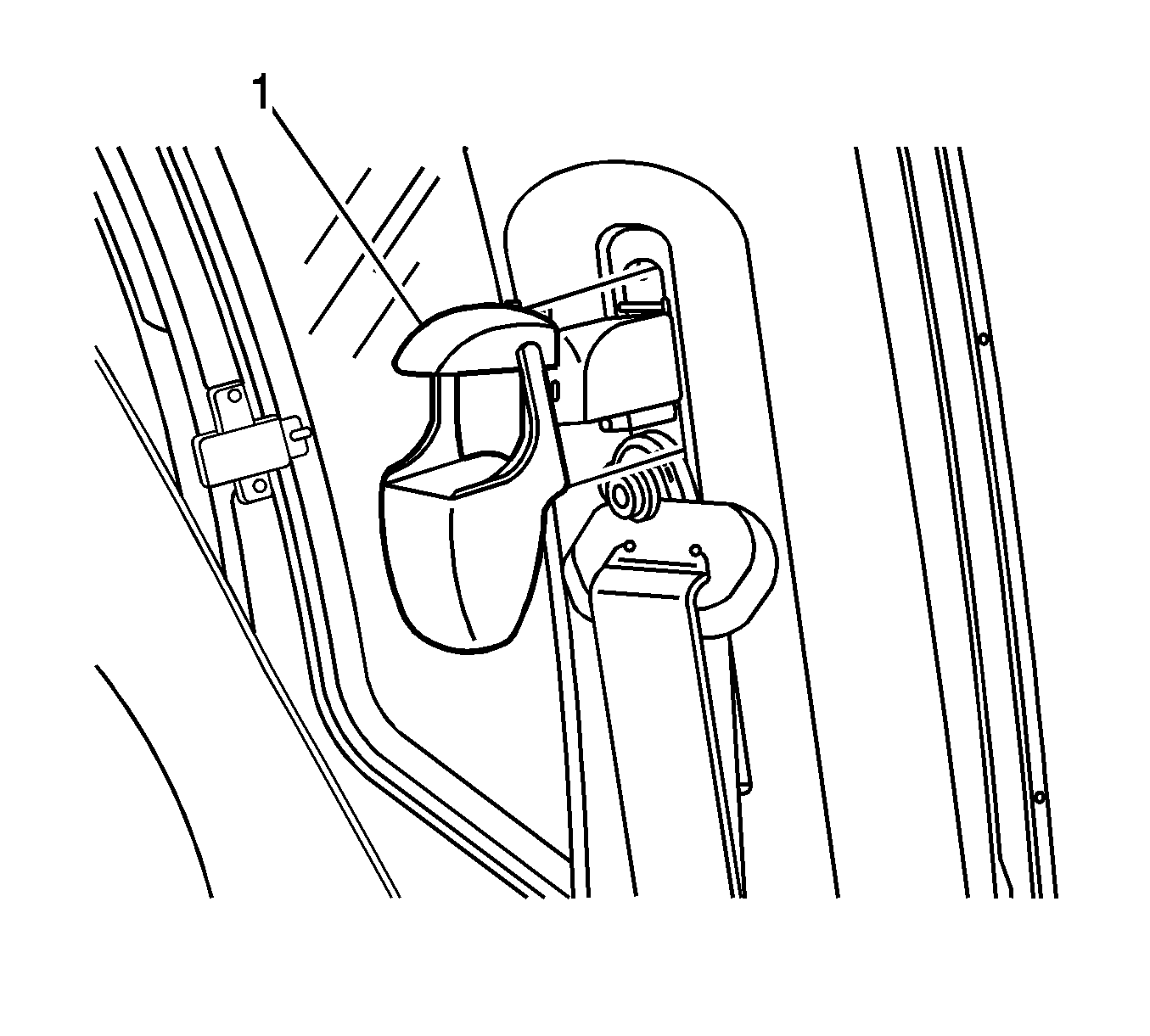

    7. Fig 3: Installing Shoulder/Seat Belt Guide
    GM887183Courtesy of GENERAL MOTORS COMPANY
  7. Install the shoulder/seat belt guide to the guide adjuster cover (1).
