Powertrain Component Views
>>
Front of the Engine (LU3)
Front of the Engine (LU3)
Front of the Engine (LU3)
Items
1:
G13 Generator
2:
Q2 A/C Compressor Clutch
3:
B26 Crankshaft Position Sensor

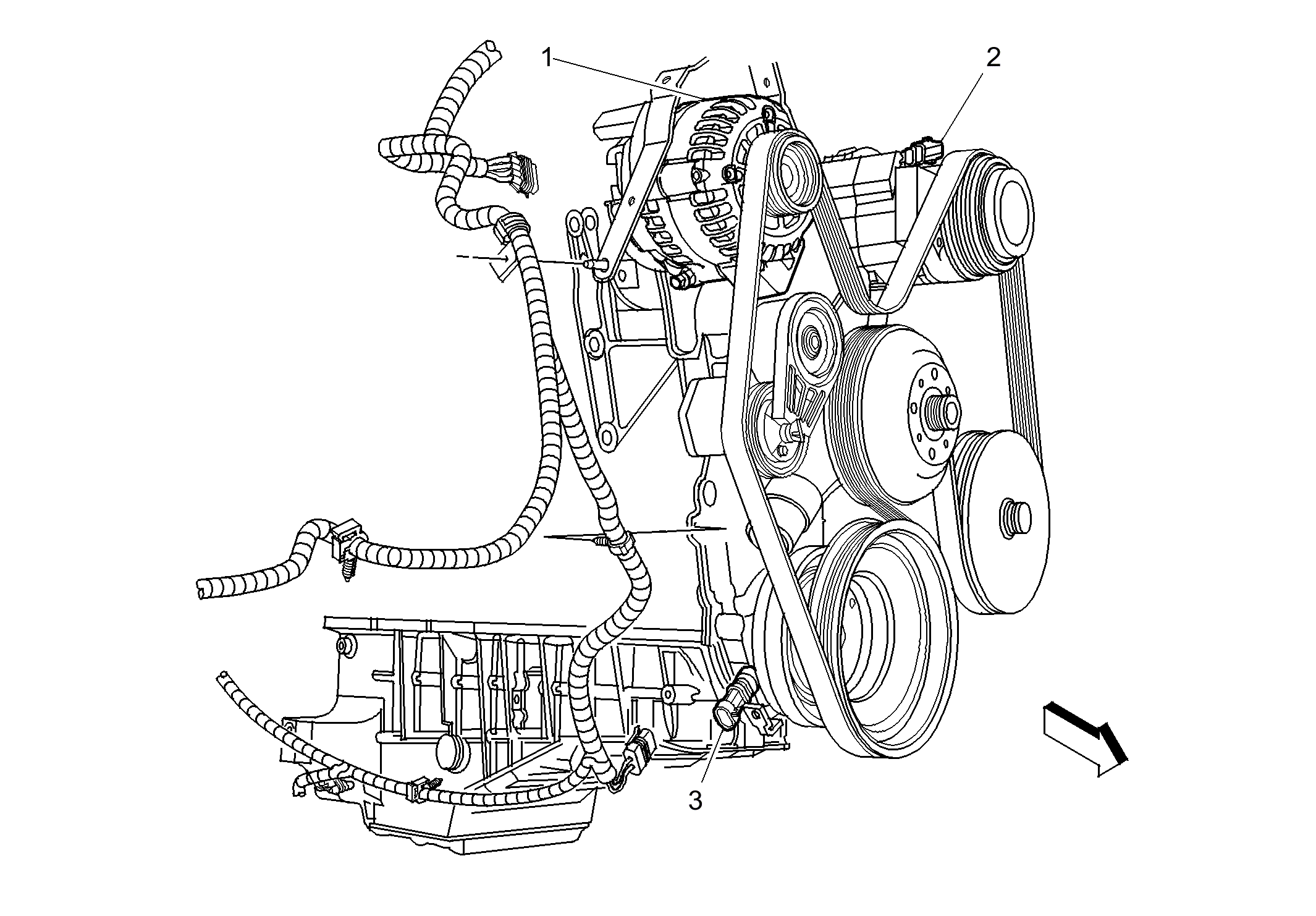

Fig 1: Front of Engine (LU3)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
