Exhaust Particulate Filter Replacement (LGH)

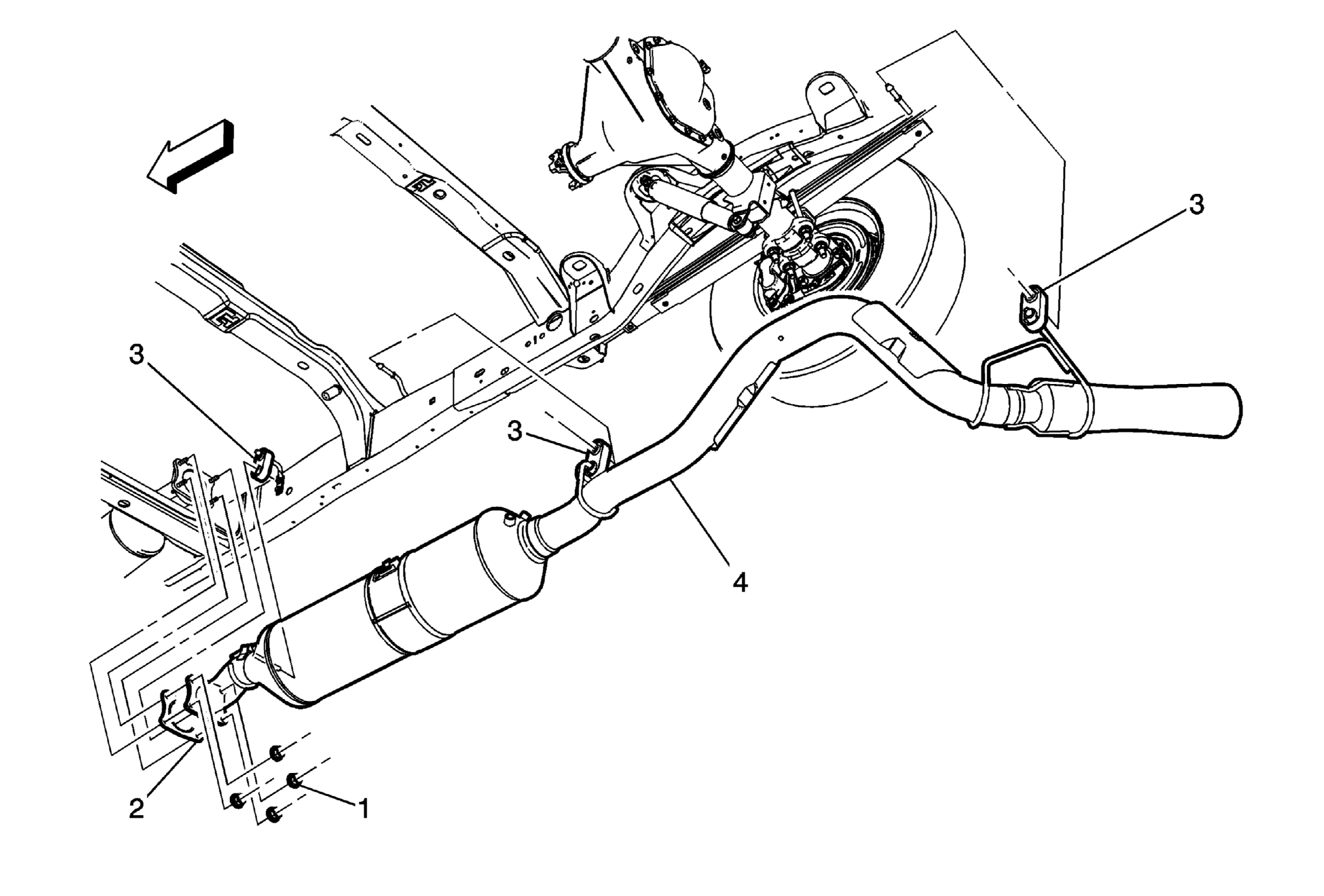

Fig 1: View Of Exhaust Particulate Filter (20 Series)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Battery Negative Cable Disconnection and Connection Remove the diesel particulate exhaust temperature sensors. Refer to Exhaust Temperature Sensor Replacement - Position 1 , Exhaust Temperature Sensor Replacement - Position 2 , Exhaust Temperature Sensor Replacement - Position 3 , and Exhaust Temperature Sensor Replacement - Position 4 . Remove the exhaust pressure differential sensor pipe. Refer to Exhaust Pressure Differential Sensor Pipe Replacement . Remove the nitrogen oxide - position 2 sensor. Refer to Nitrogen Oxide Sensor Replacement - Position 2
1	Catalytic Converter Nut (Qty: 4) WARNING: Refer to Exhaust Service Warning . CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Gasket TIP: Replace with a NEW gasket and clean the gasket surfaces.
3	Exhaust Hanger Isolators
4	Diesel Particulate Filter (DPF) with Exhaust
