Engine Coolant Temperature Sensor Replacement

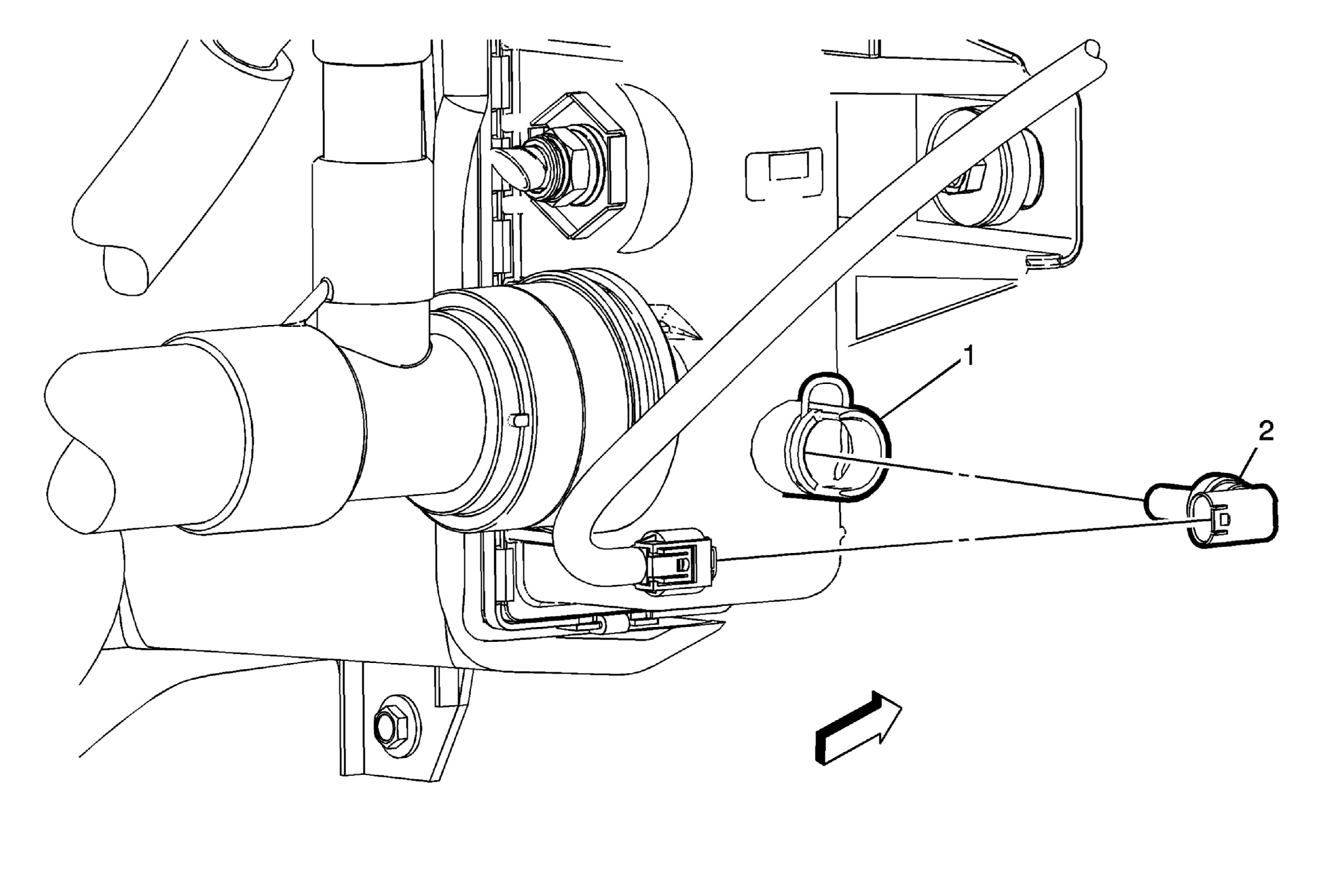

Fig 1: Engine Coolant Temperature Sensor & Retaining Clamp

Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Temperature Sensor Replacement

Callout	Component Name
Preliminary Procedures  Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill) , Cooling System Draining and Filling (Vac N Fill) , Cooling System Draining and Filling (Static Fill Diesel) .
1	Retaining Clamp
2	Engine Coolant Temperature Sensor Procedure  Disconnect the electrical connector.
