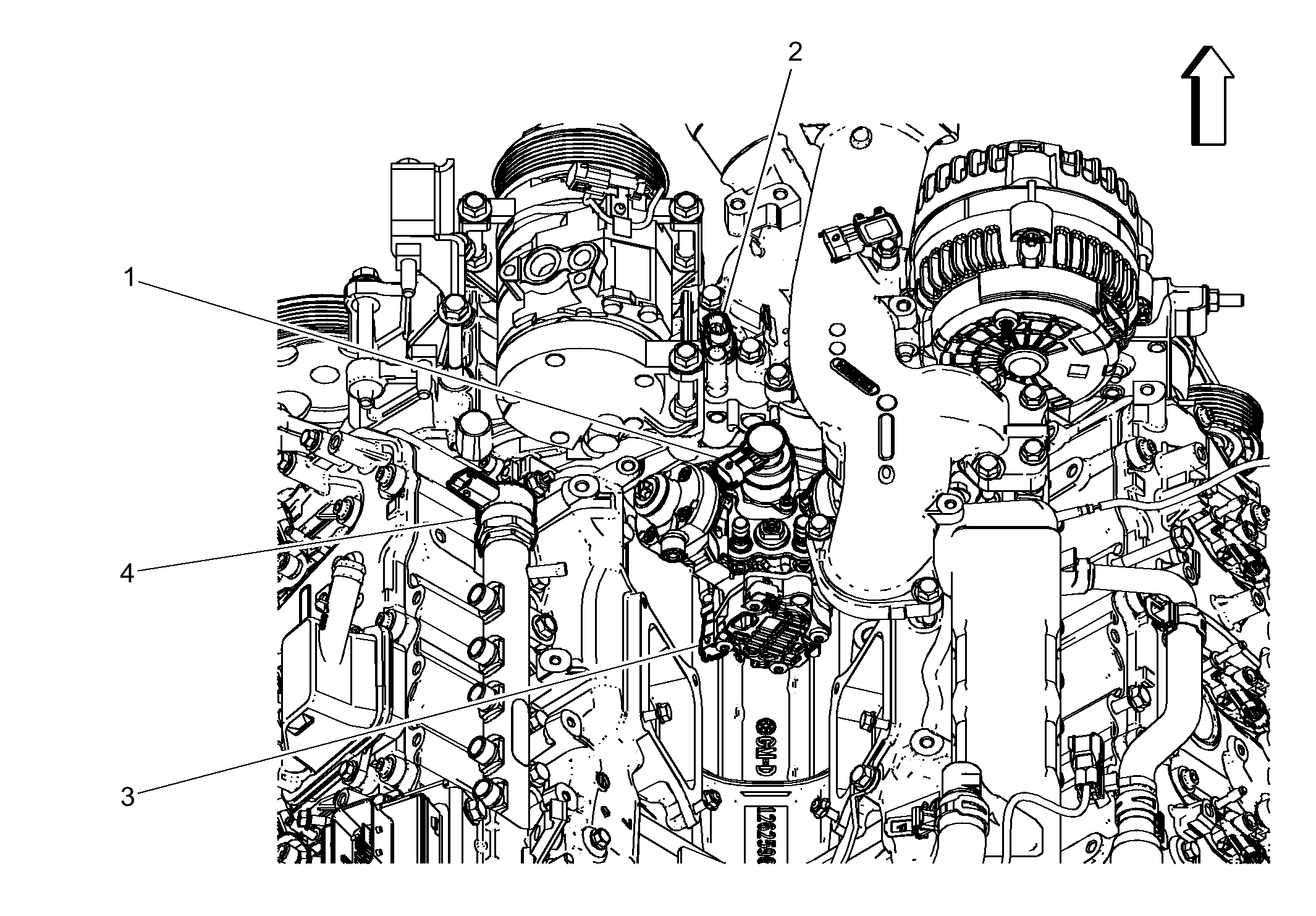

Top of the Engine Components (LGH)
Top of the Engine Components (LGH)
| Items |
| 1:
Q18A Fuel Pressure Regulator 1 (LGH) |
| 2:
B34 Engine Coolant Temperature Sensor |
| 3:
B48A Fuel Temperature Sensor 1 (LGH) |
| 4:
Q18B Fuel Pressure Regulator 2 (LGH) |
Courtesy of GENERAL MOTORS COMPANY
