Fuse Block - Body Label

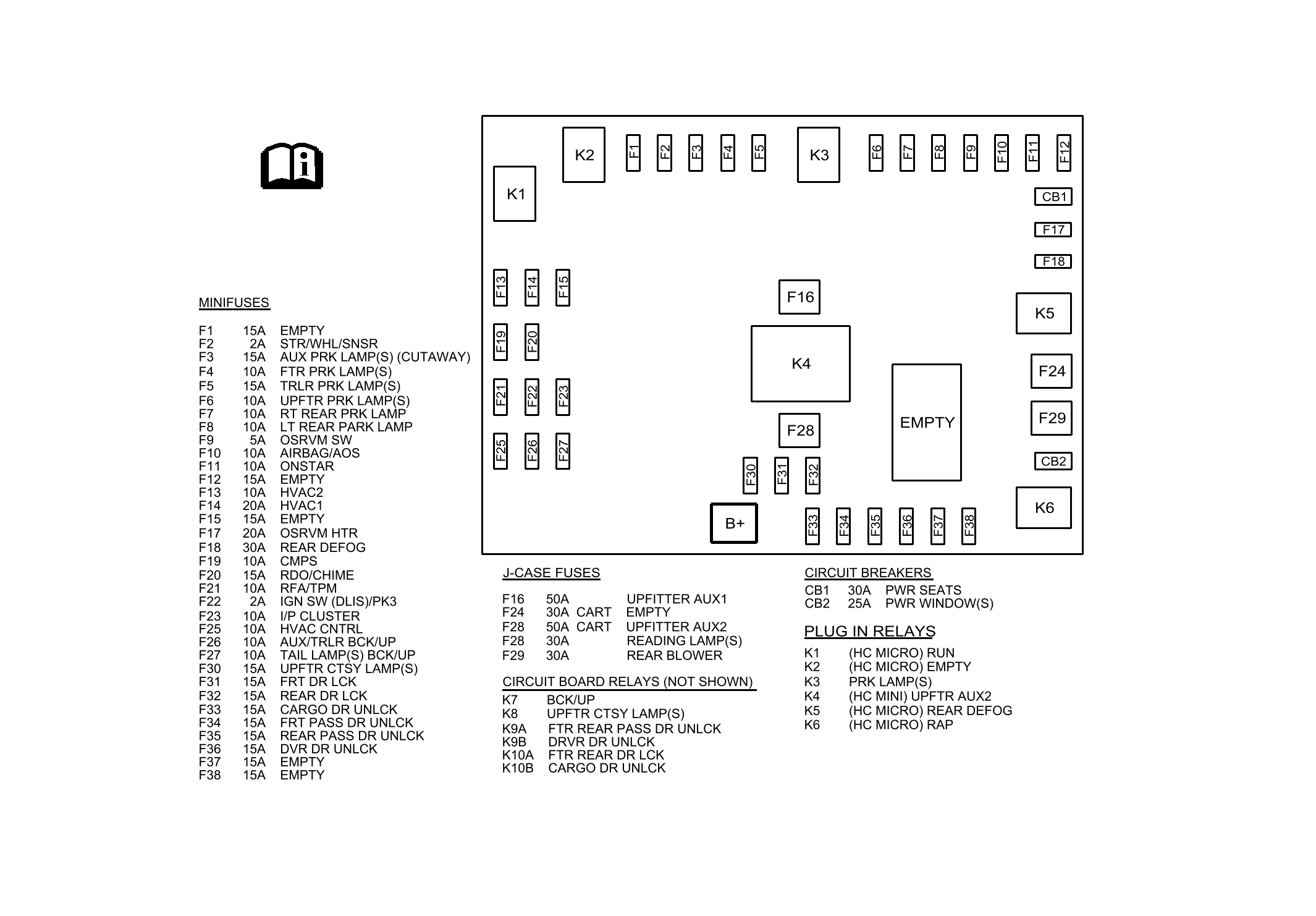

Fig 1: Fuse Block - Fuse And Relay Body Label

GM2832062

Courtesy of GENERAL MOTORS COMPANY
