Installation Procedure

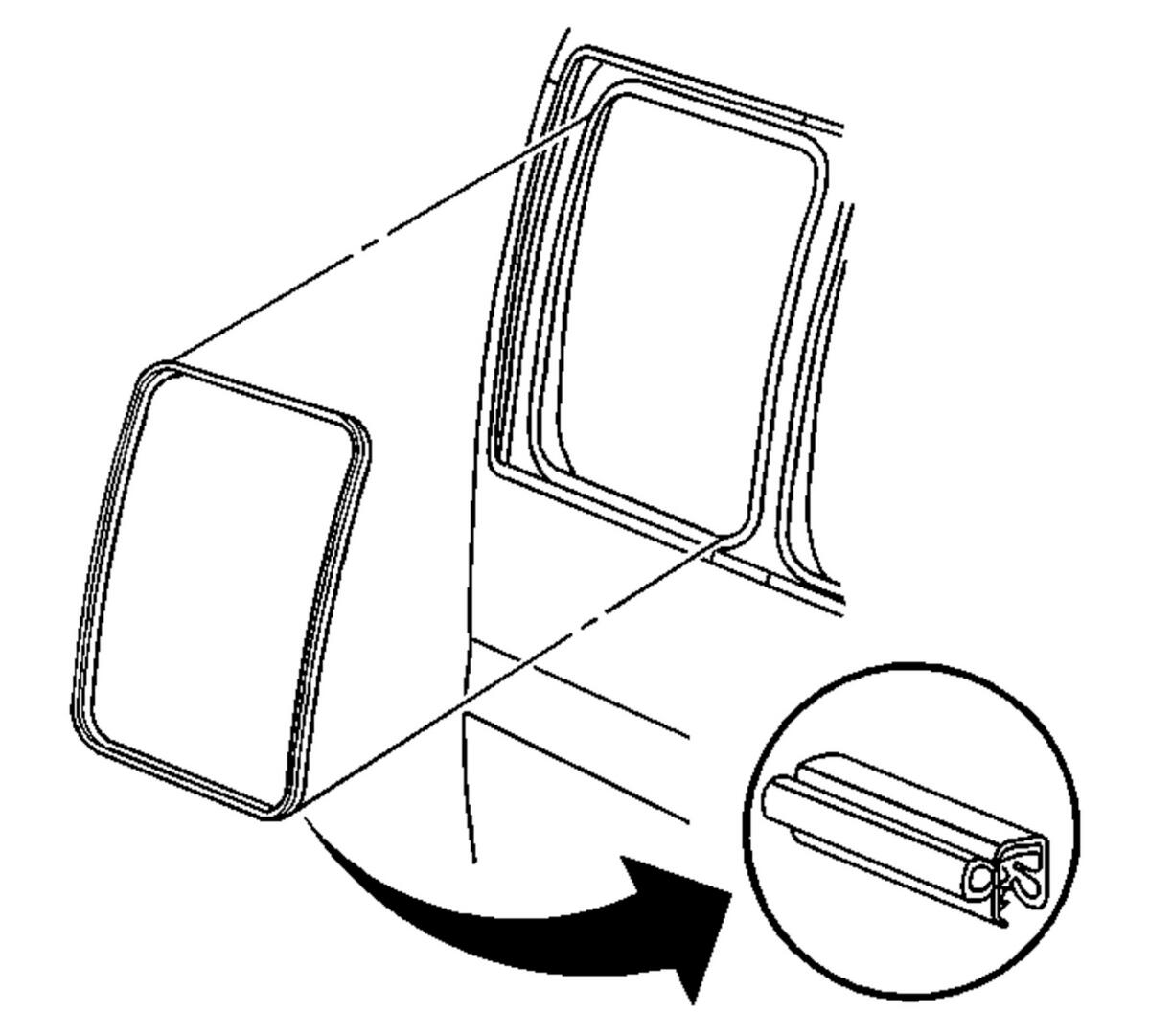

    Fig 1: Sliding Door Window Weatherstrip
    GM344497Courtesy of GENERAL MOTORS COMPANY
  1. Install the sliding side door window weatherstrip to the vehicle.
  2. Align the channel on the sliding side door window weatherstrip with the pinch-weld flange.
  3. Press the weatherstrip into place.
  4. Install the hinged body side window. Refer to Hinged Rear Window Replacement .
  5. Install the sliding side door upper trim panel. Refer to Sliding Rear Side Door Trim Panel Replacement .
