Installation Procedure

  1. Install the window assembly to the vehicle.

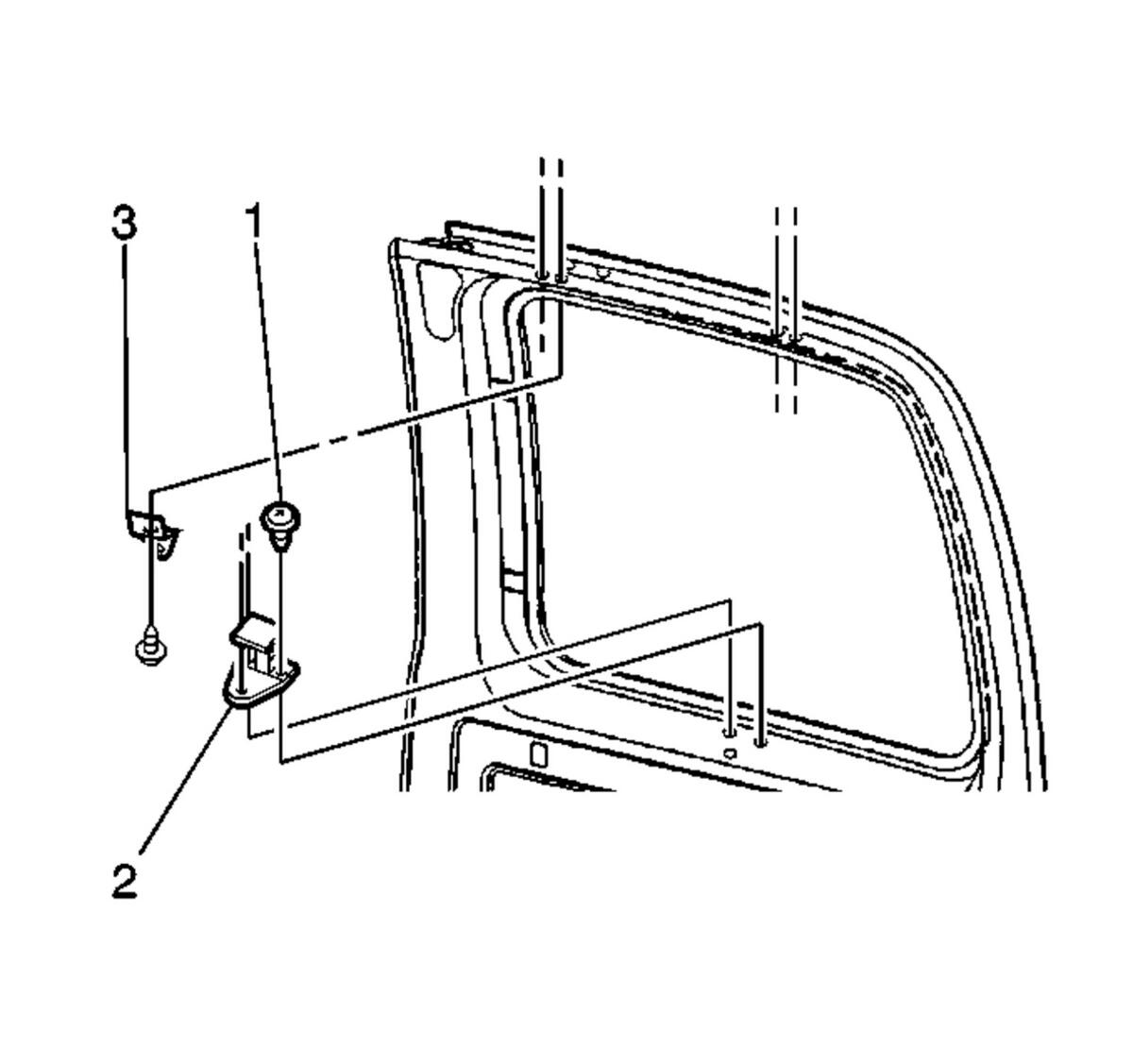

    2. Fig 1: Hinged Rear Window
    GM326818Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the screws that retain the hinge (3) to the door and tighten to 3 N.m (27 lb in).
  3. Install the screws (1) that retain the latch to the door and tighten to 3 N.m (27 lb in).
  4. Install the rear door trim panel.
