Express 1500 LS, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Object Detection System And Pedestrian Protection System
>>
Schematic Wiring Diagrams (Object Detection System And Pedestrian Protection System)
>>
Object Detection Wiring Schematics (Object Detection System And Pedestrian Protection System)
>>
Rear Object Sensors (UD7)(Object Detection System And Pedestrian Protection System)
Rear Object Sensors (UD7)(Object Detection System And Pedestrian Protection System)

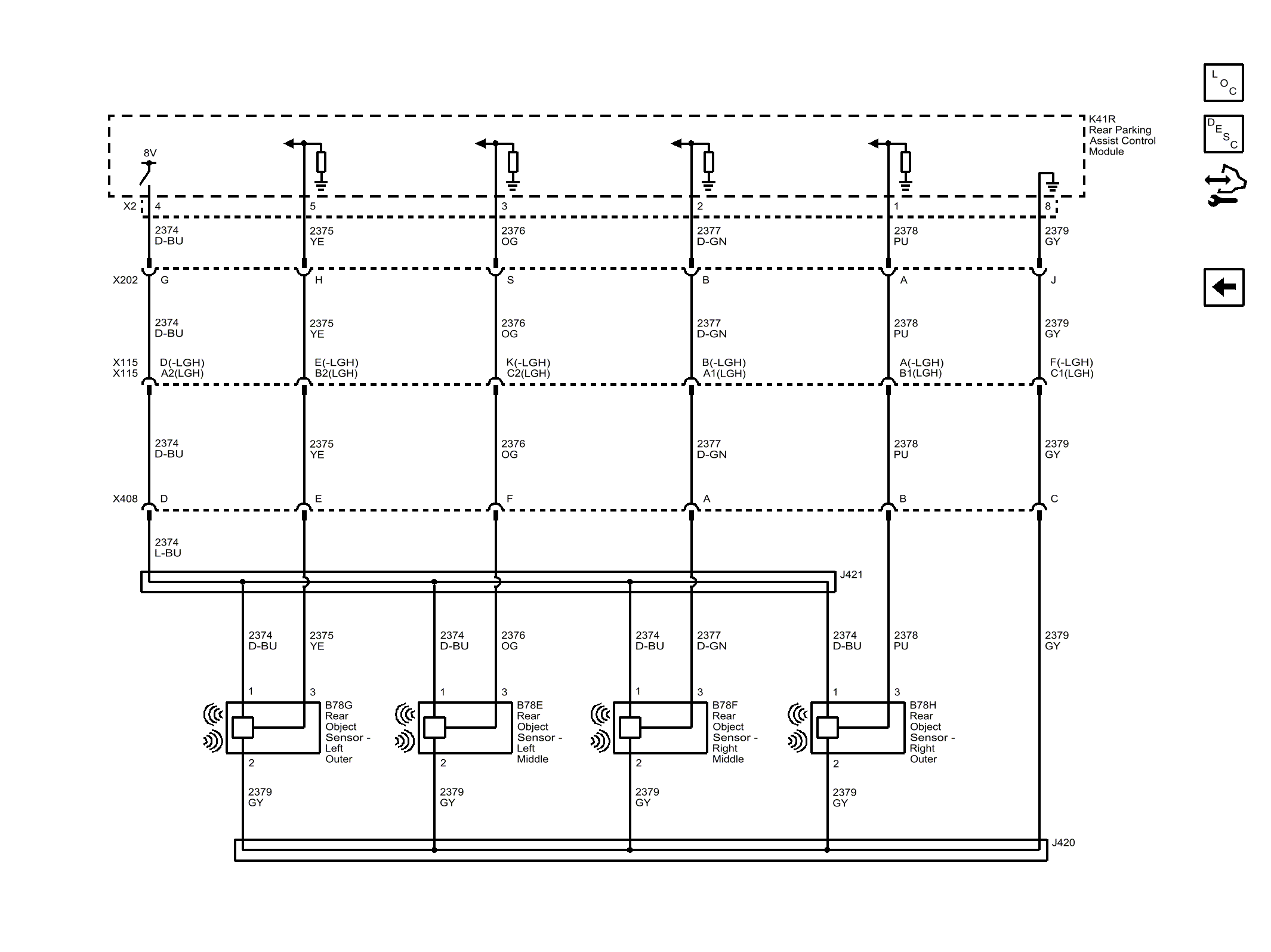

Fig 1: Rear Object Sensors (UD7) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
