Rear Object Sensing Power, Ground And Serial Data (UD7)(Object Detection System And Pedestrian Protection System)

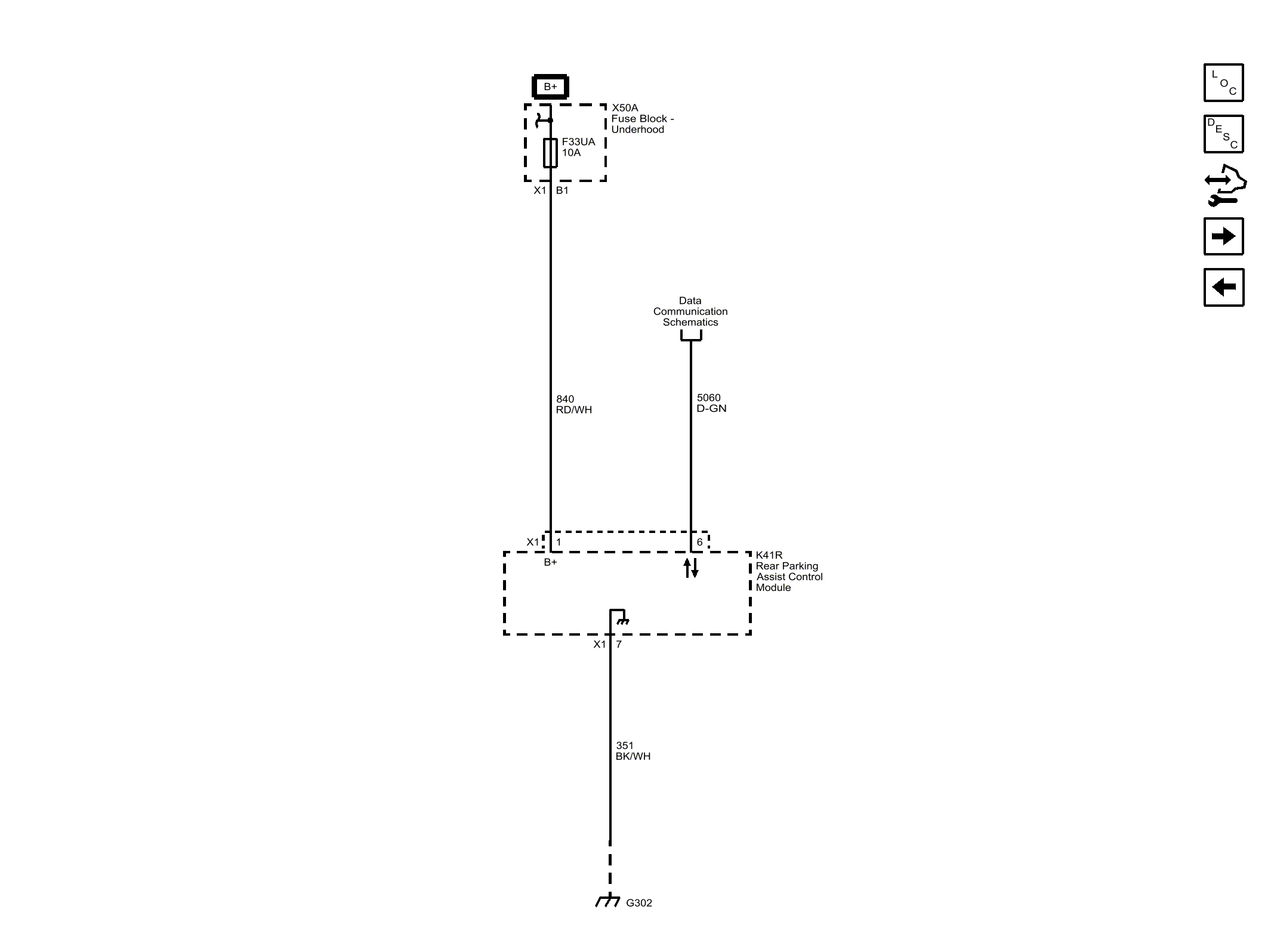

Fig 1: Rear Object Sensing Power, Ground and Serial Data (UD7) Wiring Schematics
GM3395622Courtesy of GENERAL MOTORS COMPANY
