Rear Object Sensor Alarm Assembly Replacement (Object Detection System And Pedestrian Protection System)

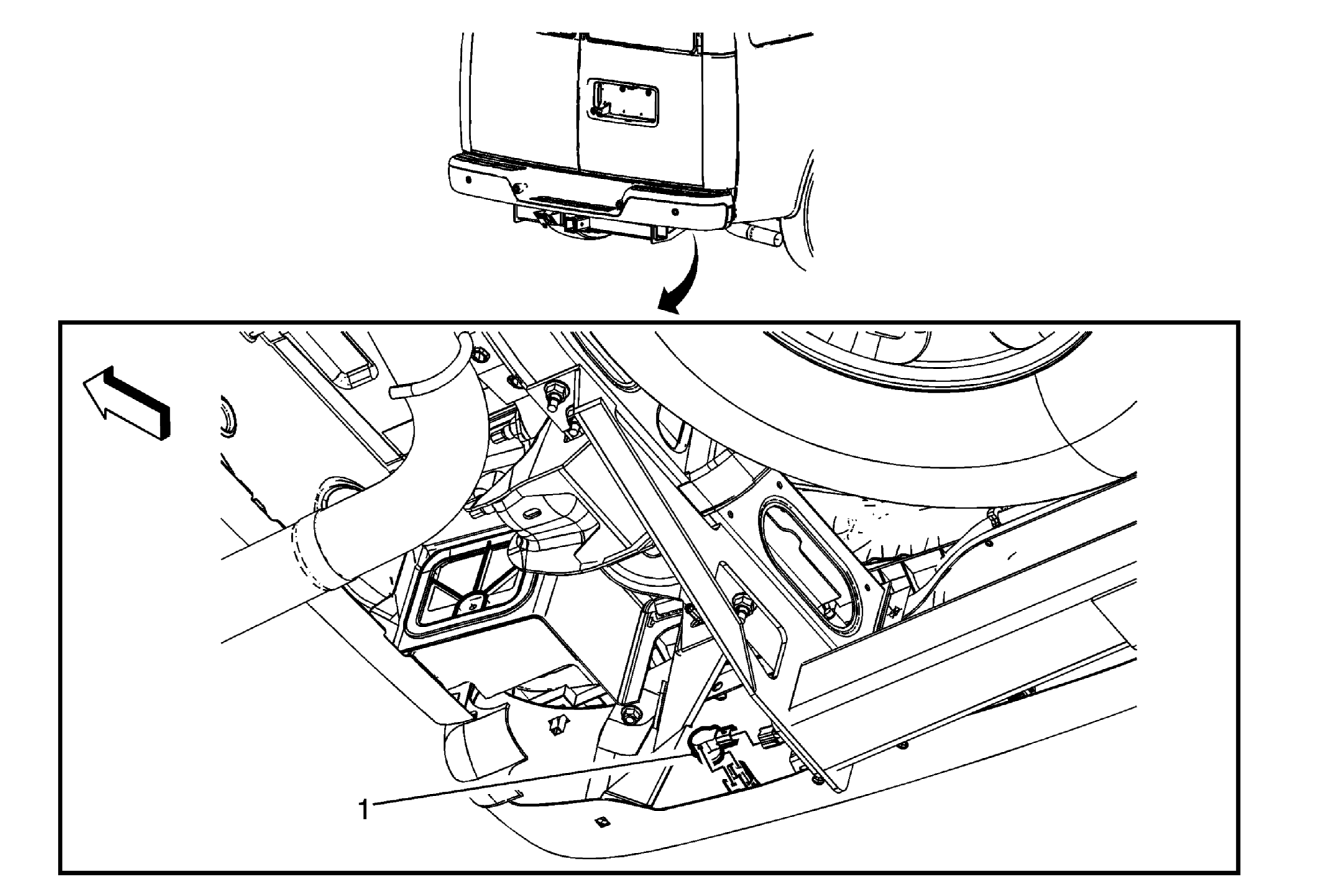

Fig 1: Rear Object Sensor Alarm Assembly

Courtesy of GENERAL MOTORS COMPANY

Rear Object Sensor Alarm Assembly Replacement

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to. Lifting and Jacking the Vehicle
1	Rear Object Sensor Alarm Assembly Procedure Disconnect the electrical connector. Lift the locking tabs on the housing and remove the rear object sensor. NOTE: The rear object sensor is a one piece design. Do NOT twist the sensor cap to try and remove the cap.

Callout

Component Name

Preliminary Procedure
Raise and support the vehicle. Refer to. Lifting and Jacking the Vehicle

Rear Object Sensor Alarm Assembly

Procedure

NOTE:

The rear object sensor is a one piece design. Do NOT twist the sensor cap to try and remove the cap.
