Communication Interface Module Bracket Replacement

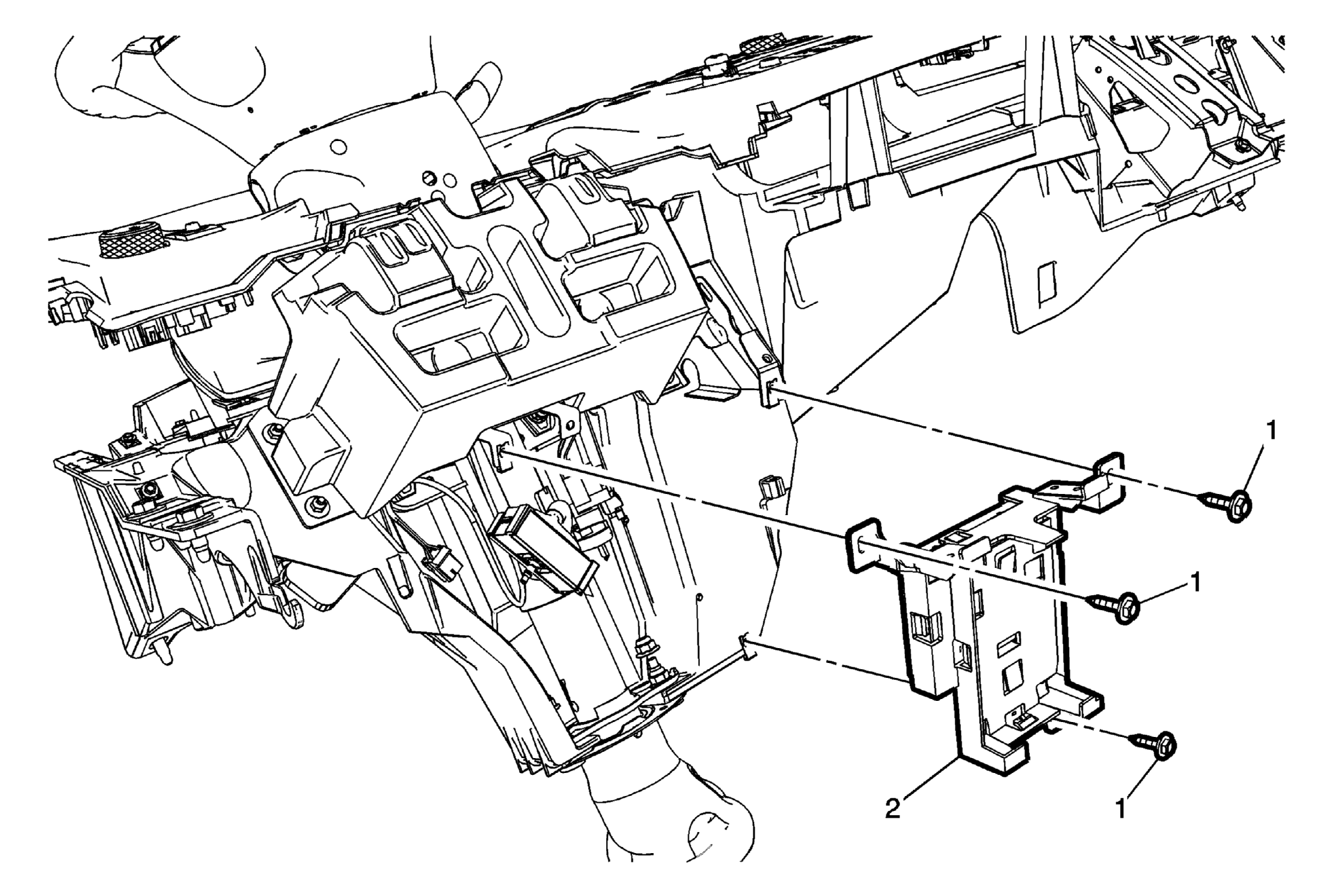

Fig 1: Communication Interface Module Bracket
GM2532866Courtesy of GENERAL MOTORS COMPANY
Communication Interface Module Bracket Replacement

Callout Component Name
Preliminary Procedure
Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement .
1 Communication Interface Module Bracket Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .
2 Communication Interface Module Bracket

Procedure

  1. Disconnect the electrical connections.
  2. Transfer components as necessary.
