Removal Procedure

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the engine sight shield. Refer to Engine Sight Shield Replacement .

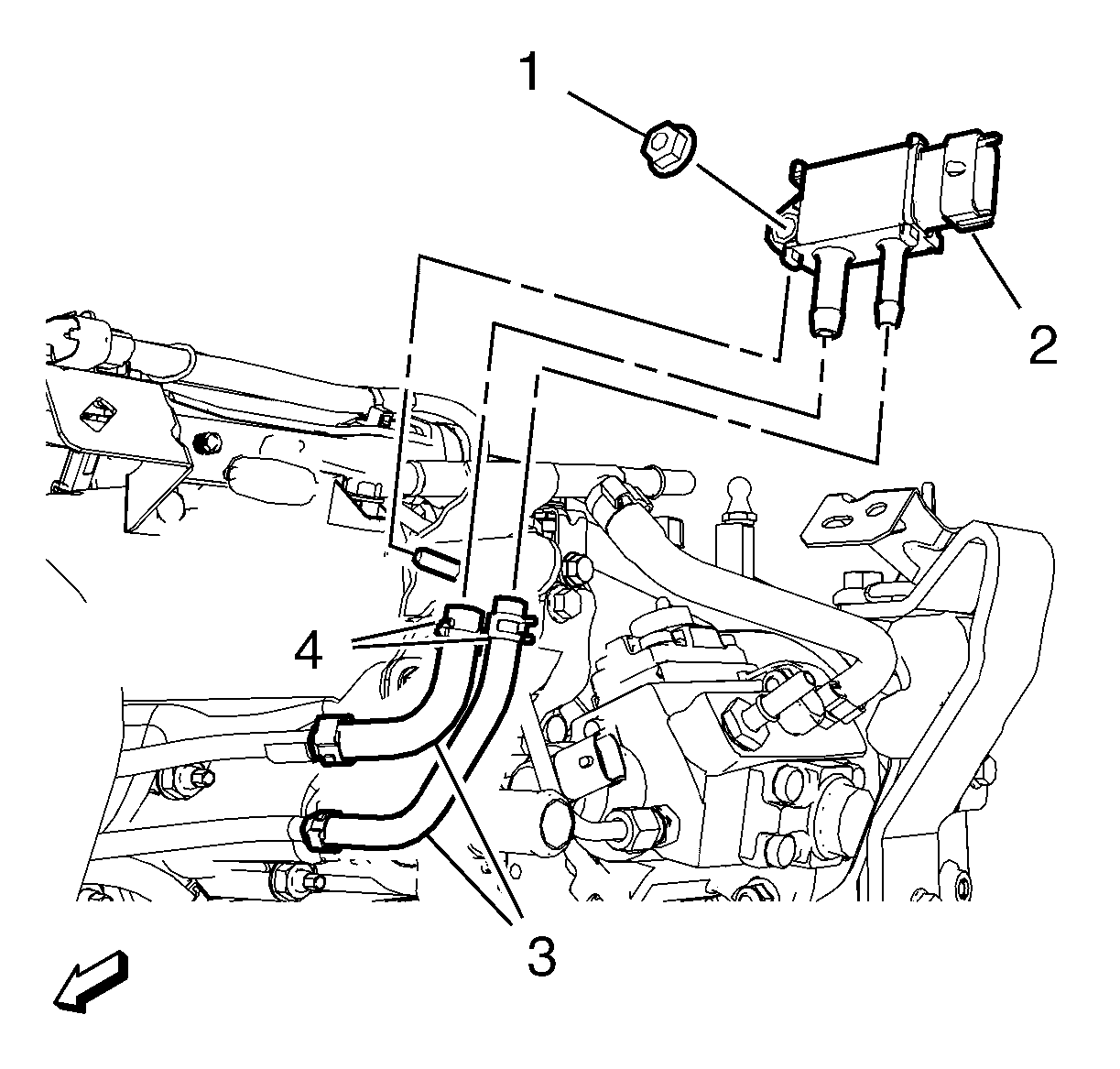

    3. Fig 1: Exhaust Pressure Sensor
    GM2966398Courtesy of GENERAL MOTORS COMPANY
  3. Remove the exhaust pressure sensor nut (1).
  4. Reposition the exhaust pressure sensor (2) to access the hose clamps.
  5. Remove the 2 clamps (4).
  6. Remove the 2 hoses (3) from the exhaust pressure sensor (2).
  7. Disconnect the wiring harness plug from exhaust pressure sensor (2).
  8. Remove the exhaust pressure sensor (2).
