Installation Procedure

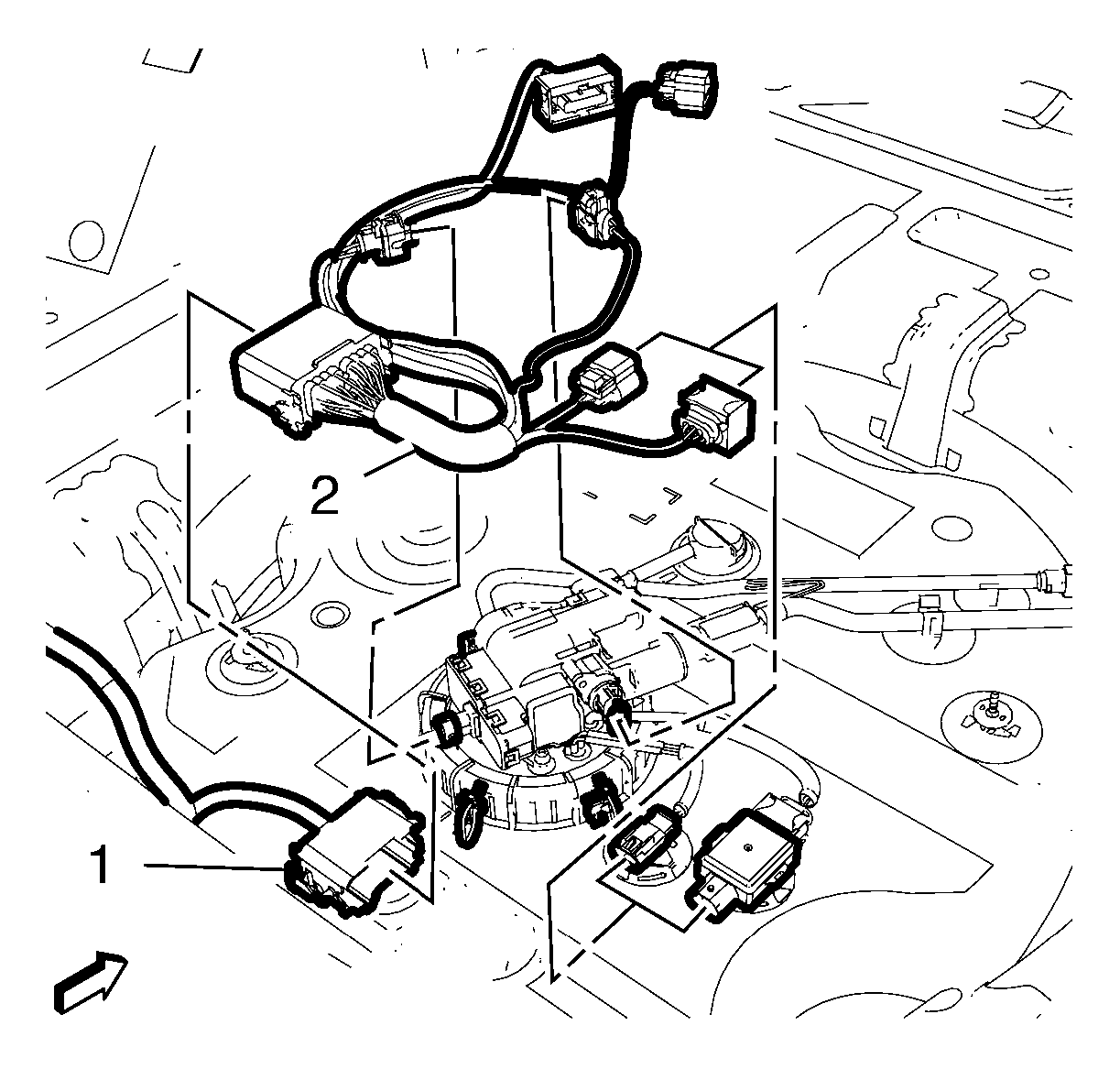

    Fig 1: Emission Reduction Fluid Pump Module Wiring Harness Plug And Body Wiring Harness
    GM3216250Courtesy of GENERAL MOTORS COMPANY
  1. Position the emission reduction fluid pump module wiring harness (2).
  2. Connect the emission reduction fluid pump module wiring harness plug (1) to the body wiring harness.
  3. Connect the 6 emission reduction fluid pump module wiring harness plugs.
  4. Install 4 NEW cable ties.
  5. Install the emission reduction fluid tank insulator - upper. Refer to Emission Reduction Fluid Tank Insulator Replacement - Upper .
