Front Side Door Window Replacement

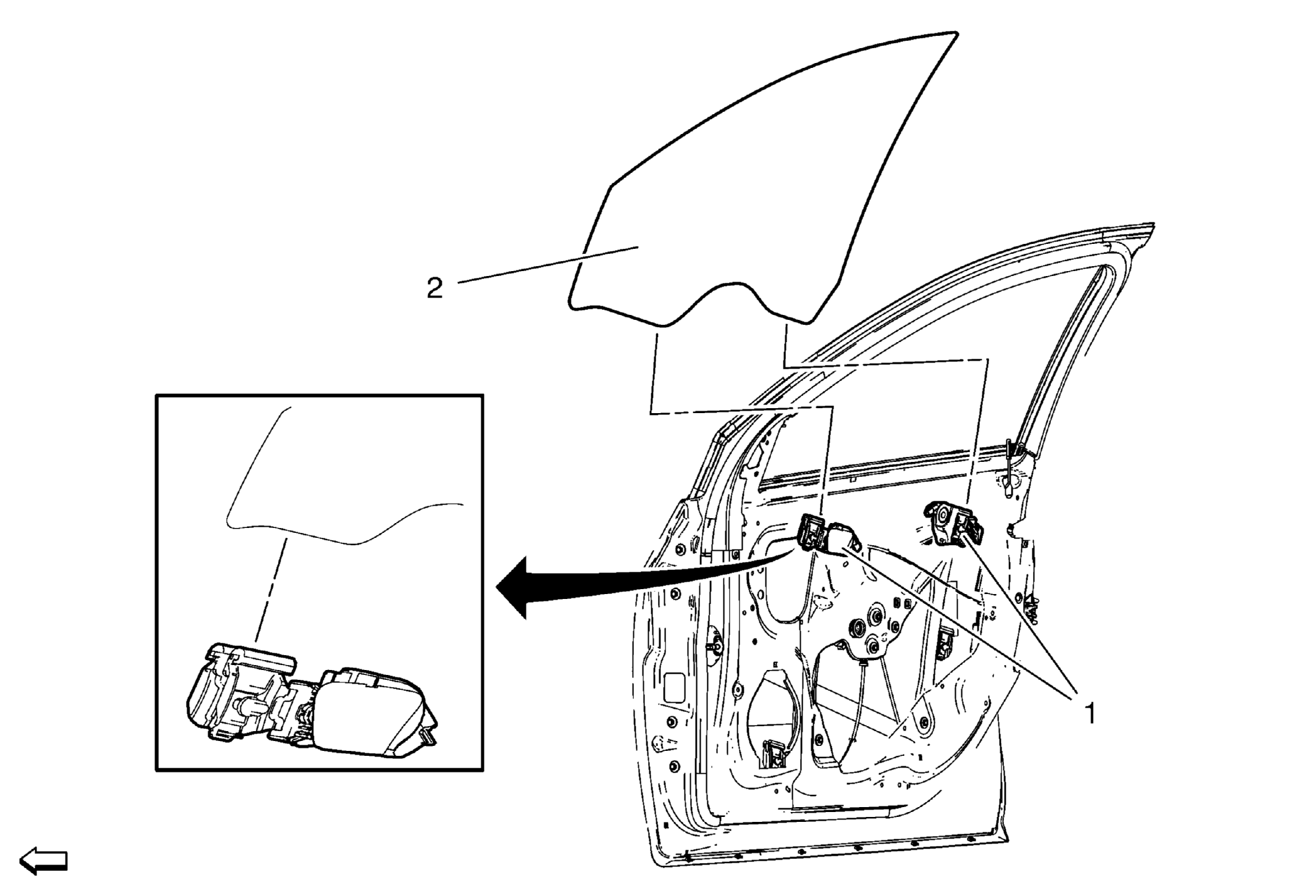

Fig 1: Front Side Door Window And Regulator Sash Nuts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Position the window approximately half way down in the door. Remove the front side door water deflector. Refer to Front Side Door Water Deflector Replacement . Remove the front side door window outer sealing strip. Refer to Front Side Door Window Outer Sealing Strip Replacement .
1	Front Side Door Window Regulator Sash Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Side Door Window Procedure Loosen the window regulator sash nuts, pull upward to release the window from the sash. Rotate the front door window as necessary to remove it from the door.

Callout

Component Name

Preliminary Procedure

Position the window approximately half way down in the door.
Remove the front side door water deflector. Refer to Front Side Door Water Deflector Replacement .
Remove the front side door window outer sealing strip. Refer to Front Side Door Window Outer Sealing Strip Replacement .

Front Side Door Window Regulator Sash Nut (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Front Side Door Window

Procedure

Loosen the window regulator sash nuts, pull upward to release the window from the sash.
Rotate the front door window as necessary to remove it from the door.
