Keyless Entry (without ATH) Wiring Schematics

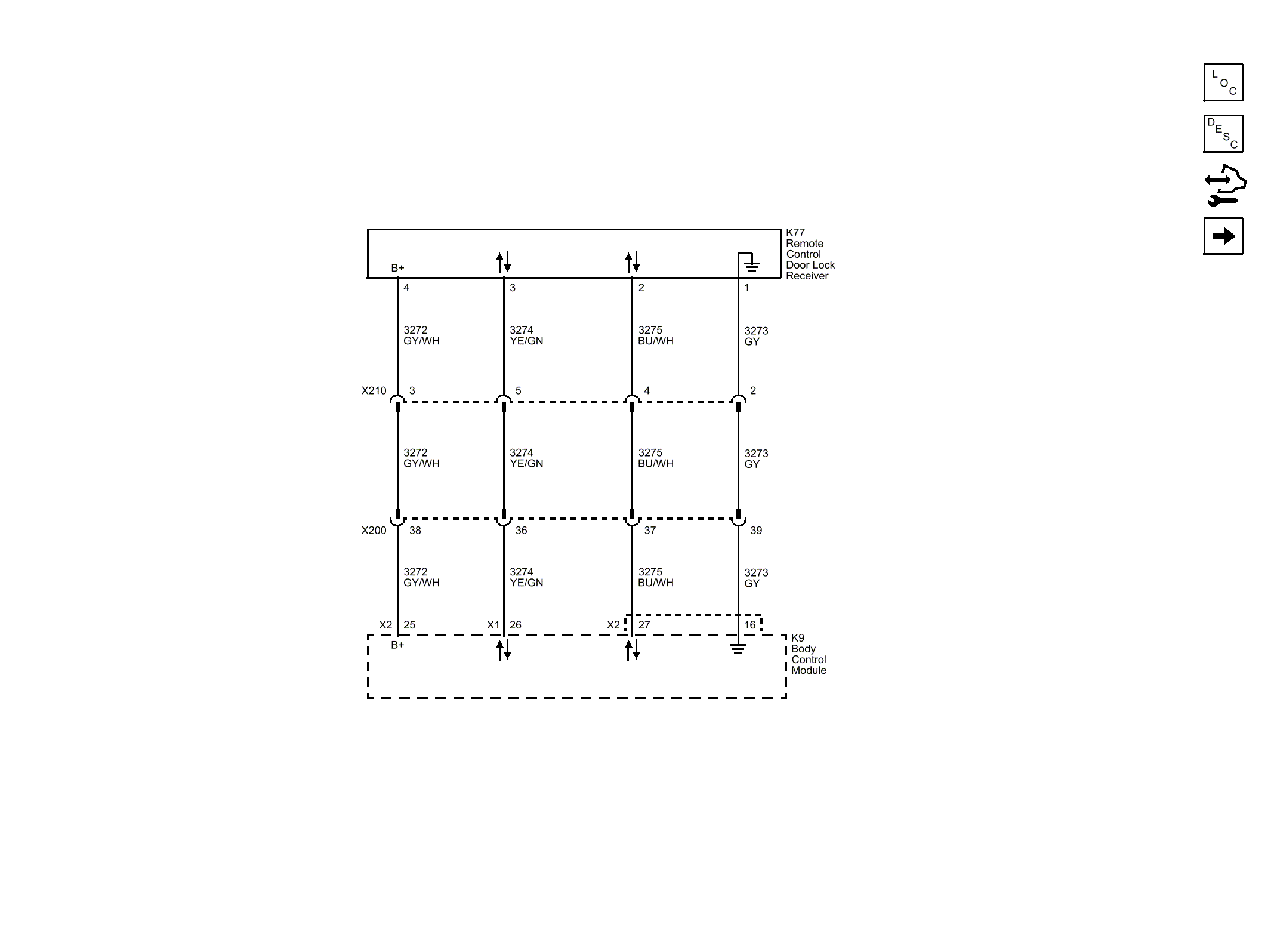

Fig 1: Keyless Entry (without ATH) Wiring Schematic

GM3255793

Courtesy of GENERAL MOTORS COMPANY
