Ignition Lock Key Transmitter Antenna Replacement - Floor Console

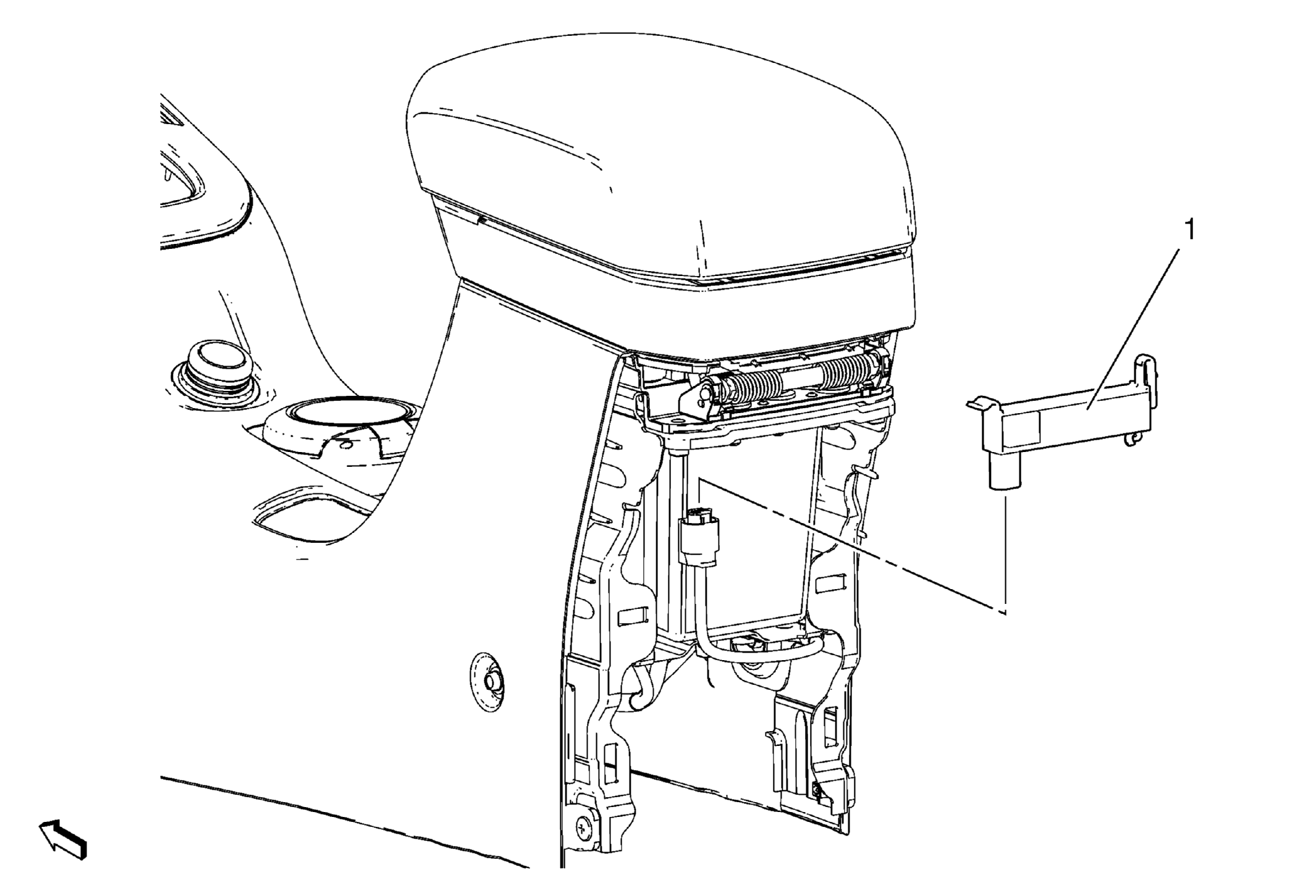

Fig 1: Ignition Lock Key Transmitter Antenna

Courtesy of GENERAL MOTORS COMPANY

Ignition Lock Key Transmitter Antenna Replacement - Floor Console

Callout	Component Name
Preliminary Procedures  Remove the Front Floor Console Rear Cover. Refer to Front Floor Console Rear Cover Replacement .
1	Ignition Lock Key Transmitter Antenna Procedure  Disconnect the electrical connection.
