Front Side Door Window Control Switch Replacement

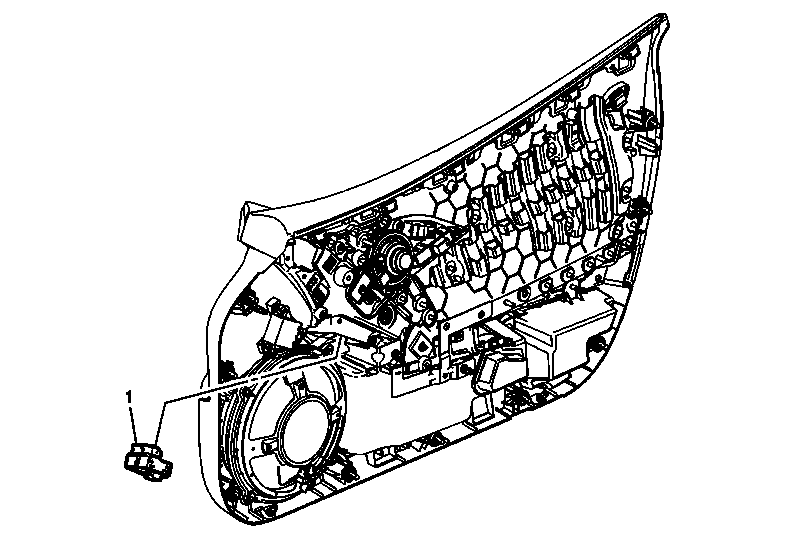

Fig 1: Front Side Door Window Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim - drivers side door. Refer to Front Side Door Trim Replacement (Driver Side) , Front Side Door Trim Replacement (Passenger Side) .
1	Front Side Door Window Control Switch Assembly Procedure Using a plastic pry tool, gently pry on the sides to release the switch. Disconnect the electrical connectors. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Front Side Door Window Control Switch Assembly

Procedure
