Turn Signal Switch Bracket Replacement

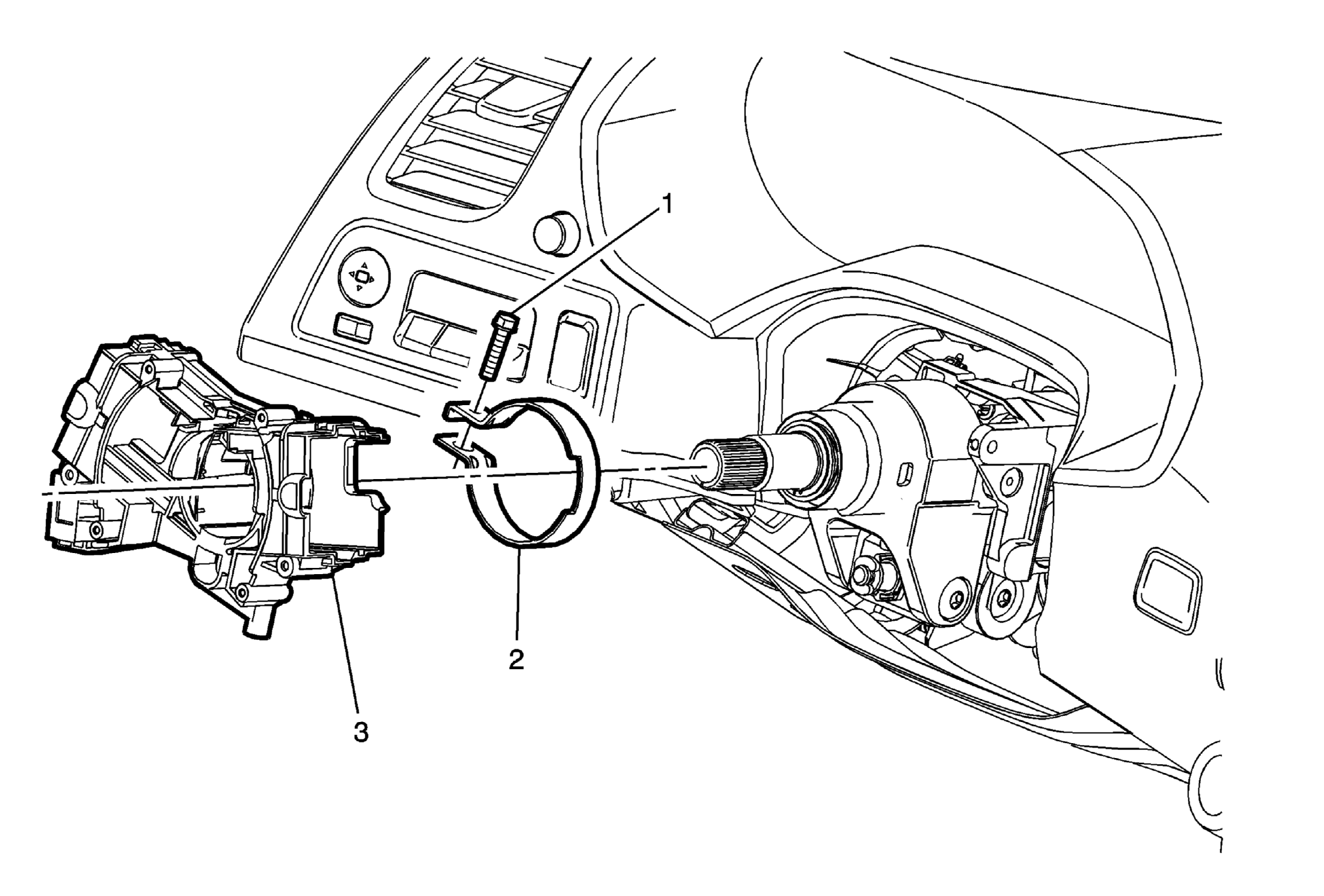

Fig 1: Turn Signal Switch Bracket
GM3392429Courtesy of GENERAL MOTORS COMPANY
Turn Signal Switch Bracket Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the steering wheel airbag coil. Refer to Steering Wheel Airbag Coil Replacement .
  2. Remove the steering column tilt wheel and telescope switch. Refer to Steering Column Tilt Wheel and Telescope Switch Replacement .
  3. Remove the turn signal multifunction switch. Refer to Turn Signal Multifunction Switch Replacement .
  4. Remove the windshield wiper and washer switch. Refer to Windshield Wiper and Washer Switch Replacement .
1 Turn Signal Switch Bracket Retainer Bolt
CAUTION:

Refer to Fastener Caution .
2 Turn Signal Switch Bracket Retainer
3 Turn Signal Switch Bracket
