Front of Engine Compartment Components

Front of Engine Compartment Components

Items
1:  K22 Cooling Fan Control Module K22 Cooling Fan Control Module X1
2:  B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right
3:  B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
4:  B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left

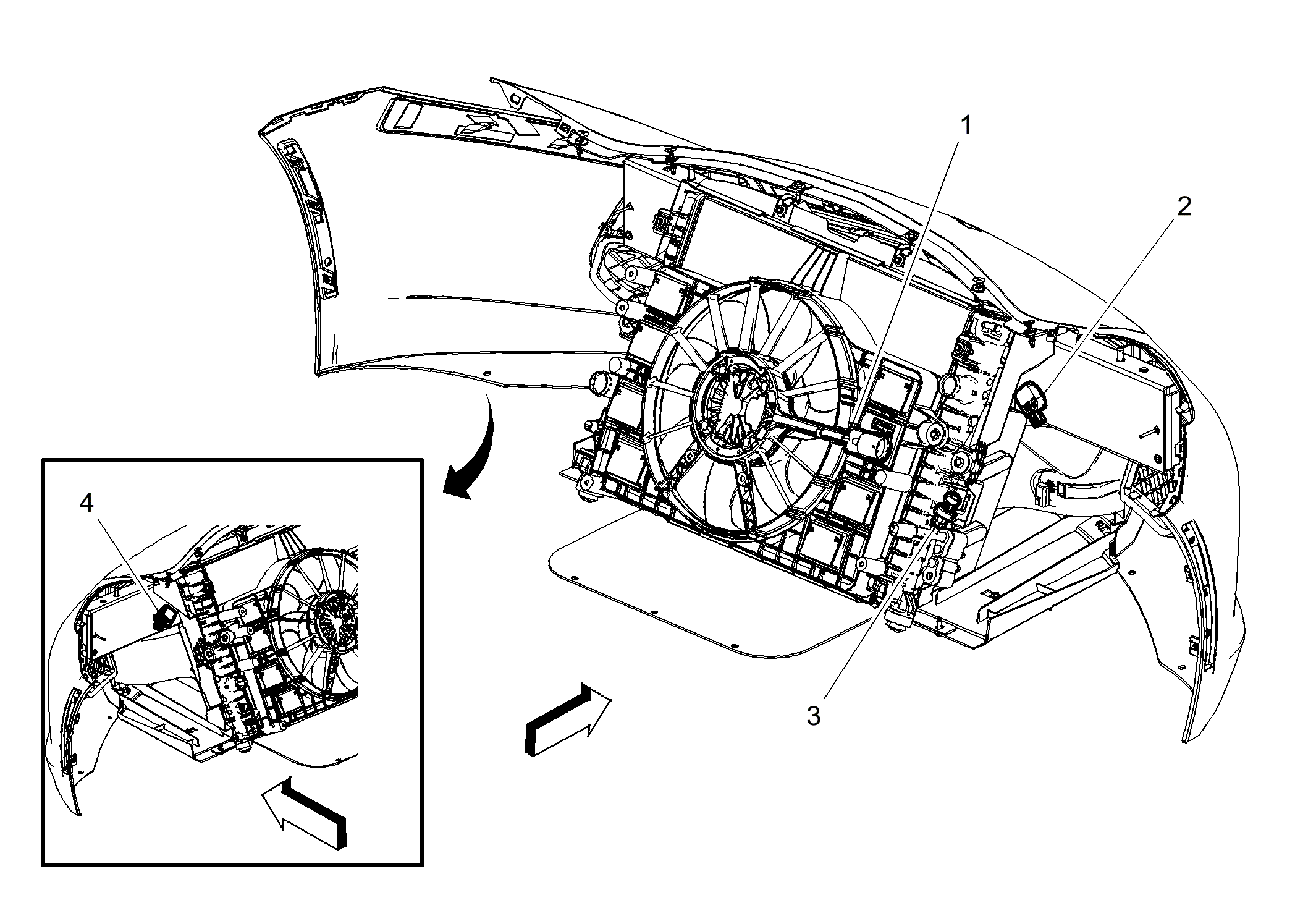

Fig 1: Front of Engine Compartment Components
GM3393063Courtesy of GENERAL MOTORS COMPANY
