Chassis High Speed GMLAN Wiring Schematics

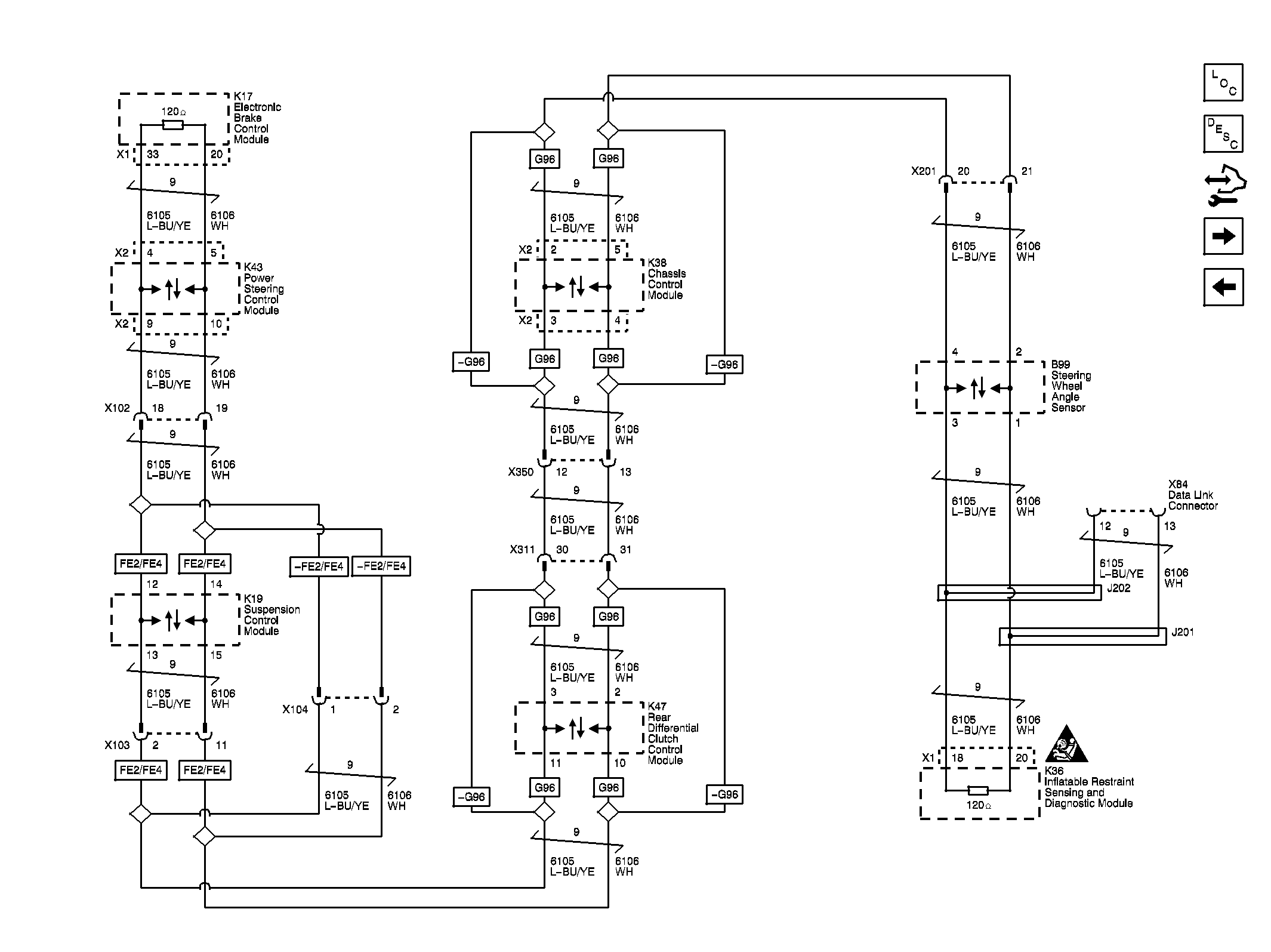

Fig 1: Chassis High Speed GMLAN Wiring Schematic

GM3396183

Courtesy of GENERAL MOTORS COMPANY
