Subsystem References (2 of 3) Wiring Schematics

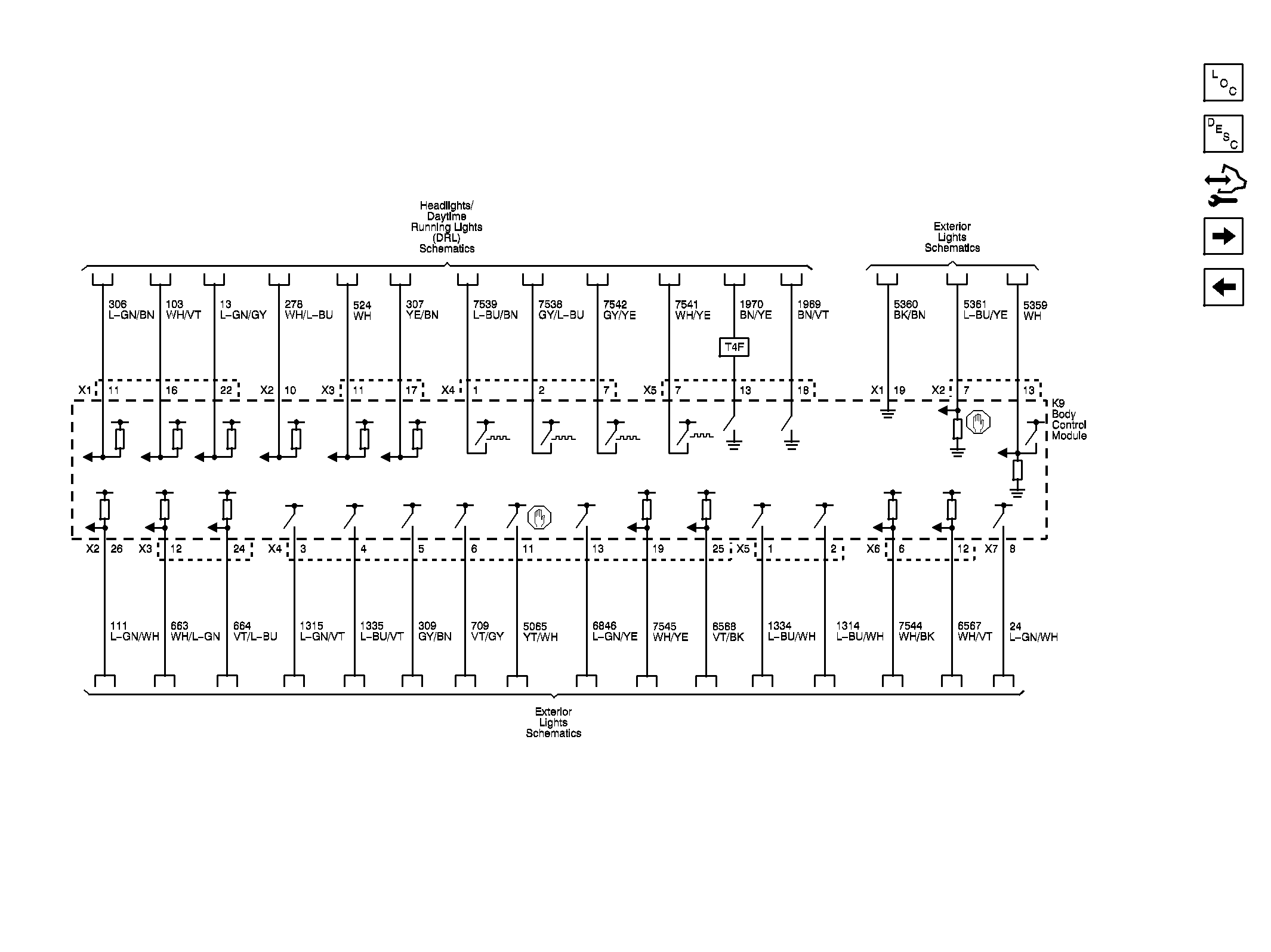

Fig 1: Subsystem References (2 of 3) Wiring Schematic

GM3396915

Courtesy of GENERAL MOTORS COMPANY
