Removal Procedure

  1. Remove the rear compartment floor panel trim. Refer to Rear Compartment Floor Panel Trim Replacement (North America) , Rear Compartment Floor Panel Trim Replacement (Export - CU9, CV5, CZ3, C4E) .
    2. Fig 1: Rear Edge Of Carpet
    GM3416402Courtesy of GENERAL MOTORS COMPANY
  2. Lift the rear edge of the carpet (1) and fold back along the dotted line, to gain access to the battery.

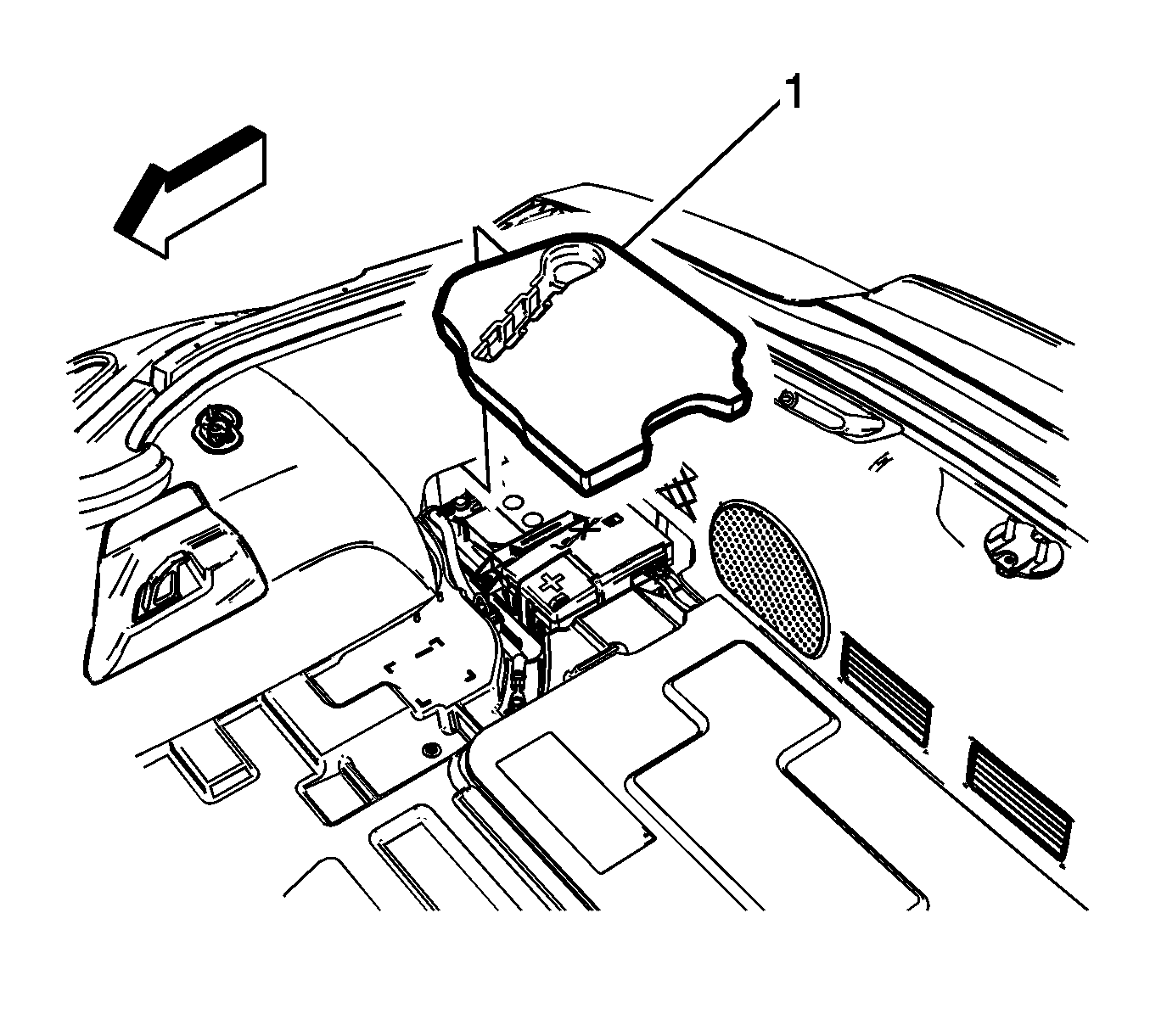

    3. Fig 2: Battery Insulator And Top Of Battery
    GM3407536Courtesy of GENERAL MOTORS COMPANY
  3. Remove the battery insulator (1) from the top of the battery.
  4. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .

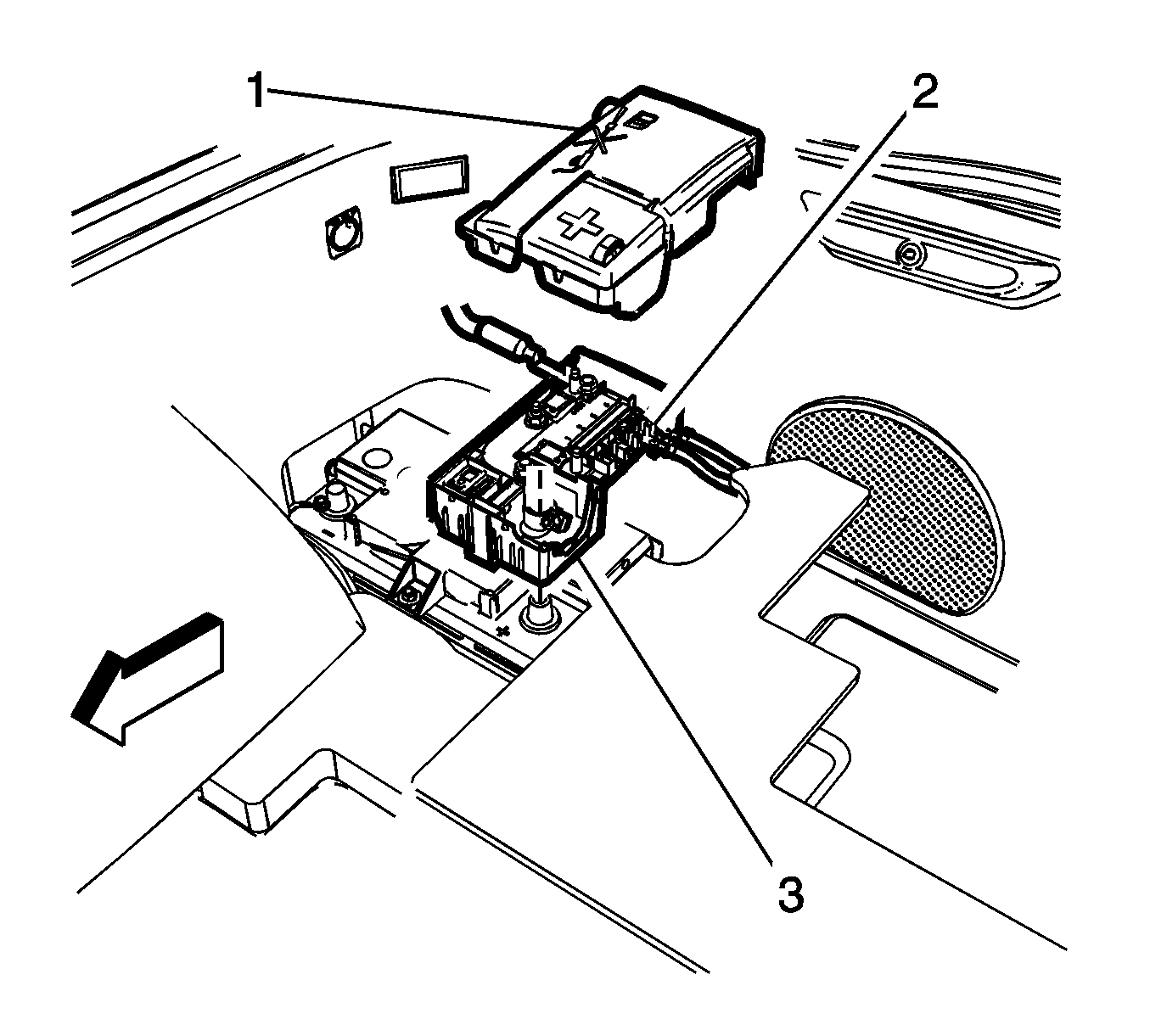

    5. Fig 3: Rear Cargo Fuse Block Cover And Loosen Battery Fuse Block Clamp Fastener
    GM3409714Courtesy of GENERAL MOTORS COMPANY
  5. Remove the rear cargo fuse block cover (1) and loosen the battery fuse block clamp fastener (2).
  6. Remove the rear cargo fuse block (3) and set aside.

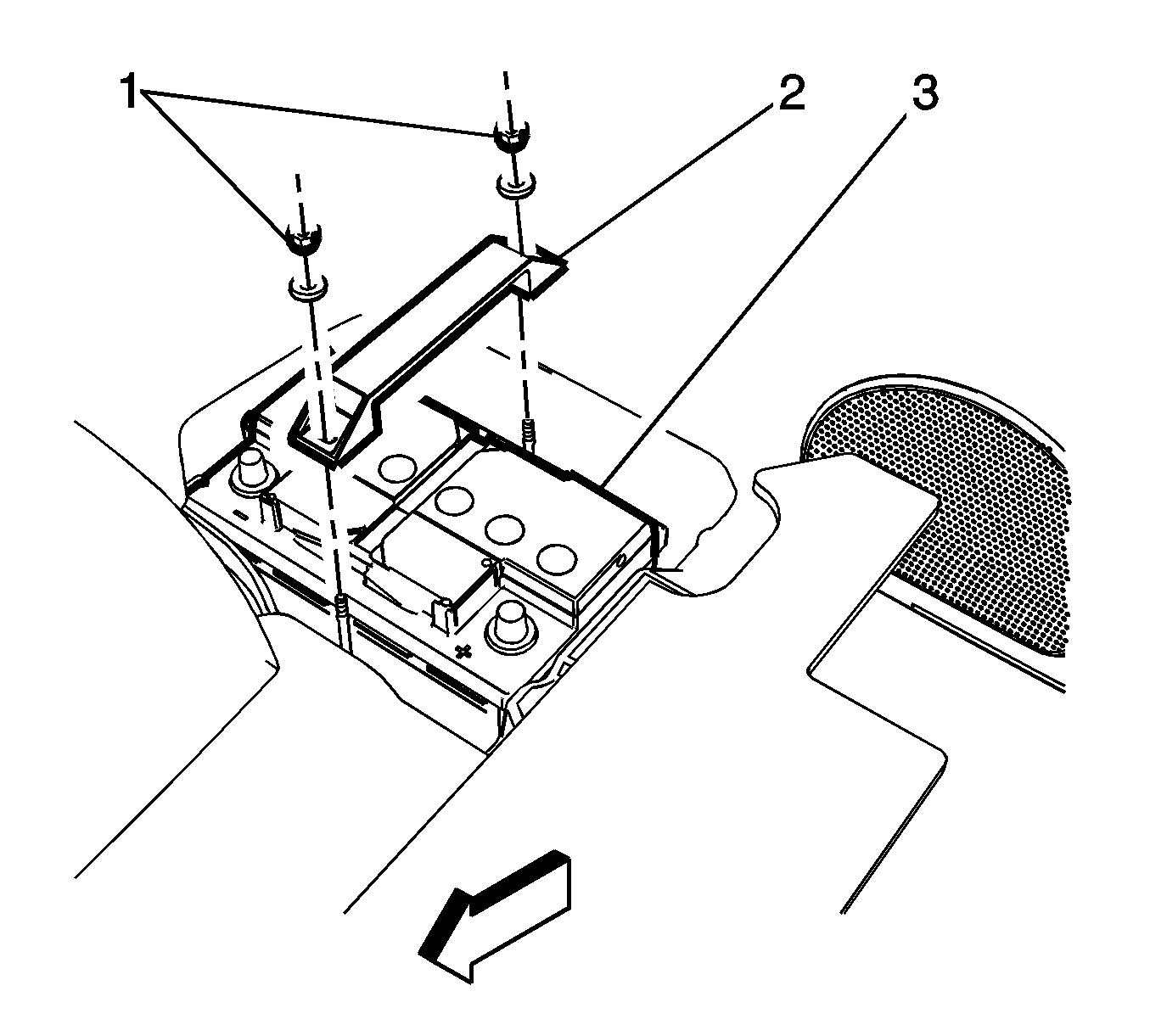

    7. Fig 4: Battery Hold Down Retainer Bracket Fasteners And Battery Hold Down Retainer Bracket
    GM3409721Courtesy of GENERAL MOTORS COMPANY
  7. Remove the battery hold down retainer bracket fasteners (1) and remove the battery hold down retainer bracket (2).

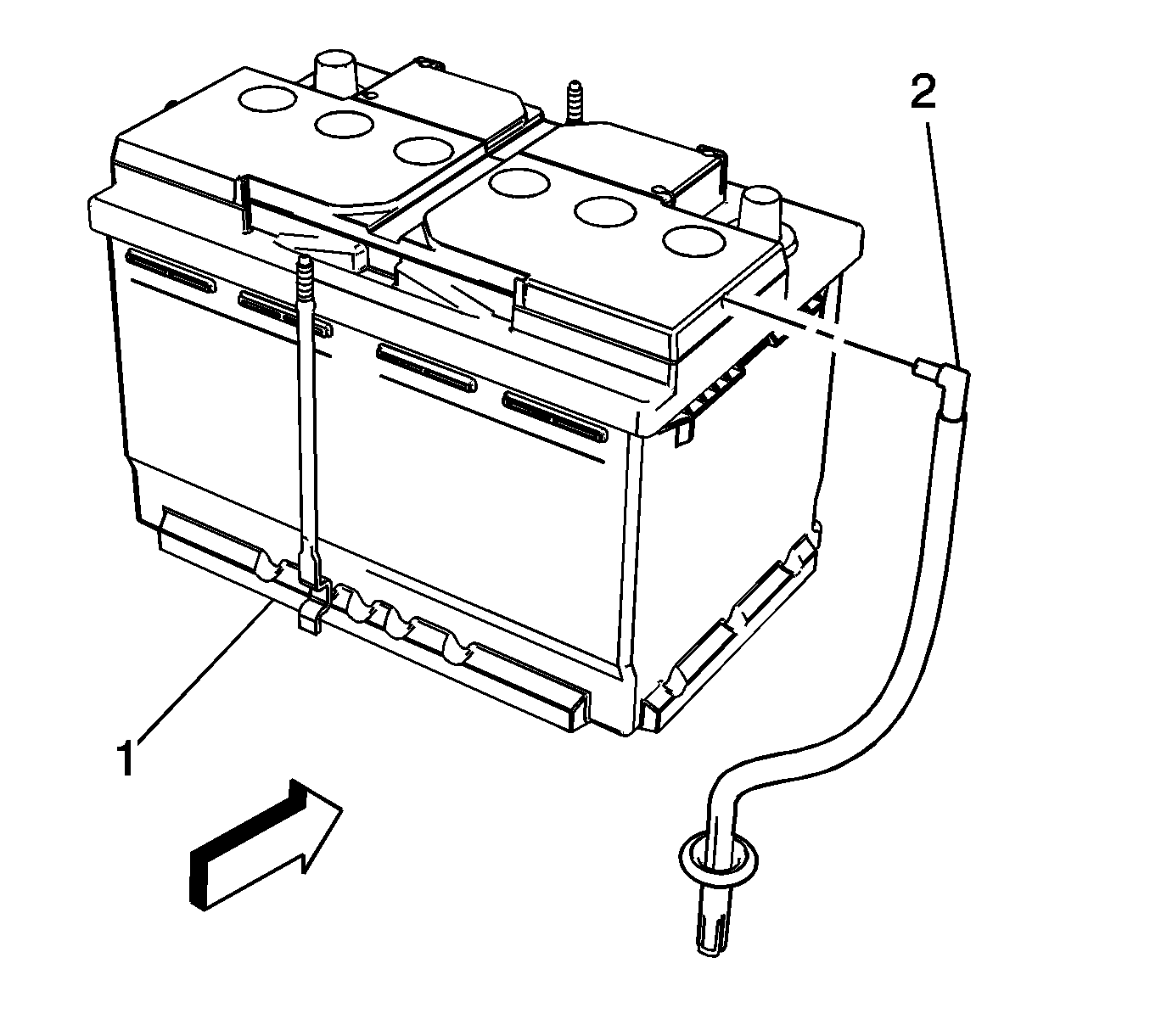

    8. Fig 5: Battery Vent Tube And Battery
    GM3412564Courtesy of GENERAL MOTORS COMPANY
  8. Disconnect the battery vent tube (2) from the battery (1).
  9. Remove the battery (1) from the rear cargo area.
