Removal Procedure

  1. Place the ignition in the OFF position.
  2. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
    3. Fig 1: BPMV Assembly Nuts
    GM3318482Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    It is not necessary to remove the BPMV assembly nuts.

  3. Loosen the 2 BPMV assembly nuts (1).
    4. Fig 2: BPMV Assembly
    GM3318484Courtesy of GENERAL MOTORS COMPANY
  4. Without disconnecting the hydraulic brake pipes, lift the BPMV assembly (1) straight upward and release the assembly from the BPMV bracket.
  5. Secure the BPMV assembly with heavy mechanics wire.
  6. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

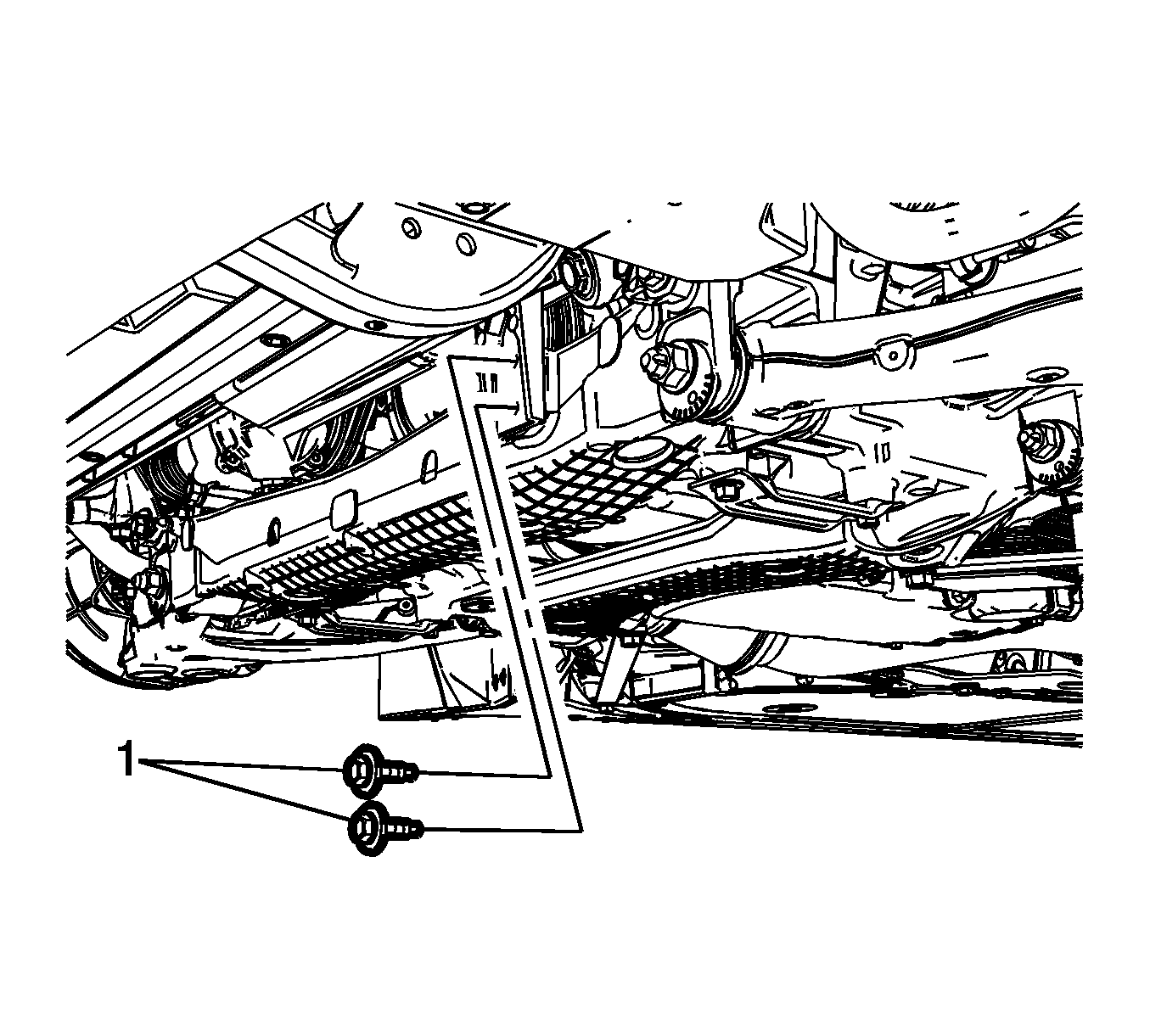

    7. Fig 3: BPMV Bracket Bolts
    GM3354929Courtesy of GENERAL MOTORS COMPANY
  7. Remove the BPMV bracket bolts (1).

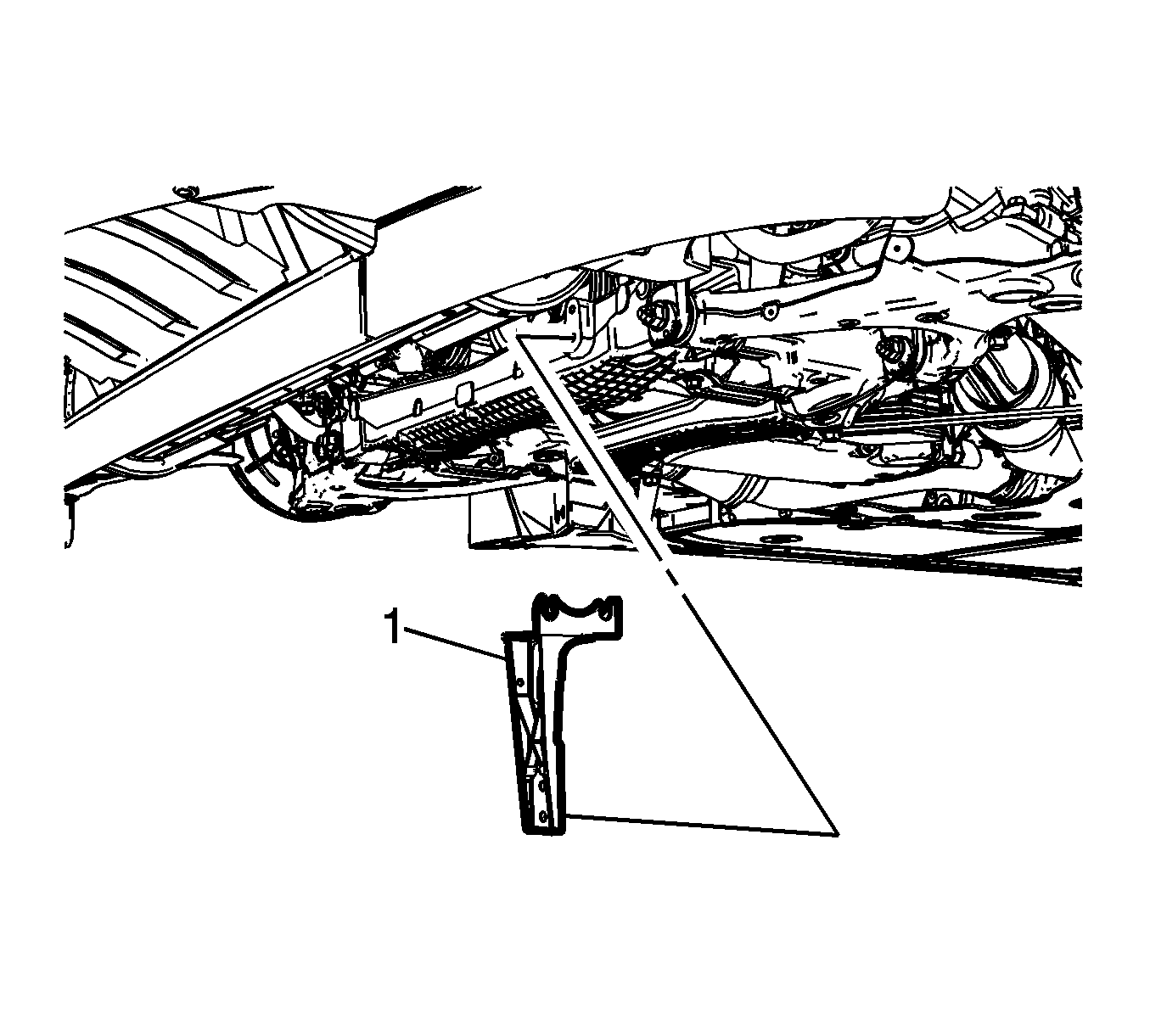

    8. Fig 4: BPMV Bracket
    GM3354935Courtesy of GENERAL MOTORS COMPANY
  8. Remove the BPMV bracket (1).
