Removal Procedure

    WARNING:

    When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.

    WARNING:

    If a window is cracked but still intact, crisscross the window with masking tape in order to reduce the risk of damage or personal injury.

    CAUTION:

    DO NOT close the lift window panel with the struts attached unless the window is installed and the window adhesive fully cured. The window adds strength and rigidity to the lift window panel. Attempting to close the lift window panel, with the struts installed, without a window or with the window adhesive not fully cured, could cause the panel to crack.

    NOTE:

    Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

  1. Open the liftgate.
  2. Remove the rear liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement .
  3. Remove the rear lift window struts. Refer to Liftgate Strut Replacement .
  4. Disconnect the electrical connectors from the liftgate window defogger bus bar.
  5. Cover the following parts to protect from broken glass, seats and carpeting.
    6. NOTE:

    Keep the cutting edge of the appropriate tool against the window. There are window locating pins, one in each upper corner of the window. Use care Not to remove or cut them off when removing the window. If the window locator pins are cut, it will be necessary to tape the window in place.

  6. This will allow the auto-adhesive to be separated from the window.
    • Leave a base of urethane adhesive on the pinchweld flange.
    • The only suitable lubrication is clean water, no oils, lubes or soaps.
    • BO-39032  Stationary Glass Removal Tool, or equivalent in order to remove the window.

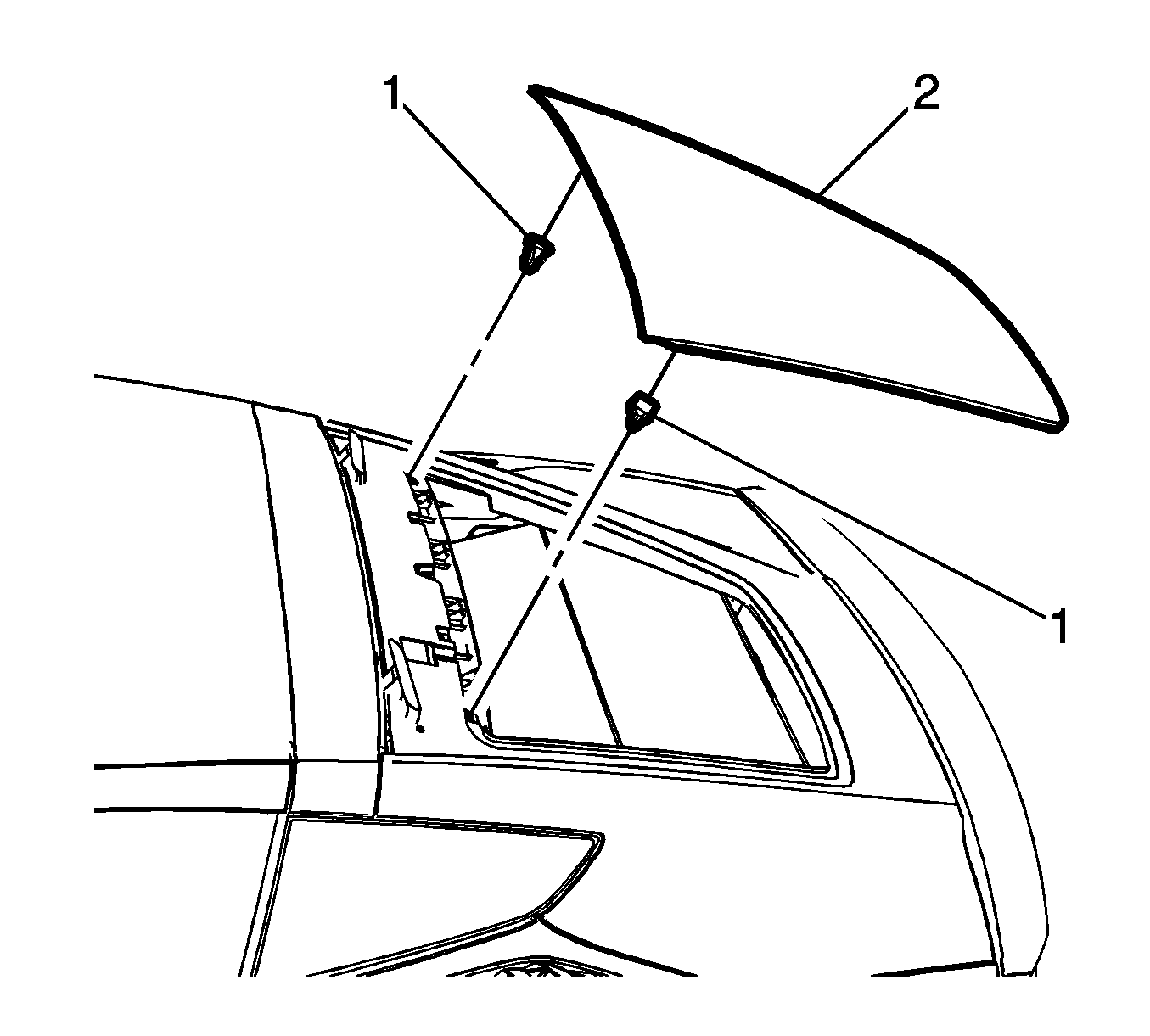

    7. Fig 1: Window And Locator Pins
    GM3289712Courtesy of GENERAL MOTORS COMPANY
  7. Remove the window (1) from the vehicle with an assistant and Do the following:
    1. After removing the window spacers and mark the location of each one. If equipped.
    2. Check that the locator pins (2) are still attached to each upper corner of the window for installing, if reusing.
    3. Remove all mounds or loose pieces of urethane adhesive from the pinchweld area.
    4. If the original window is being reused, remove all but approximately 2 mm (0.078 in) of the existing bead of urethane adhesive from the pinchweld flange surface, using a clean utility knife or razor blade scraper.
  8. Inspect for any of the following conditions in order to help prevent future breakage of the window:
    • High weld
    • Solder spots
    • Hardened sealer
    • Any other obstruction or irregularity in the pinchweld flange
    9. NOTE:

    If corrosion of the pinchweld flange is present or if sheet metal repairs or replacements are required, the pinchweld flange must be refinished in order to restore the bonding area strength. If paint repairs are required, mask the flange bonding area prior to applying the color coat in order to provide a clean primer only surface. Materials such as BASF DE15®, DuPont 2610®, Sherwin-Williams PSE 4600 and NP70® and Martin-Semour 5120 and 5130® PPG DP90LF SPIES/HECKER 3688/8590 - 3688/5150 - 4070/5090 STANDOX 11158/13320 - 14653/14980 products are approved for this application.

  9. After repairing the opening as indicated, perform the following steps:
    1. Remove all traces of broken glass from the outer cowl panel, seats, floor and defroster ducts.
    2. Clean around the edge of the inside surface of the window with a 50/50 mixture of isopropyl alcohol and water by volume on a dampened lint free cloth.
