Front Side Door Window Replacement

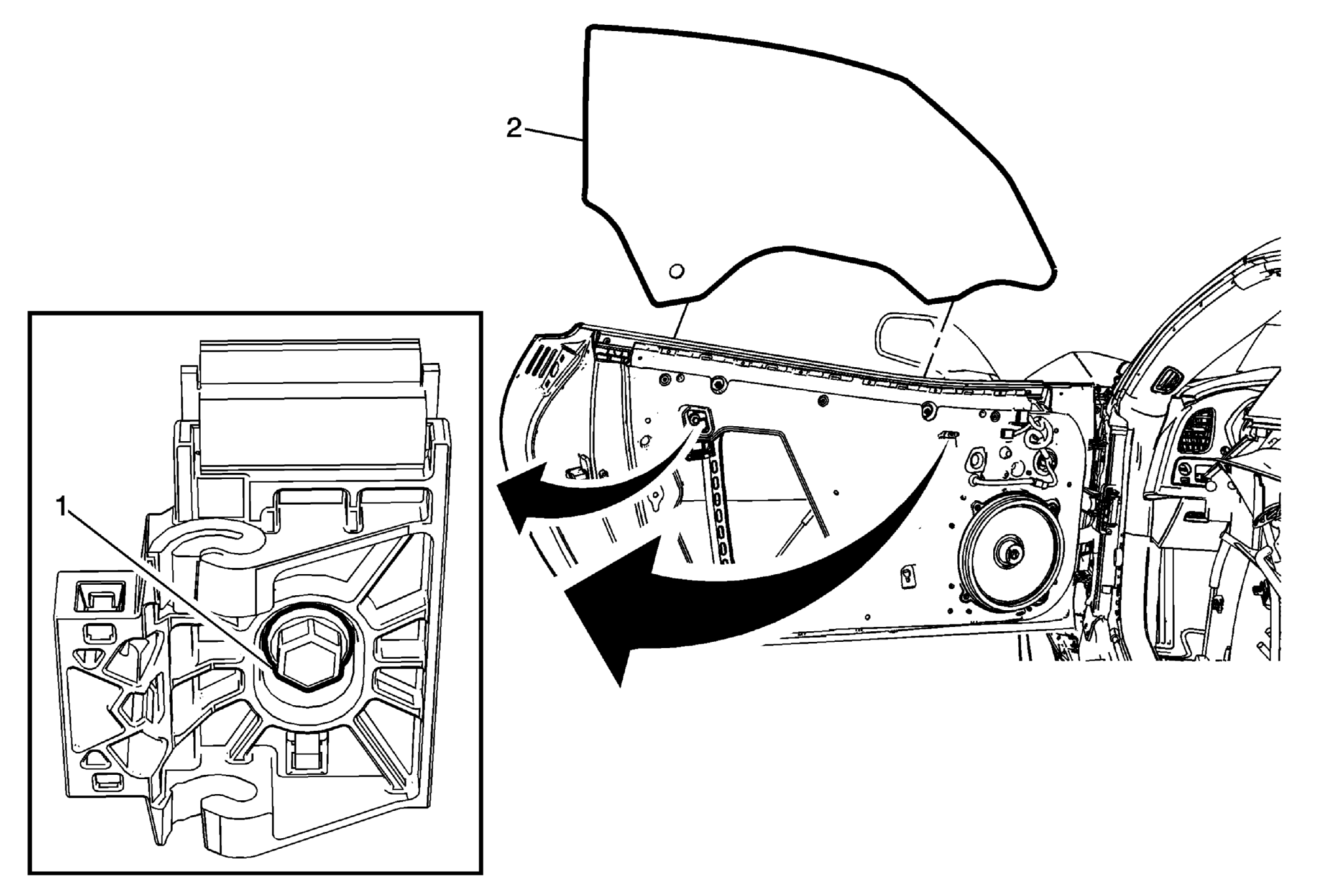

Fig 1: Front Side Door Window
GM3287274Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Replacement

Callout Component Name
WARNING:

Refer to Glass and Sheet Metal Handling Warning .

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedures

  1. Remove the front side door inner sealing strip. Refer to Front Side Door Window Inner Sealing Strip Replacement .
  2. Remove the front side door water deflector.
1 Front Side Door Window Regulator Guide Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Use masking tape, tape off the outer door frame to prevent scratching.
  2. Lower the window to align the guide bolts with the access holes in the inner door panel.
  3. Loosen the bolts that attach the window to the window regulator guides.

Tighten
11 N.m (97 lb in)
2 Front Side Door Window

Procedure

  1. Do not operate the regulator motor without supporting the window. Ensure that the window remains in the guide when operating the regulator motor.
  2. Carefully grasp and tilt the window as you guide the window up and forward.
NOTE:

Inspect the window for proper operation before installing the door trim.
