Front Compartment Fuse Block Replacement

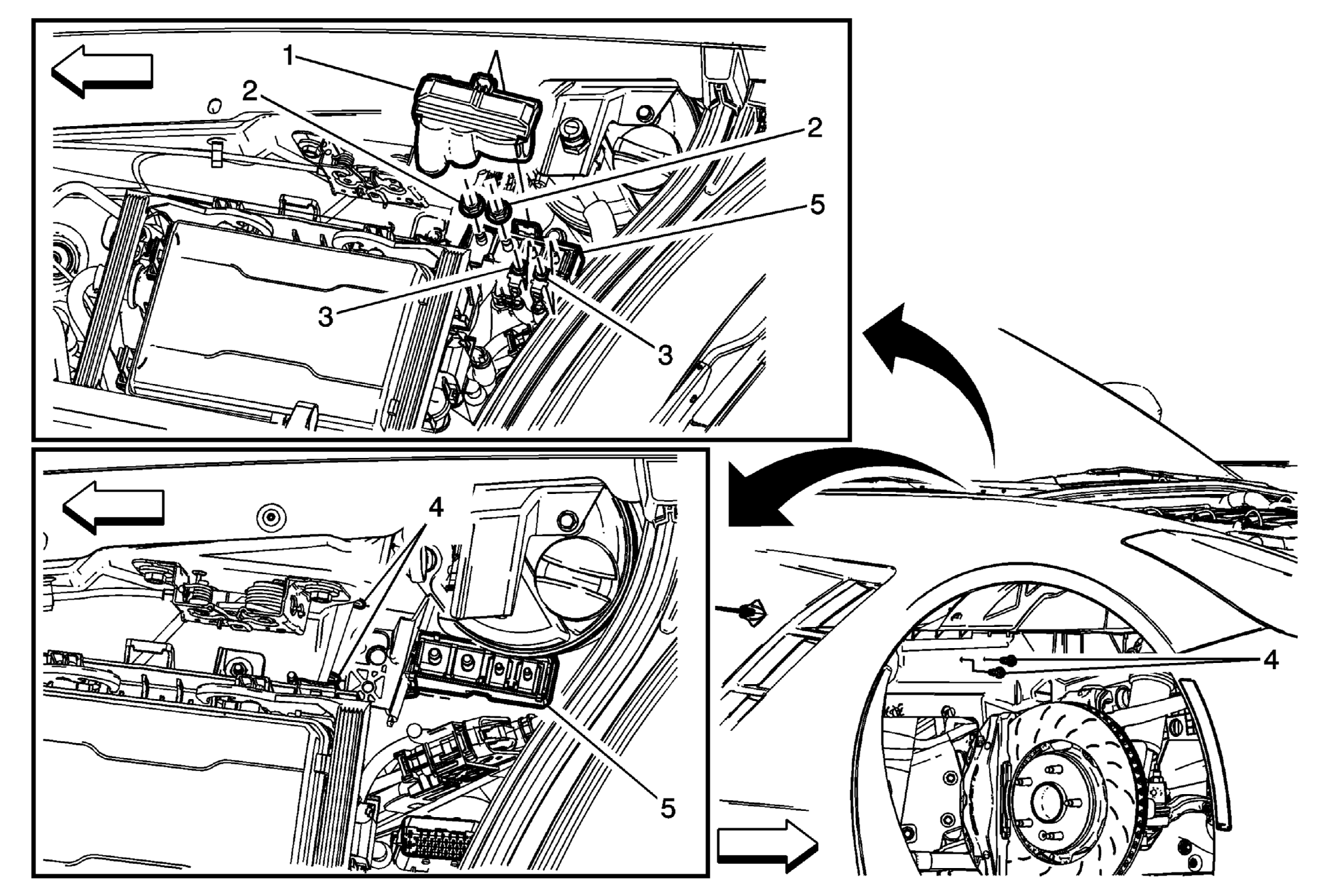

Fig 1: Front Compartment Fuse Block

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Replacement . Remove the right hand front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement
1	Front Compartment Fuse Block Cover Procedure Carefully release the retainer tab.
2	Starter and Generator Cable Nut (Qty 2) CAUTION: Refer to Fastener Caution . Procedure Reposition the starter and generator cables. Tighten 22 (16 lb ft)
3	Forward Lamp Harness Terminal Nut (Qty: 2) Procedure Reposition the forward lamp harness. Tighten 4.7 (42 lb in)
4	Front Compartment Fuse Block Bolt (Qty 2) Tighten 2.5 (22 lb in) NOTE: Access the bolts through the wheel opening.
5	Front Compartment Fuse Block
