Keyless Entry System (ATH) Wiring Schematics

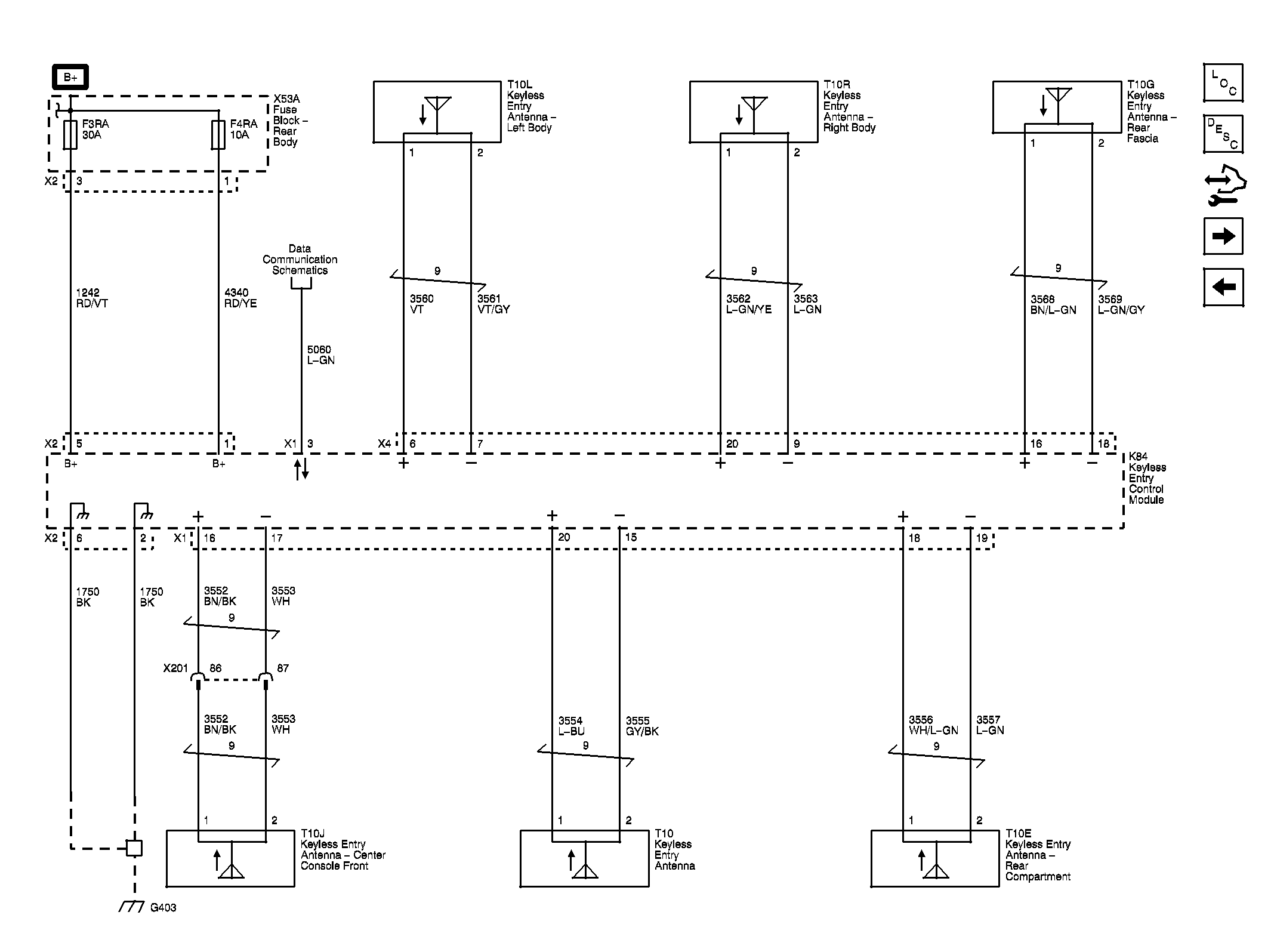

Fig 1: Keyless Entry (ATH) Wiring Schematics

GM3414814

Courtesy of GENERAL MOTORS COMPANY
