Ignition Lock Key Transmitter Antenna Replacement - Rear Compartment

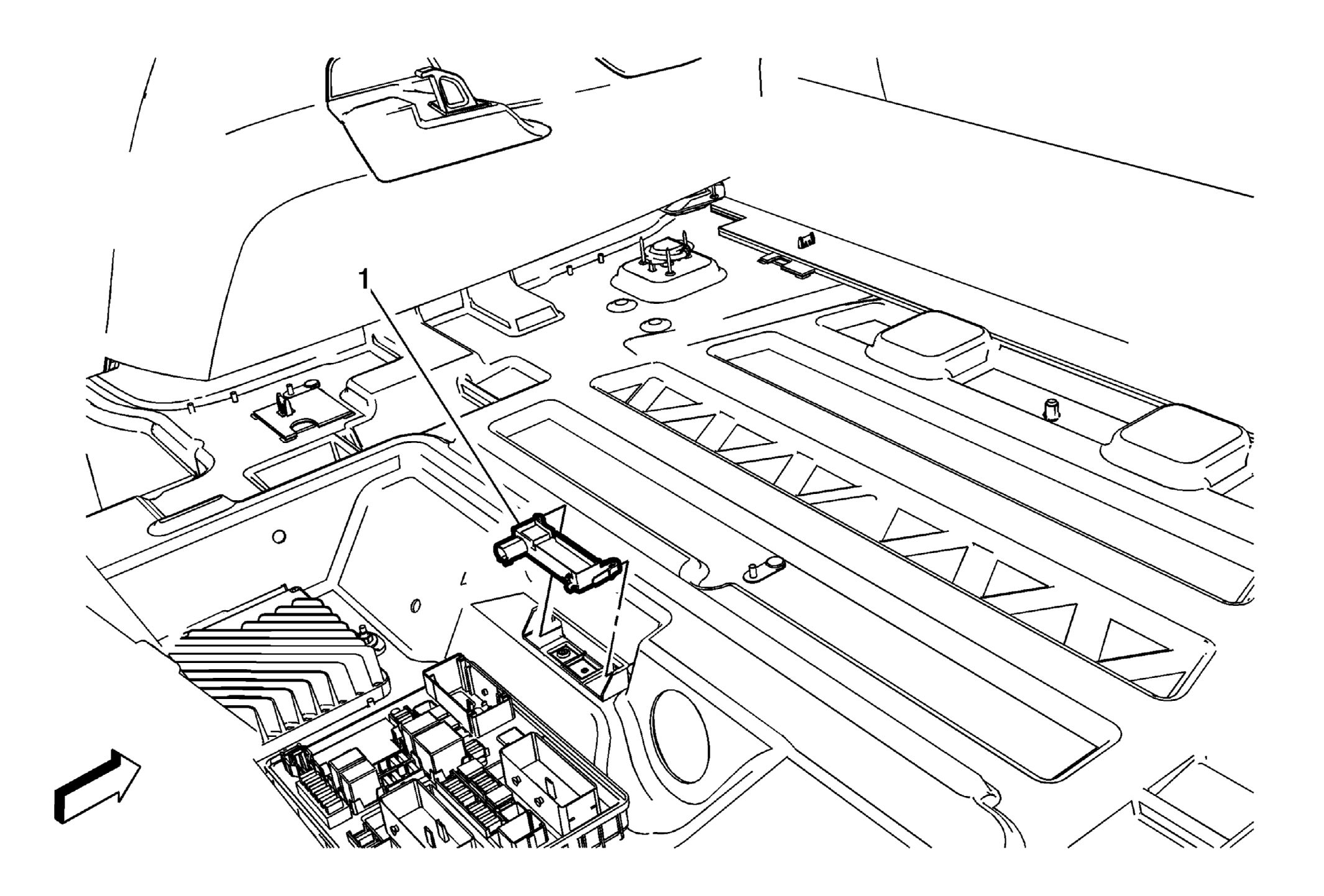

Fig 1: Ignition Lock Key Transmitter Antenna - Rear Compartment

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment floor panel trim. Refer to Rear Compartment Floor Panel Trim Replacement (North America) , Rear Compartment Floor Panel Trim Replacement (Export - CU9, CV5, CZ3, C4E) . Reposition the rear compartment floor stowage compartment cover to access the antenna.
1	Ignition Lock Key Transmitter Antenna Procedures Disconnect the electrical connector. Depress the tabs and remove the ignition lock key transmitter antenna from the bracket.

Callout

Component Name

Preliminary Procedures

Remove the rear compartment floor panel trim. Refer to Rear Compartment Floor Panel Trim Replacement (North America) , Rear Compartment Floor Panel Trim Replacement (Export - CU9, CV5, CZ3, C4E) .
Reposition the rear compartment floor stowage compartment cover to access the antenna.

Ignition Lock Key Transmitter Antenna

Procedures

Disconnect the electrical connector.
Depress the tabs and remove the ignition lock key transmitter antenna from the bracket.
