Ignition Lock Key Transmitter Antenna Replacement - Floor Console

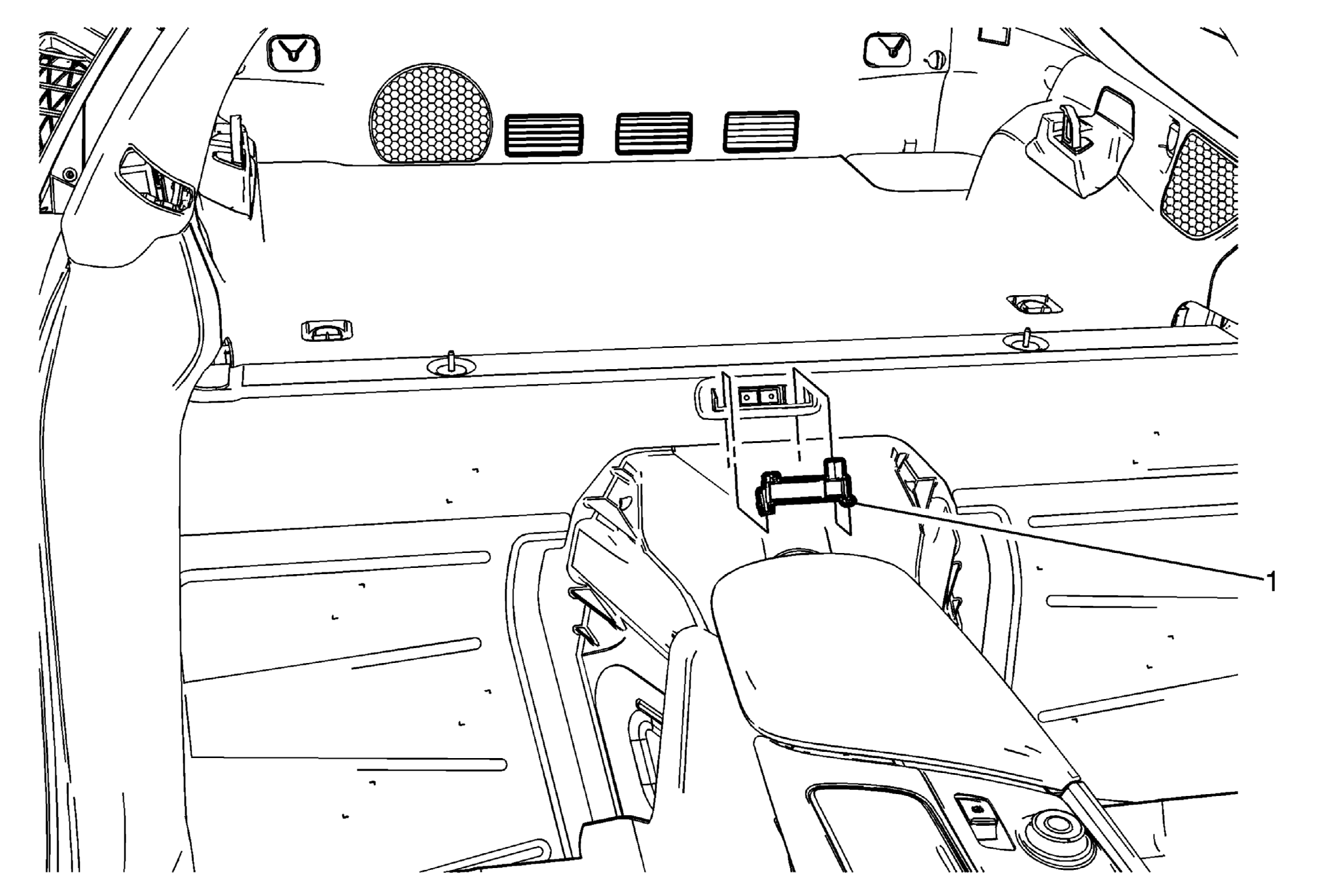

Fig 1: Ignition Lock Key Transmitter Antenna - Floor Console

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front seat back body panel carpet. Refer to Front Seat Back Body Panel Carpet Replacement .
1	Ignition Lock Key Transmitter Antenna Procedures Disconnect the electrical connector. Depress the tabs and remove the ignition lock key transmitter antenna from the bracket.

Callout

Component Name

Preliminary Procedure
Remove the front seat back body panel carpet. Refer to Front Seat Back Body Panel Carpet Replacement .

Ignition Lock Key Transmitter Antenna

Procedures

Disconnect the electrical connector.
Depress the tabs and remove the ignition lock key transmitter antenna from the bracket.
