Radio Replacement

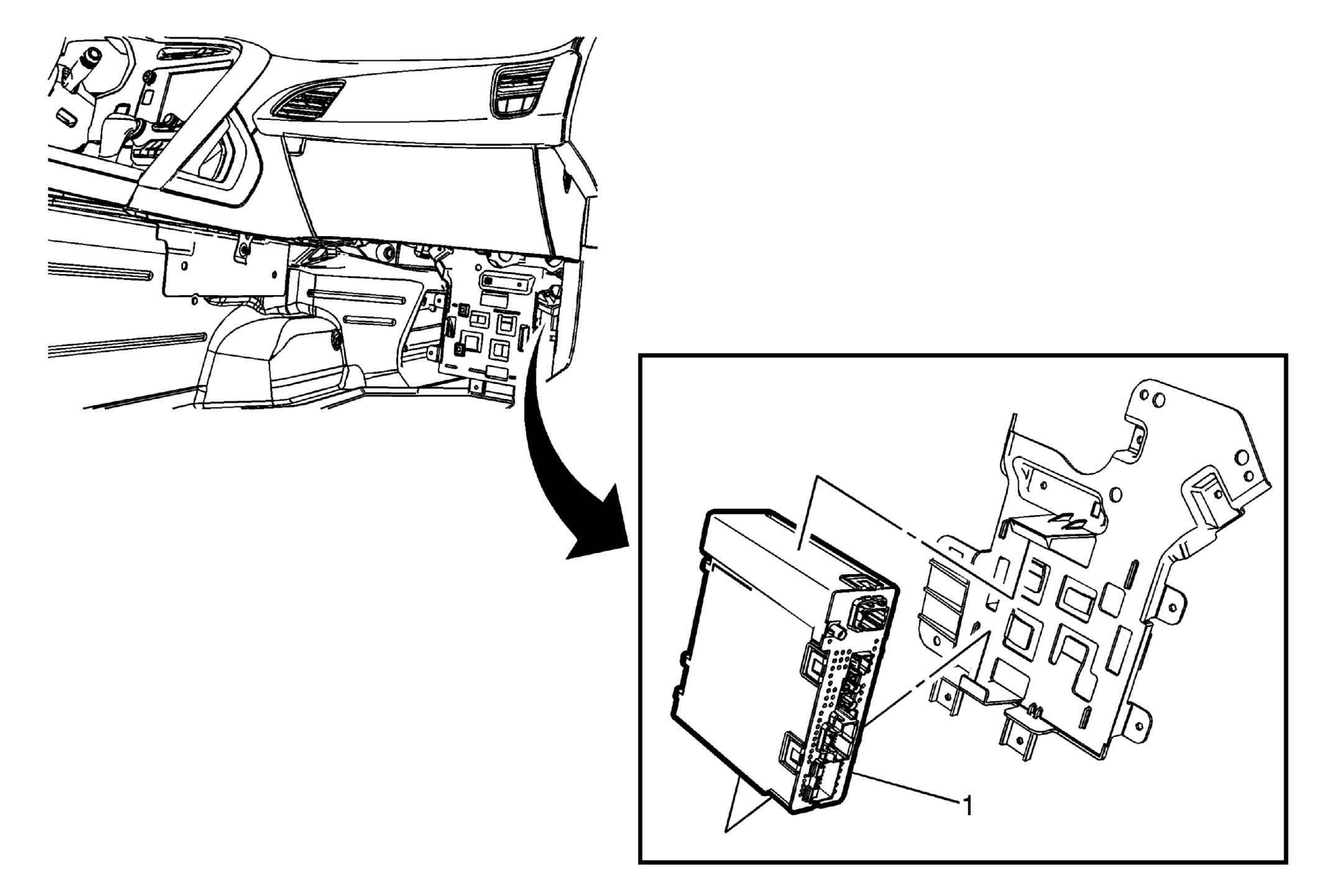

Fig 1: Radio

Courtesy of GENERAL MOTORS COMPANY

Radio Replacement

Callout	Component Name
Preliminary Procedure Remove the body control module bracket. Refer to Body Control Module Bracket Replacement .
1	Radio Procedure Disconnect the electrical connections. Release the module from the body control module bracket tabs. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure
Remove the body control module bracket. Refer to Body Control Module Bracket Replacement .

Radio

Procedure
