Vehicle Performance Camera Replacement

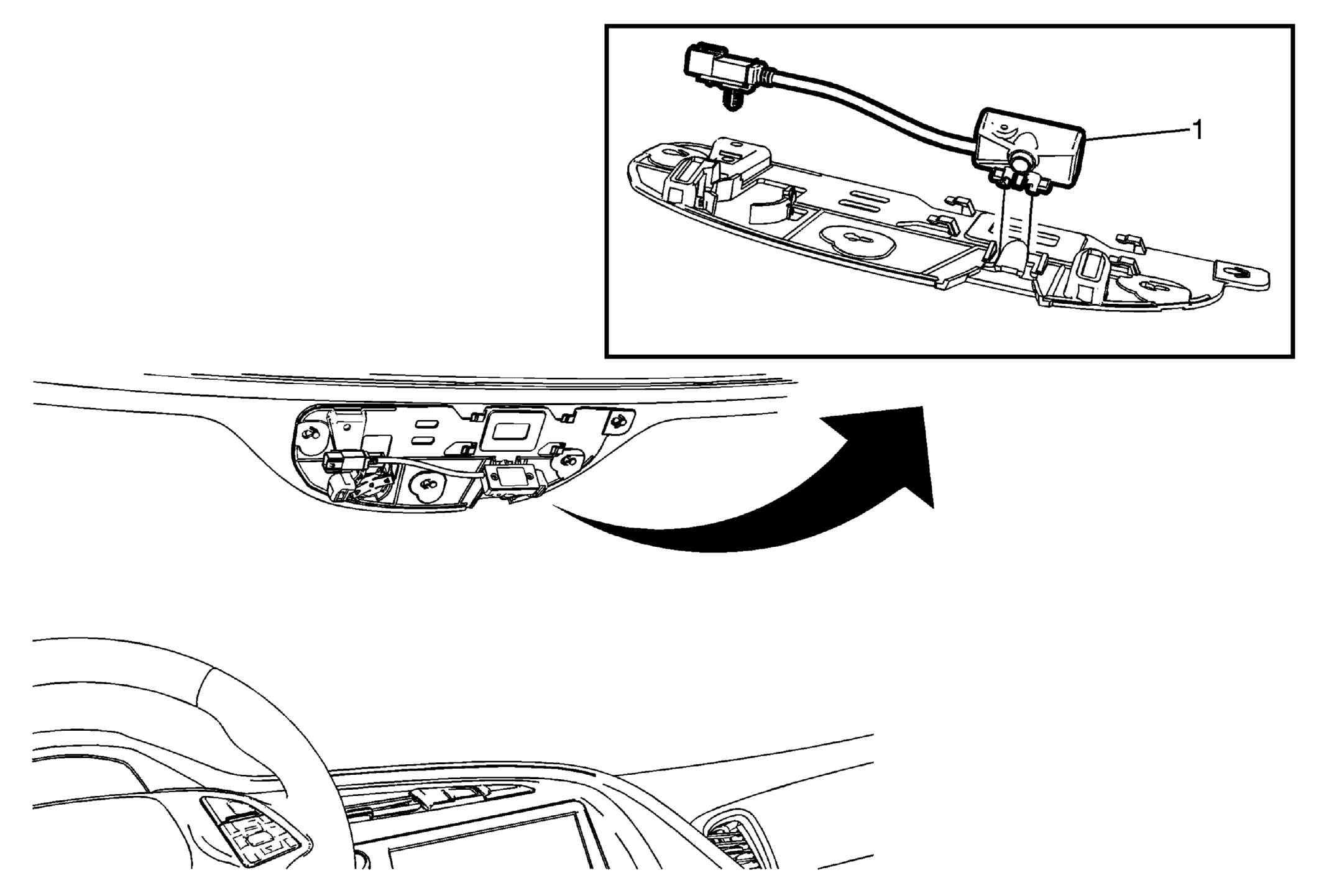

Fig 1: Vehicle Performance Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield upper garnish molding. Refer to Windshield Upper Garnish Molding Replacement .
1	Vehicle Performance Camera Procedure Slide camera upward on bracket to release. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the windshield upper garnish molding. Refer to Windshield Upper Garnish Molding Replacement .

Vehicle Performance Camera

Procedure
